WLC60CW340FAR Banner Light Bars

Banner WLC60CW340FAR WLC60 Work Light; Length: 340 mm; Flush Mount; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Cascadable; Window: Polycarbonate; 2 m (6.5 ft) Integral Cable; Rear exit
Banner

Part#:WLC60CW340FAR

Manufacturer:Banner

Alt. Part#:86883

Product Lifecycle:Active

Get a quick Quote!

WLC60 Work Light; Length: 340 mm; Flush Mount; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Cascadable; Window: Polycarbonate; 2 m (6.5 ft) Integral Cable; Rear exit

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC60CW340FAR Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight1179.3392 g
  • Country Of OriginUS
  • Product Size (mm)
    60
  • Animation Option 1
    Solid On
  • Max Op. Temperature (°C)
    70
  • Feature: Audible
    No
  • Mounting Thread
    No Thread
  • Supply Voltage
    12-30 V dc
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Lumens Color 1
    1300
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Primary Window Material
    Polycarbonate Clear
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Connection
    Cable
  • Illuminated Length (LxWxH mm)
    254.6
  • Number of Colors / Segments
    1
  • Number of Input Pins/Conductors
    4
  • Storage Temp (°C)
    -40 to 70
  • Feature: Chemical Resistant
    Yes
  • Color Technology
    Standard LED
  • Power Source
    DC
  • Physical Dimensions (LxWxH or DxH mm)
    367.0 x 88.0 x 52.3
  • Modbus RTU
    No
  • Illumination
    Yes
  • Dimming Option
    High-Low-Off
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Color Option 1
    White
  • Housing Style
    Linear Strip
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Feature: Cascade
    Yes
  • Feature: Washdown Rated
    Yes
  • Wireless
    No
  • Feature: Quick Disconnect
    No
  • IO Link
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLC60CW340FAR Description

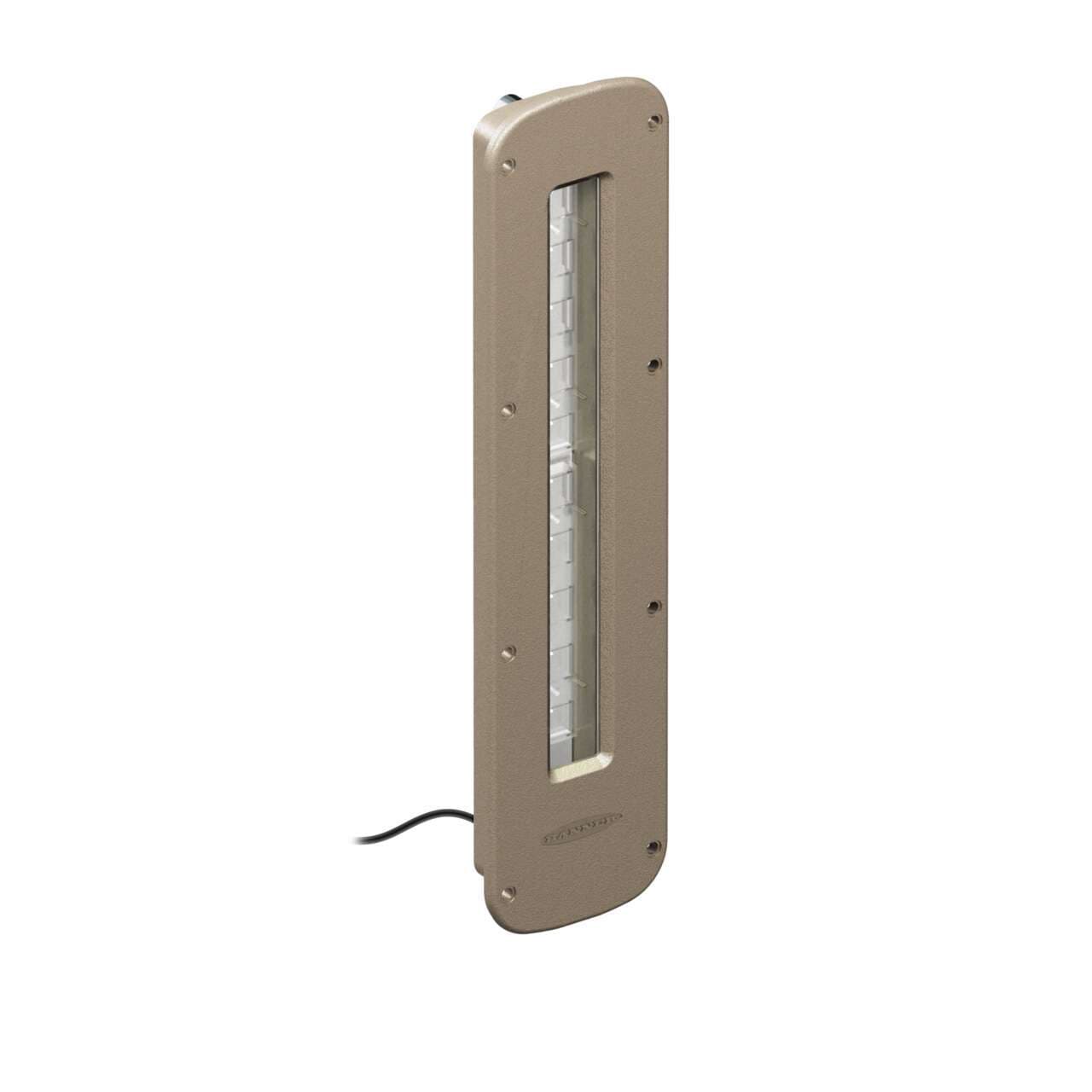

Banner Engineering WLC60CW340FAR is a cascadable industrial heavy-duty LED area light designed for task lighting applications. It features a linear strip lighting design with a polycarbonate window and a rear connection, providing 1-color Cool White (W) LED illumination. The light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and offers a luminous flux of 1300 lumens. The dimensions of this product are L340mm x W24.5mm, and it is constructed with a clear polycarbonate (PC) window and a nickel-plated aluminum housing. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for connectivity. This task light is designed for flush mounting and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control. The WLC60CW340FAR is rated for a high degree of protection with IP67, IP68, IP68G, and IP69K certifications, ensuring its suitability for challenging industrial environments.

Related documents WLC60CW340FAR Specs

WLC60CW340FAR 173718.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
