T30RW3FF600Q1 Banner Proximity Sensors
Part#:T30RW3FF600Q1
Manufacturer:Banner
Alt. Part#:34571
Product Lifecycle:Active
Get a quick Quote!

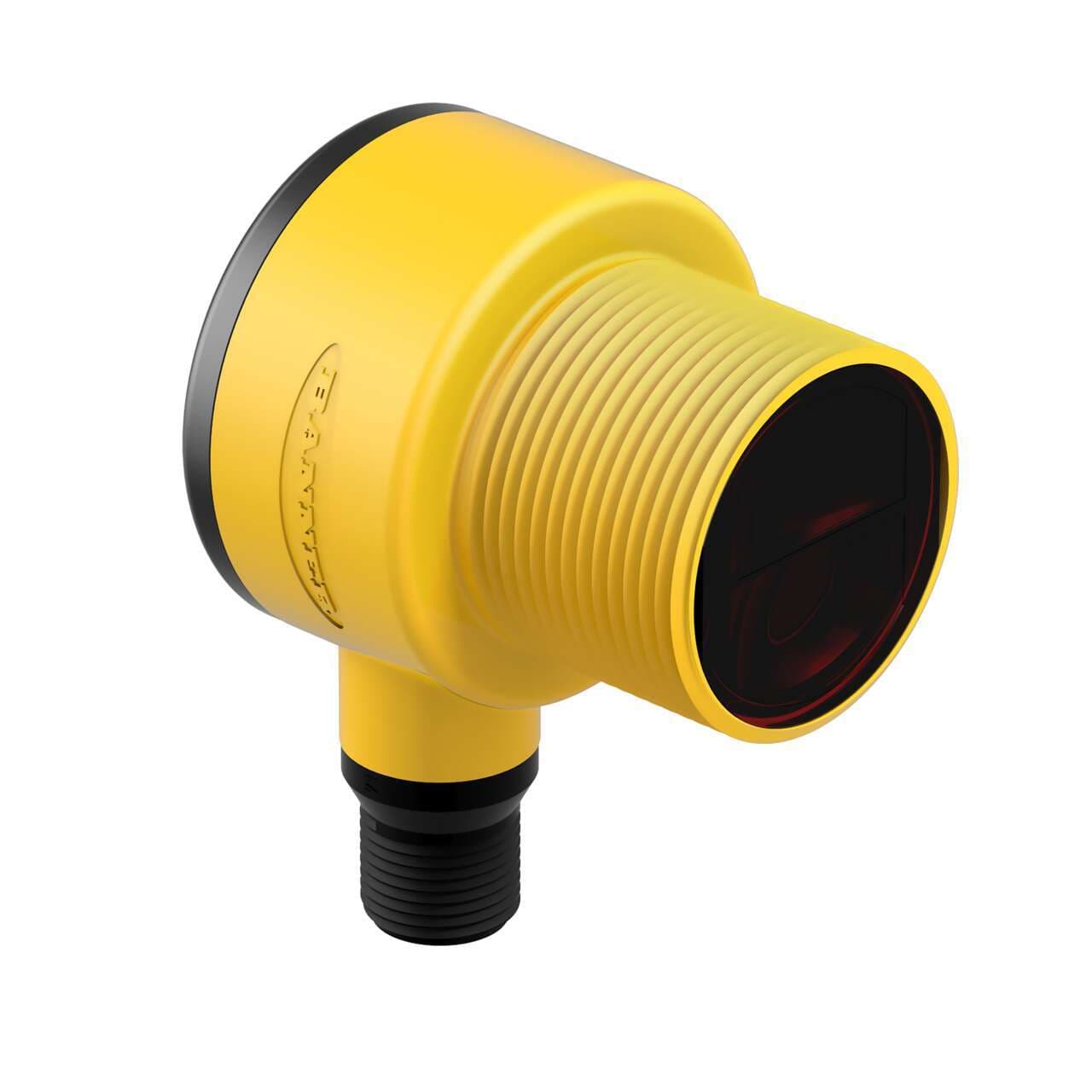

EZ-BEAM T30 Series: Fixed Field; Range: 600 mm; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 4-pin Micro Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T30RW3FF600Q1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginUS
- Product series / family name EZ-BEAM series
- Design background suppression system
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Material thermoplastic housing
- Primary brand Banner Engineering
- Sub-range name T30 series
- Wavelength 880 nm
- Operating mode Dark-ON
- Order code / Manufacturer SKU 34571
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Cylindrical threaded/barrel
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Ambient air temperature for operation -40...+70 °C
- Main function Sensor (Photo-electric)
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Sensing distance 600mm
- Response time 16ms / 0.016 s
- Light Color Infrared (IR)
- Thread size M30
- Degree of protection IP69K NEMA 6P
- Compliant with standard(s) cULus cCSAus CE
- Max Sensing Distance (mm) 600
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Mode (General) Proximity
- Input/Output Solid-State AC Switch
- Primary Housing Material Thermoplastic
- Outputs Solid-State AC Switch
- Power Supply/Supply Voltage 20-250 V ac
- Housing Style Barrel
- Sensing Beam Infrared LED
- Power AC
- Connection Integral QD
- Max Op. Temp. (°C) 70
- Operation Dark Operate
- Quick Disconnect Type 1/2 in. (Micro)
- Special Feature: Remote Teach No
- Min Op. Temp. (°C) -40
- NEMA Rating NEMA 6P
- Special Feature: Water Detection No
- Output response time (ms) 16
- Delay at Power-up (ms) 100
- Repeatability (µs) 4000
- Number of Pins 4
- Lens Material Acrylic
- Barrel Diameter (mm) 30
- Max Op. Relative Humidity [%] 90% @ 50°C
- IP Rating IP69
- Indicator LEDs
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
- Feature: Timing (Hold/Delay) No
- Feature: Ecolab Certified Yes
- DeviceNet No
- Feature: Washdown Rated Yes
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
T30RW3FF600Q1 Description
Banner Engineering T30RW3FF600Q1 is a fixed-field photo-electric sensor from the T30 series, designed with a background suppression system. This sensor features a thermoplastic housing and is pre-equipped with a 4-pin 1/2" micro connector for connectivity. It operates on a supply voltage range of 20Vac-250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. The sensor can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP69K NEMA 6P. Its M30 cylindrical threaded/barrel shape is designed for easy installation. The T30RW3FF600Q1 provides one digital output (Solid-state AC output; SPST contact type) and has a sensing distance of 600mm. It utilizes infrared light with a wavelength of 880 nm and has a response time of 16ms (0.016 s). The operating mode is Dark-ON, and the thread size for mounting is M30.
Related documents T30RW3FF600Q1 Specs
