T30RGX9PQ Banner Electronic Components
Part#:T30RGX9PQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

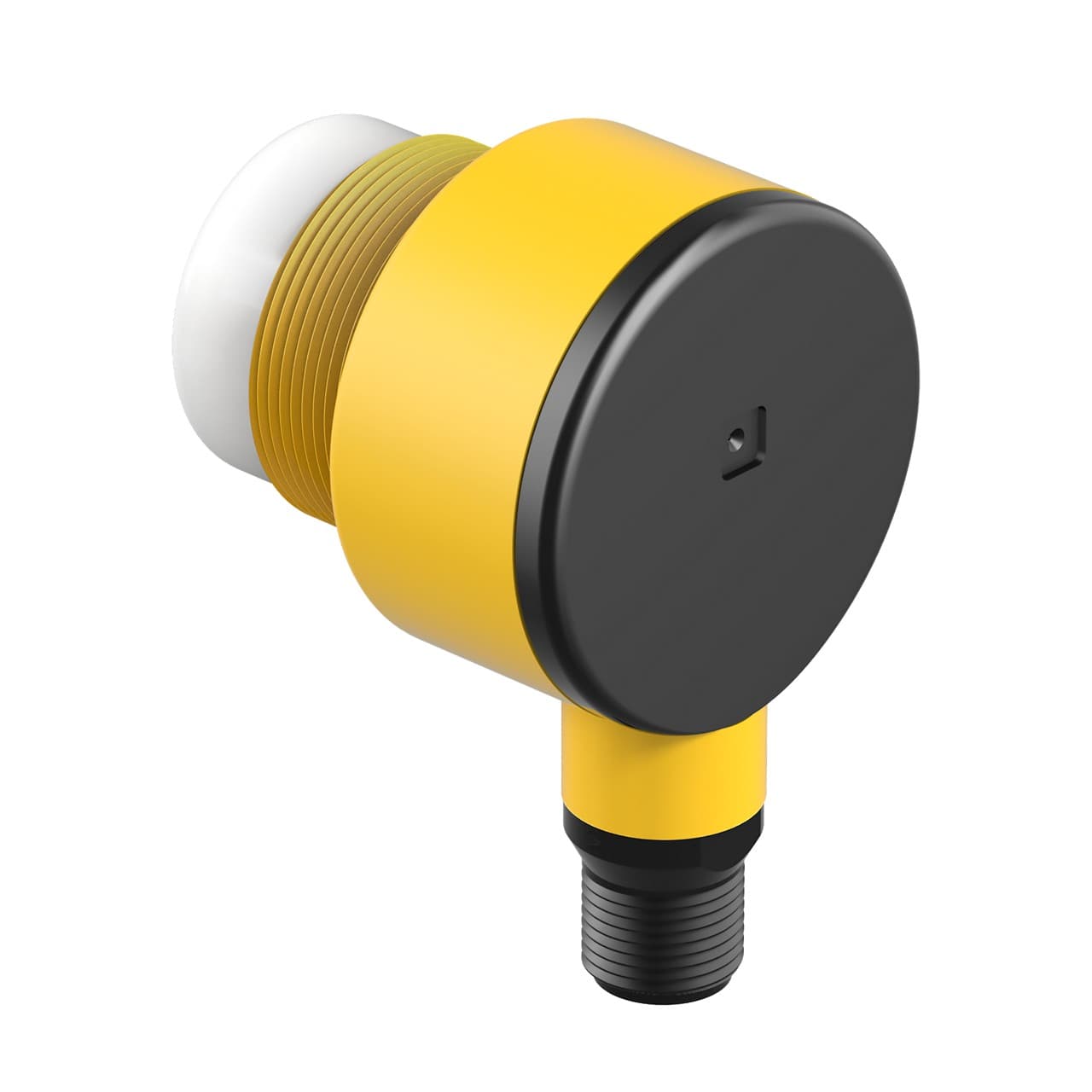

T30RGX9PQ EZ-LIGHT 4-pin RED/GRN/X PNP PICK-TO-LIGHT
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the T30RGX9PQ Banner price in the box on the right side or send a quick quote.
Product Details
- Mounting Thread M30 x 1.5
- Supply Voltage 10-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 63.7 x 40.0 x 45.0
- Application: Photoelectric Sensors Yes
- Indication Yes
- Power Source DC
- Primary Housing Material Thermoplastic Polyester
- Power DC
- Housing Style T-Style
- Number of Colors / Segments 2
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Max Current Color (mA) 40
- Max Input Response Time (ms) 1
- Primary Housing Color Yellow
- Feature: Quick Disconnect Yes
- Wireless No
- Color Technology Standard LED
- Connection Integral QD
- Feature: Audible No
- Multi-Color Device Single Color On
- Modbus RTU No
- Product Size (mm) 30
- Color Option 1 Red
- Color Option 2 Green
- Input Type PNP
- Max Op. Temperature (°C) 50
- Primary Window Material Thermoplastic Diffused
