SLO30VB6YQPMA13DO Banner Retroreflective Sensors
Part#:SLO30VB6YQPMA13DO
Manufacturer:Banner
Alt. Part#:74197
Product Lifecycle:Active
Get a quick Quote!
SLO30 VB6YQPMA13DO 700 MA 4-PIN 6 in PUR MALE M12
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLO30VB6YQPMA13DO Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginCN
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLO30VB6YQPMA13DO Description

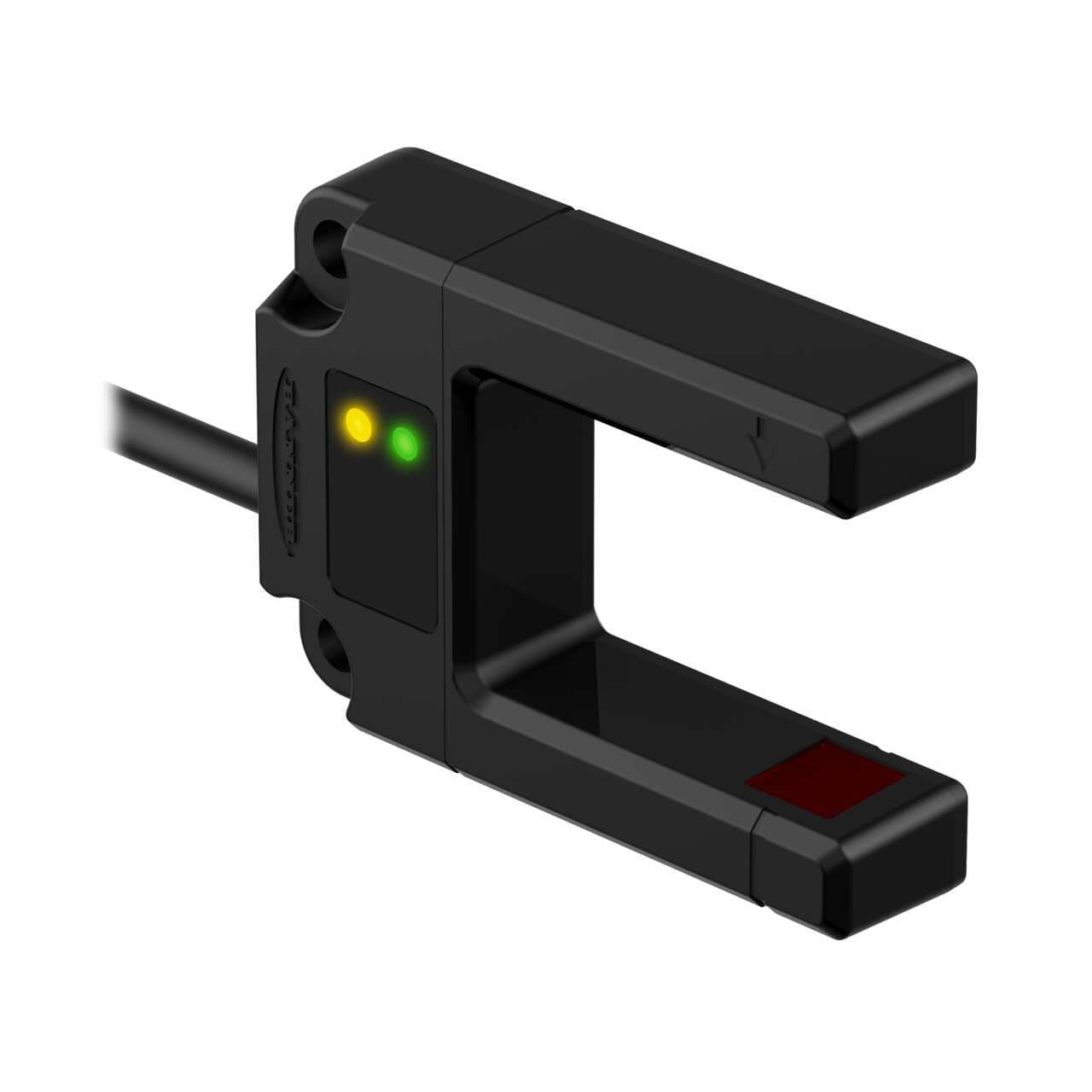

Banner Engineering SLO30VB6YQPMA13DO is a photo-electric slot / optical fork sensor from the SLO series, designed with a thermoplastic housing and an acrylic lens. It features a polyurethane (PUR) cable sheath and is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environments. The sensor has a slot (U-shaped) shape with a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. It provides one digital output (PNP/NPN transistor), has a sensing distance of 30mm, and uses infrared (IR) light with a wavelength of 890 nm. The response time of the sensor is 0.3ms / 0.0003 s, and it operates in a Dark-ON mode.
Related documents SLO30VB6YQPMA13DO Specs
1-year warranty
