SLO30VB6YQ Banner Retroreflective Sensors
Part#:SLO30VB6YQ
Manufacturer:Banner
Alt. Part#:59772
Product Lifecycle:Active
Get a quick Quote!
SLO30 Series: Slot Sensor w/o Sensitivity Adjustme; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLO30VB6YQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight72.57472 g
- Country Of OriginCN
- Primary brand Banner Engineering
- Light Color Infrared (IR)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -40...+70 °C
- Net Width (mm) (passageway) 30.2 mm52 mm
- Sensing distance 30mm
- Operating mode Light-ON Dark-ON
- Degree of protection IP67 NEMA 6
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 890 nm
- Response time 0.3ms / 0.0003 s
- Sub-range name SLO series
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Functions Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
- Shape Slot
- Order code / Manufacturer SKU 59772
- Compliant with standard(s) cULus Listed CE
- Net Depth (mm) 18.8 mm
- Net Height (mm) 72 mm
- Housing Style Slot
- Repeatability (µs) 75
- Max Op. Temperature (°C) 70
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Indicator LEDs
- Power DC
- Output response time (ms) 0.3
- NEMA Rating NEMA 6
- Slot Depth/Array Length (mm) 45
- Adjustments N/A
- Quick Disconnect Type M12 (Euro)
- Slot Overall Depth (mm) 72
- IP Rating IP67
- Max Op. Relative Humidity (%) 90% @ 50°C
- Max Sensing Range (mm) 30
- Power Supply/Supply Voltage 10-30 V dc
- Minimum Object Detection [mm] 2
- Minimum Object Detection (mm) 2
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Connection Integral QD
- Number of Pins 5
- Min Op. Temperature (°C) -40
- Outputs Bipolar (NPN & PNP)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLO30VB6YQ Description

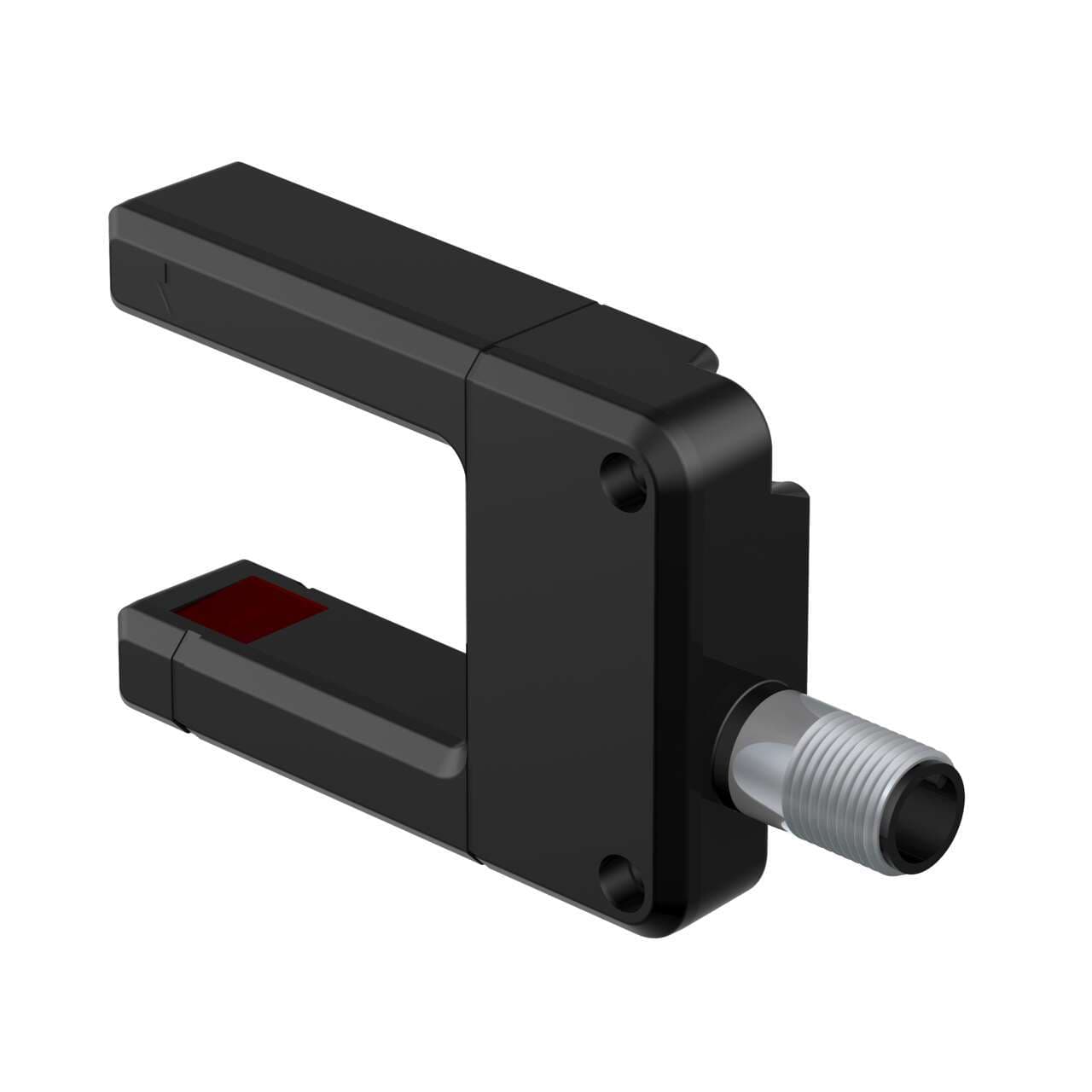

Banner Engineering SLO30VB6YQ is a photo-electric slot / optical fork sensor within the SLO series, featuring a thermoplastic housing and an acrylic lens. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. This sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6. The sensor has a U-shaped (slot) form factor, with a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. It features one digital output (PNP/NPN transistor), a sensing distance of 30mm, and utilizes infrared (IR) light with a wavelength of 890 nm. The response time of the sensor is 0.3ms / 0.0003 s, and it supports both Light-ON and Dark-ON operating modes.
