SLO30VB6Q Banner Retroreflective Sensors
Part#:SLO30VB6Q
Manufacturer:Banner
Alt. Part#:59769
Product Lifecycle:Active
Get a quick Quote!
SLO30 Series: Slot Sensor w/o Sensitivity Adjustme; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLO30VB6Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight72.57472 g
- Country Of OriginCN
- Sub-range name SLO series
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Functions Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state)
- Shape Slot
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 59769
- Net Width (mm) (passageway) 30.2 mm52 mm
- Primary brand Banner Engineering
- Sensing distance 30mm
- Degree of protection IP67 NEMA 6
- Net Depth (mm) 18.8 mm
- Wavelength 890 nm
- Light Color Infrared (IR)
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cULus Listed CE
- Net Height (mm) 72 mm
- Main function Sensor (Photo-electric)
- Material thermoplastic housing Acrylic lns.
- Response time 1ms / 0.001 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Ambient air temperature for operation -40...+70 °C
- Power DC
- Slot Overall Depth (mm) 72
- Operation Light/Dark Operate
- Max Op. Relative Humidity (%) 90% @ 50°C
- Connection Integral QD
- NEMA Rating NEMA 6
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Outputs Bipolar (NPN & PNP)
- Indicator LEDs
- Minimum Object Detection [mm] 2
- Slot Depth/Array Length (mm) 45
- Special Feature: Remote Teach No
- Min Op. Temperature (°C) -40
- Housing Style Slot
- Lens Material Acrylic
- Max Sensing Range (mm) 30
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temperature (°C) 70
- Quick Disconnect Type M12 (Euro)
- Adjustments N/A
- Primary Housing Material Thermoplastic
- Number of Pins 5
- IP Rating IP67
- Repeatability (µs) 250
- Output response time (ms) 1
- Minimum Object Detection (mm) 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLO30VB6Q Description

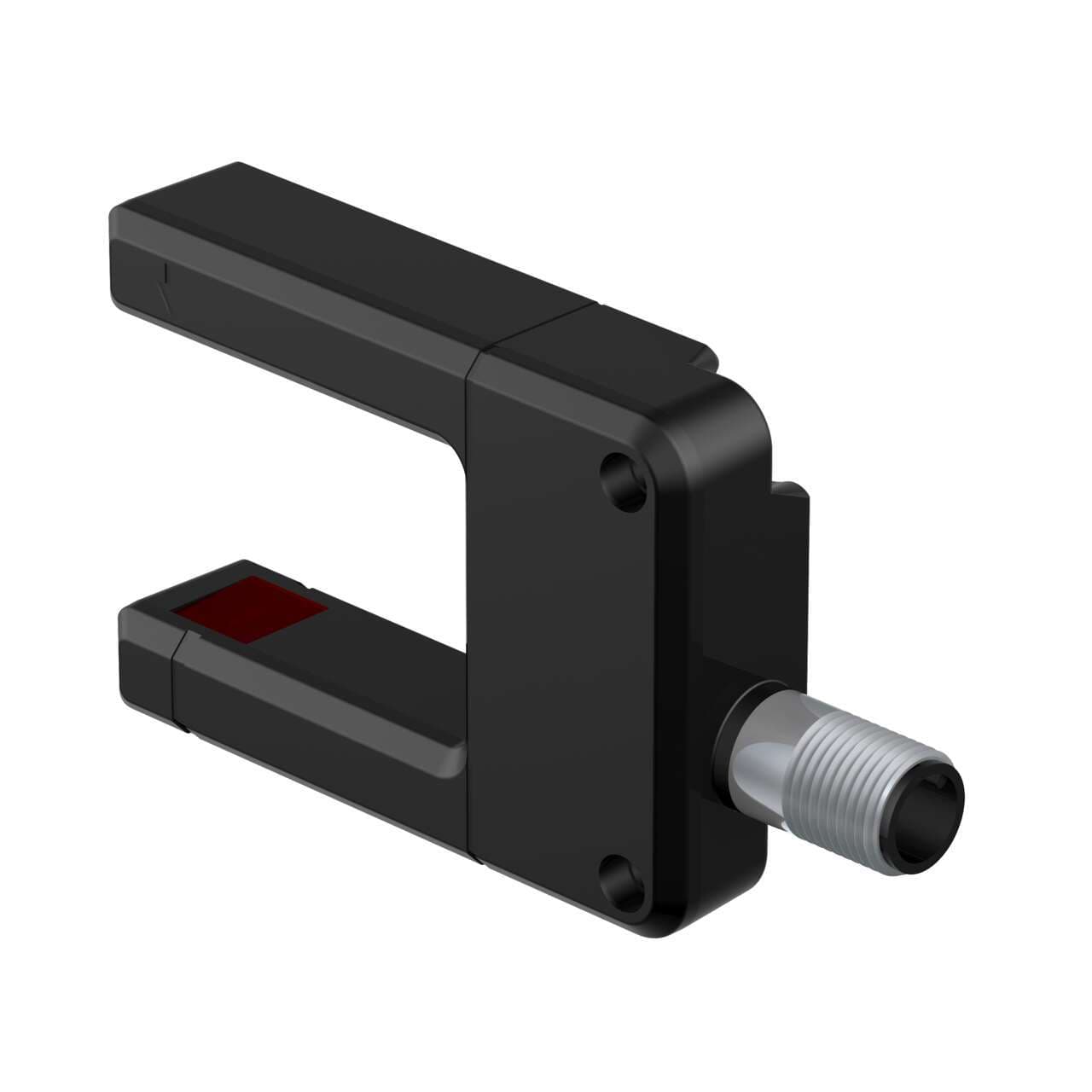

Banner Engineering SLO30VB6Q is a photo-electric slot / optical fork sensor from the SLO series, designed with a thermoplastic housing and an acrylic lens. It features a pre-equipped 5-pin Euro-style M12 connector for connectivity. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It is protected to IP67 and NEMA 6 standards, ensuring durability in various environmental conditions. The sensor has a U-shaped slot with a passageway width of 30.2 mm and an overall width of 52 mm, a height of 72 mm, and a depth of 19 mm. It offers a sensing distance of 30mm and utilizes infrared light with a wavelength of 890 nm for detection. The SLO30VB6Q provides a quick response time of 1ms / 0.001 s and includes 1 x digital output (PNP/NPN transistor), supporting both Light-ON and Dark-ON operating modes.
