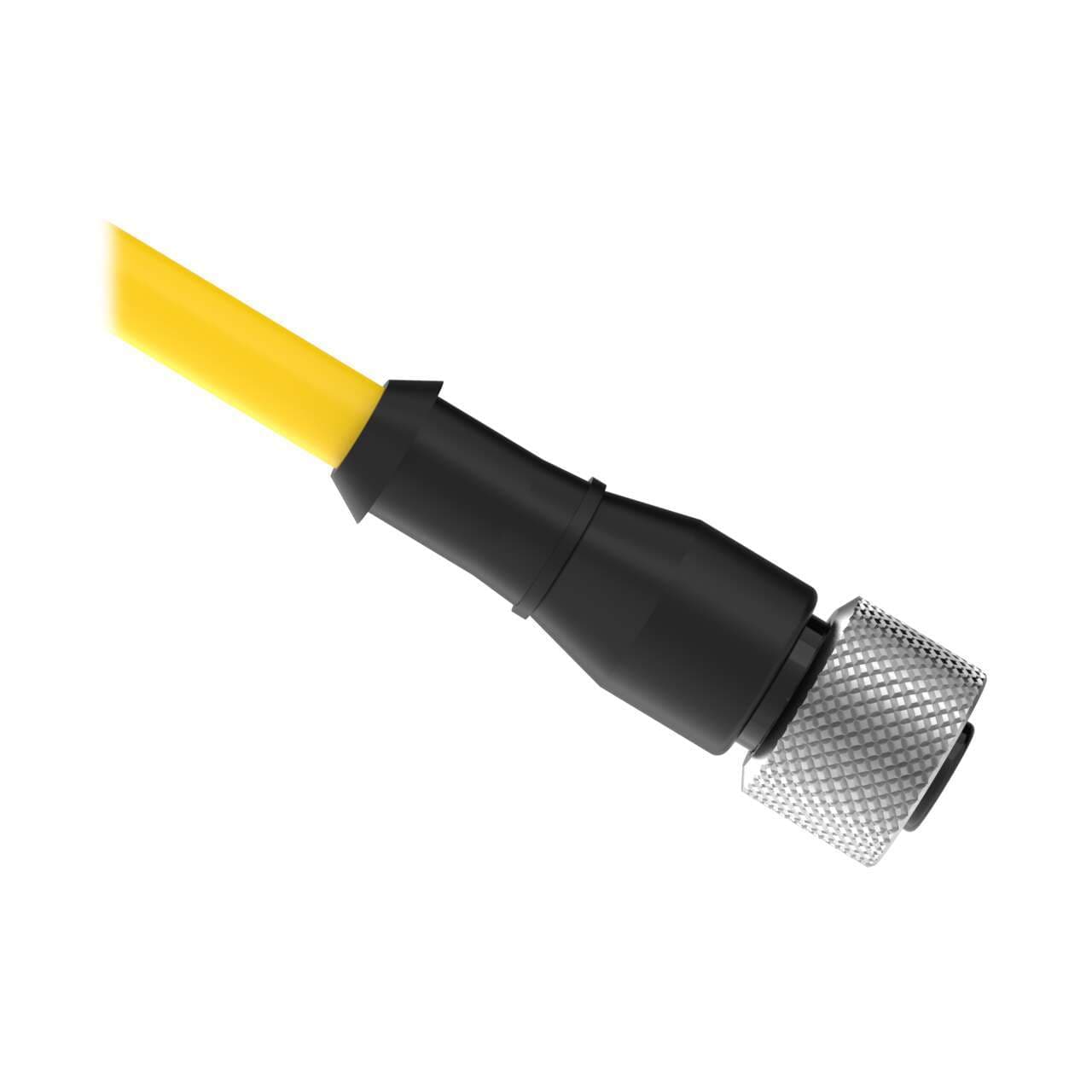

QDE-850D Banner Cordsets
Part#:QDE-850D
Manufacturer:Banner
Alt. Part#:70885
Product Lifecycle:Active
In-stock parts: 2
Jun 20, 2025
Cordset: Single Ended M12; 8-pin Straight Female; 15.24 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QDE-850D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight916.25584 g
- Country Of OriginTW
- Number of Connectors 1
- Primary Gender Female
- Oil/Grease Resistant No
- Number of Contacts 8
- Current Rating (A) 2.0
- Shield/No Shield No Shield
- Secondary Connector Type Flying Leads
- Connector Body Material/Color PUR Black
- IP Rating IP67
- Trunk Length (m) No Trunk
- Primary Number of Conductors 8
- Cable Jacket Color Yellow
- Maximum Temp. (°C) 105
- Primary AWG 22
- Outside Cable Diameter (mm) 6
- Minimum Temp. (°C) -40
- Feature: Hazardous Area No
- Cordset Length (m) 15.2
- Primary Connector Type EURO
- Cable Jacket Material PVC
- Voltage Rating (V) 75 V ac/dc
- Primary Orientation Straight
- Coupling Material/Color Nickel Plated Brass
- Primary Coupling Method M12 Single Key
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QDE-850D Description
Banner Engineering QDE-850D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female connector and bare end flying leads, facilitating easy and versatile connections. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, ensuring durability and visibility in different environments. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius, making it suitable for use in a wide range of industrial settings. With a length of 50ft (15m) and a rated voltage of 75Vdc, this cable offers ample reach and power handling capability for various applications. The QDE-850D is also designed to meet IP67 standards, providing protection against dust and temporary immersion in water.
This item can ship within 24h!
1-year warranty
$44.98
Stock:
2
Select Qty:
$44.98
$44.98 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
