QDEG-815D Banner Cordsets

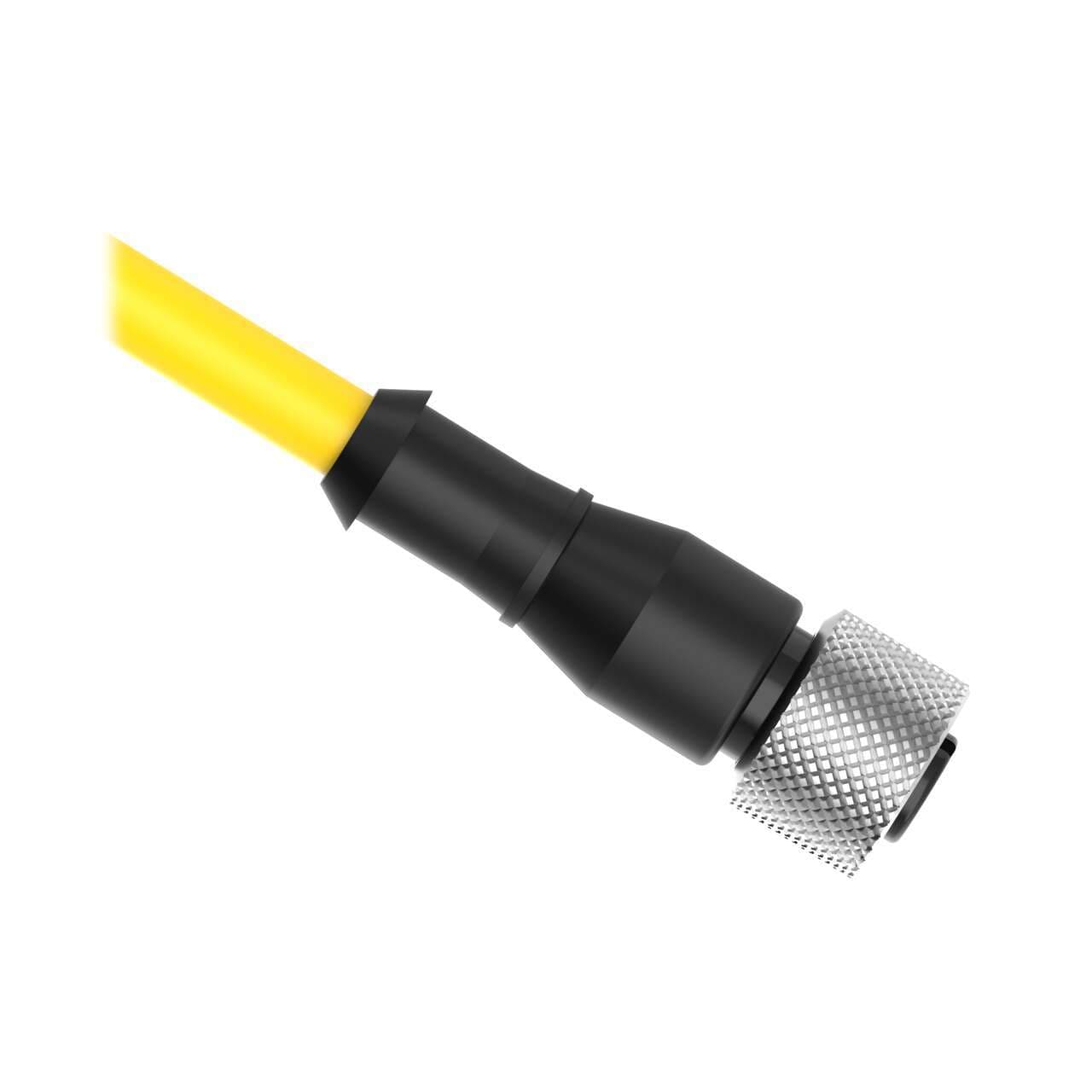

Banner QDEG-815D Cordset: Single Ended M12; 8-pin Straight Female; 4.57 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
Banner

Part#:QDEG-815D

Manufacturer:Banner

Alt. Part#:804694

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended M12; 8-pin Straight Female; 4.57 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QDEG-815D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight286.216552 g
  • Country Of OriginTW
  • Cable Jacket Color
    Yellow
  • Current Rating (A)
    2.0
  • Primary Number of Conductors
    8
  • Outside Cable Diameter (mm)
    6.0
  • Feature: Hazardous Area
    No
  • Cable Jacket Material
    PVC
  • Primary Coupling Method
    M12 Single Key
  • Number of Contacts
    8
  • Maximum Temp. (°C)
    105
  • Primary AWG
    22
  • Connector Body Material/Color
    PUR Black
  • Min Cable Diameter
    6
  • Primary Orientation
    Straight
  • Cordset Length (m)
    4.57
  • Primary Connector Type
    EURO
  • Voltage Rating (V)
    75 V ac/dc
  • Max Cable Diameter
    6
  • Shield/No Shield
    No Shield
  • Primary Gender
    Female
  • Trunk Length (m)
    No Trunk
  • IP Rating
    IP67
  • Number of Connectors
    1
  • Minimum Temp. (°C)
    -40
  • Oil/Grease Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

QDEG-815D Description

Banner Engineering QDEG-815D is a pre-assembled cable/cordset designed for various automation applications. It features single-ended design with an 8-pin Euro-style M12 female connector on one end and bare end flying leads on the other, facilitating easy integration into existing systems. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, providing visibility and protection. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius, making it suitable for use in a wide range of environmental conditions. With a length of 15 feet (approximately 5 meters), it offers flexibility in installation distances. The QDEG-815D is designed to withstand harsh industrial environments with a degree of protection rated at IP67 and can operate with a rated voltage of 75Vdc.
