QDEG-850D Banner Cordsets
Part#:QDEG-850D
Manufacturer:Banner
Alt. Part#:804798
Product Lifecycle:Active
Get a quick Quote!

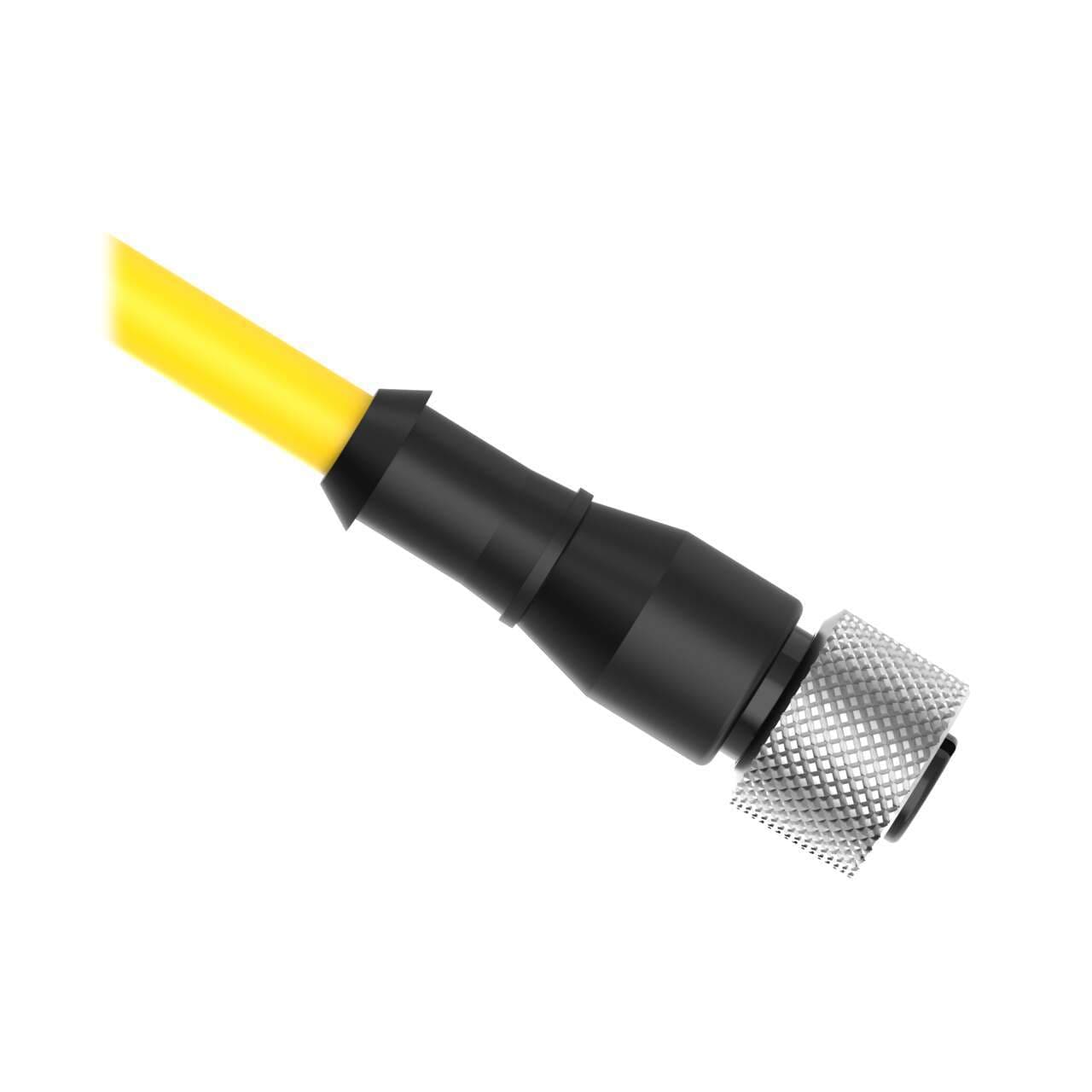

Cordset: Single Ended M12; 8-pin Straight Female; 15.24 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QDEG-850D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight945.3764464 g
- Country Of OriginTW
- Connector Body Material/Color PUR Black
- Current Rating (A) 2.0
- Primary Orientation Straight
- Coupling Material/Color Nickel Plated Brass
- Cable Jacket Color Yellow
- Primary AWG 22
- Number of Contacts 8
- Minimum Temp. (°C) -40
- Feature: Hazardous Area No
- IP Rating IP67
- Shield/No Shield No Shield
- Primary Gender Female
- Number of Connectors 1
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 6
- Voltage Rating (V) 75 V ac/dc
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Cordset Length (m) 15.24
- Primary Connector Type EURO
- Cable Jacket Material PVC
- Maximum Temp. (°C) 105
- Primary Number of Conductors 1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QDEG-850D Description
Banner Engineering QDEG-850D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 6mm diameter PVC cable and a 5-pin Euro-style M12 female connector to bare end flying leads. This cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, ensuring its suitability for environments where dust and water resistance are necessary. The QDEG-850D is rated for a voltage of 75Vdc and comes in a yellow sheathing. Its length is 50ft (15m), accommodating installations that require extended cable runs.
