QDE-575D Banner Cordsets
Part#:QDE-575D
Manufacturer:Banner
Alt. Part#:71464
Product Lifecycle:Active
In-stock parts: 2
Jun 20, 2025

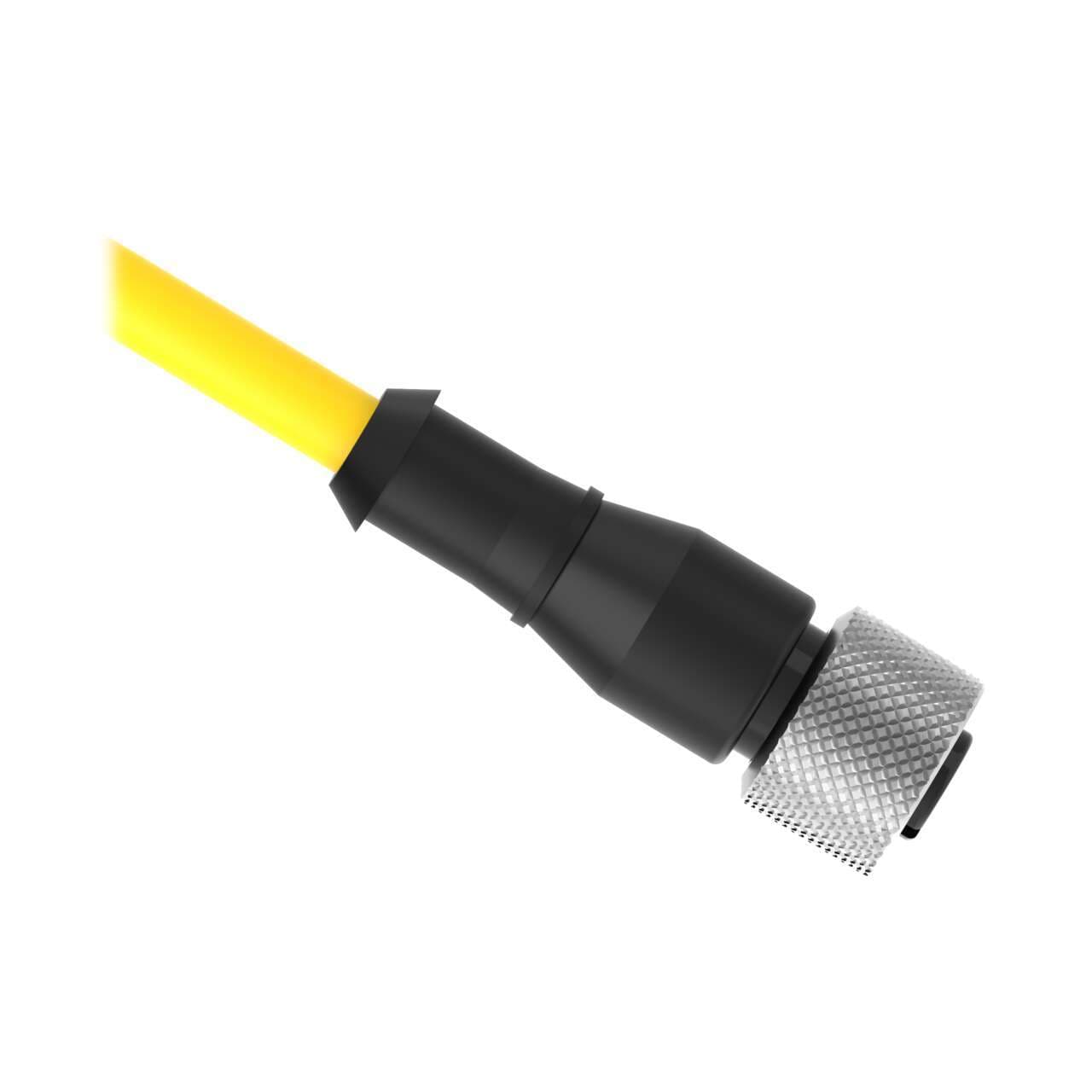

Cordset: Single Ended M12; 5-pin Straight Female; 22.86 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QDE-575D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight988.83056 g
- Country Of OriginTW
- Connector Body Material/Color PUR Black
- Current Rating (A) 2.0
- Secondary Connector Type Flying Leads
- Number of Contacts 5
- Maximum Temp. (°C) 105
- Shield/No Shield No Shield
- Primary Coupling Method M12 Single Key
- Cable Jacket Material PVC
- IP Rating IP67
- Number of Connectors 1
- Minimum Temp. (°C) -40
- Primary Number of Conductors 5
- Cordset Length (m) 22.9
- Voltage Rating (V) 75 V ac/dc
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 5.5
- Primary Orientation Straight
- Trunk Length (m) No Trunk
- Primary Connector Type EURO
- Cable Jacket Color Yellow
- Primary AWG 22
- Coupling Material/Color Nickel Plated Brass
- Primary Gender Female
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QDE-575D Description
Banner Engineering QDE-575D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.5mm diameter PVC cable and a 5-pin Euro-style M12 female connector with bare end flying leads. The connector's coupling nut is made from nickel-plated brass, ensuring a secure connection. This cable operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. It has a rated voltage of 75Vdc and comes in a yellow sheathing. The total length of the cable is 75ft (23m), accommodating extensive reach for connectivity in industrial settings.
