PKW4MS-9 Banner Cordsets
Part#:PKW4MS-9
Manufacturer:Banner
Alt. Part#:809655
Product Lifecycle:Active
Get a quick Quote!

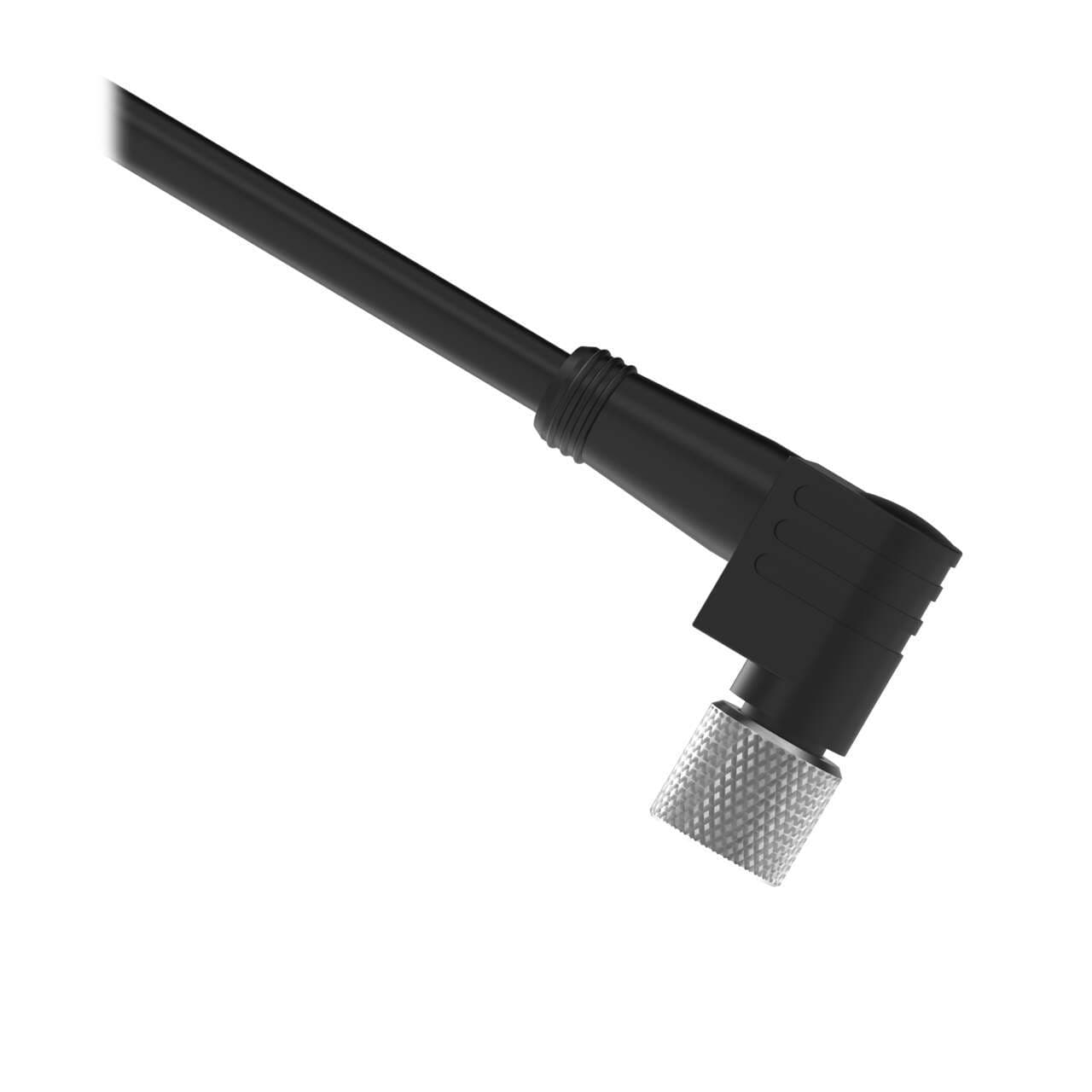

Cordset: Single Ended M8; 4-pin Right-Angle Female; 9 m (29.53 ft) 4x26 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PKW4MS-9 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginTW
- Shield Type Coupling
- Primary Connector Type PICO
- Oil/Grease Resistant No
- Trunk Length (m) No Trunk
- Minimum Temp. (°C) -40
- Secondary Connector Type Flying Leads
- Cordset Length (m) 9.035
- IP Rating IP67
- Secondary AWG 26
- Cable Jacket Material PVC
- Primary Gender Female
- Number of Connectors 1
- Current Rating (A) 2.0
- Primary Number of Conductors 4
- Outside Cable Diameter (mm) 4.3
- Voltage Rating (V) 125 V ac/dc
- Primary AWG 26
- Shield/No Shield Shield
- Number of Contacts 4
- Primary Coupling Method M8 Thread
- Feature: Hazardous Area No
- Cable Jacket Color Black
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Right Angle
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Secondary Number of Conductors 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PKW4MS-9 Description
Threaded Pico-Style Quick Disconnect Cable with, Right-Angle 4-Pin Connector, 9 m (30 ft) in Length, Nickel Plated Brass Coupling Nut; Shield Wire Grounded to Coupling Nut
Related documents PKW4MS-9 Specs
