PKW4MS-2 Banner Cordsets
Part#:PKW4MS-2
Manufacturer:Banner
Alt. Part#:809653
Product Lifecycle:Active
Get a quick Quote!

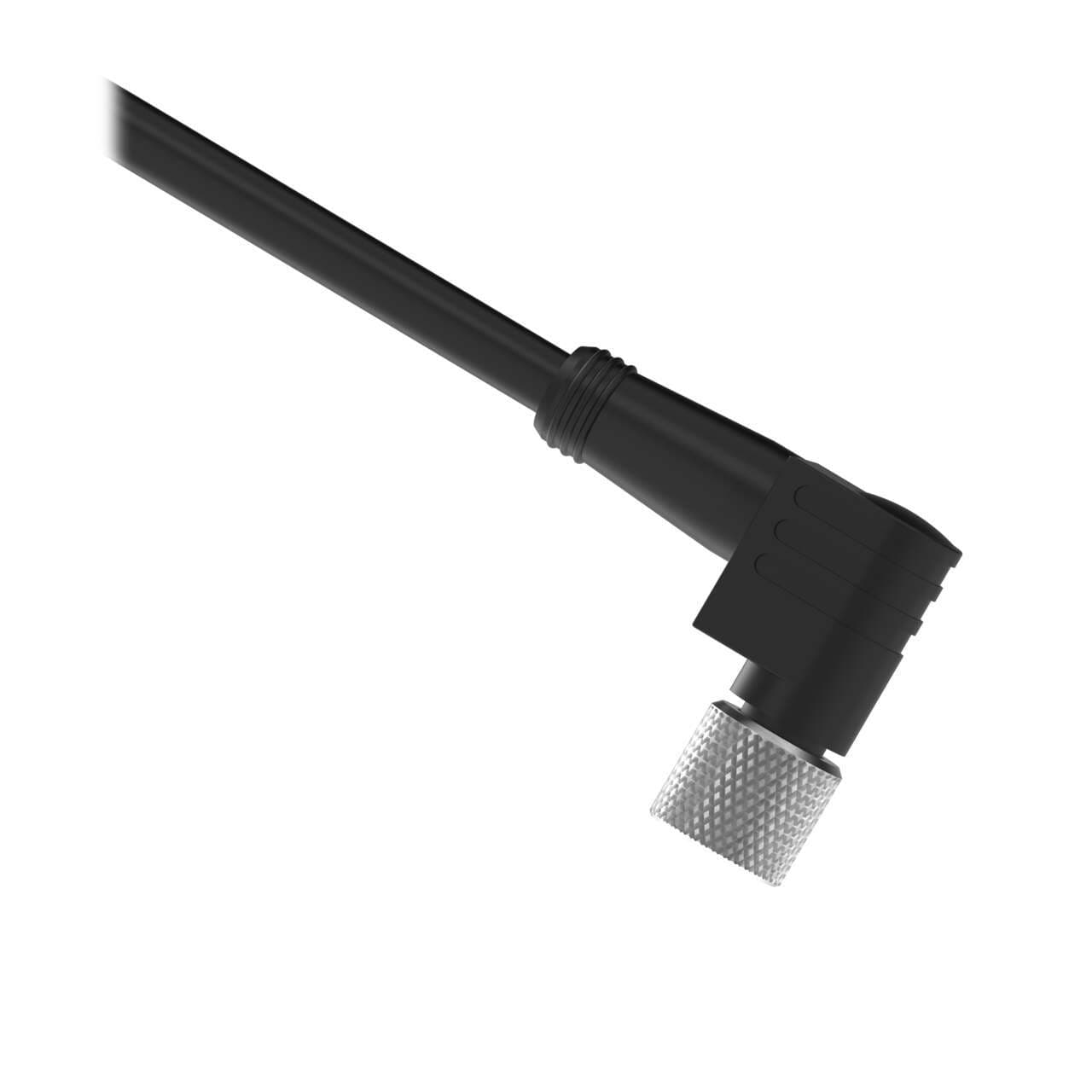

Cordset: Single Ended M8; 4-pin Right-Angle Female; 2 m (6.56 ft) 4x26 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PKW4MS-2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight49.89512 g
- Country Of OriginTW
- Shield Type Coupling
- Number of Contacts 4
- Primary Number of Conductors 3
- Coupling Material/Color Nickel Plated Brass
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 4.3
- Secondary Connector Type Flying Leads
- Cable Jacket Color Black
- Cordset Length (m) 2.034
- Primary AWG 24, 28
- Number of Connectors 1
- Current Rating (A) 1.5
- Primary Orientation Right Angle
- Maximum Temp. (°C) 105
- Secondary AWG 24, 28
- Cable Jacket Material PUR
- Trunk Length (m) No Trunk
- Primary Coupling Method M8 Thread
- Shield/No Shield Shield
- Voltage Rating (V) 250 V ac/dc
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Minimum Temp. (°C) -40
- IP Rating IP50
- Secondary Number of Conductors 4
- Primary Connector Type PICO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PKW4MS-2 Description
Threaded Pico-Style Quick Disconnect Cable with, Right-Angle 4-Pin Connector, 2 m (6.5 ft) in Length, Nickel Plated Brass Coupling Nut; Shield Wire Grounded to Coupling Nut
Related documents PKW4MS-2 Specs
