PKW4M-410-MQDEC Banner Cordsets

Name: PKW4M-410-MQDEC
Brand: Banner

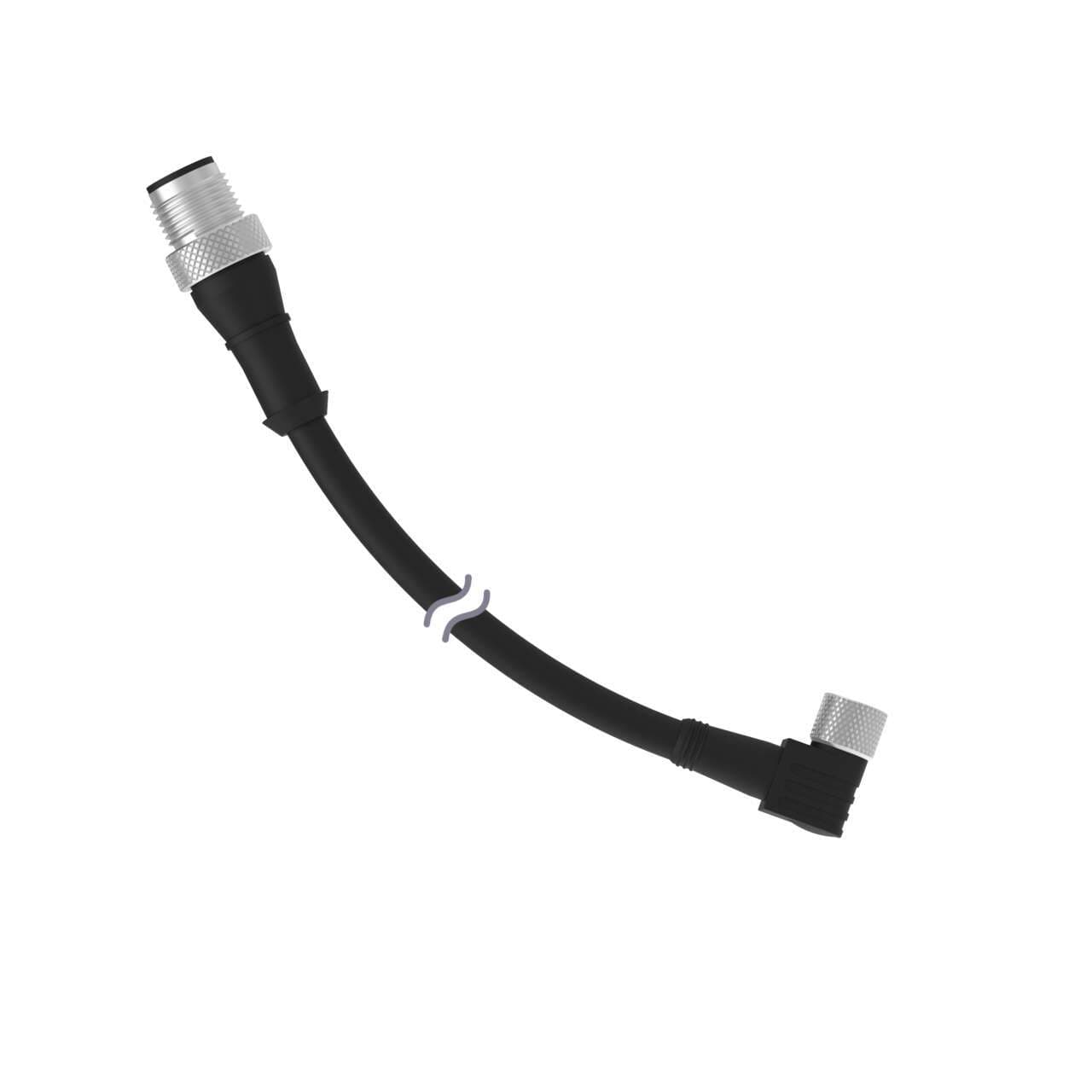

Banner PKW4M-410-MQDEC Cordset: Double Ended M8 to M12; 4-pin Right-Angle Female; 4-pin Straight Male; 3 m 3x24 Black PUR Jacket; Nickel-Plated Brass Coupling Nuts

Part#:PKW4M-410-MQDEC

Manufacturer:Banner

Alt. Part#:25060

Product Lifecycle:Active

Get a quick Quote!

Cordset: Double Ended M8 to M12; 4-pin Right-Angle Female; 4-pin Straight Male; 3 m 3x24 Black PUR Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PKW4M-410-MQDEC Banner price in the box on the right side or send a quick quote.

Product Details

Weight45.3592 g
Country Of OriginTW
Outside Cable Diameter (mm)
4.4
Primary Coupling Method
M8 Thread
Secondary Number of Conductors
4
Number of Connectors
2
Primary Gender
Female
Number of Contacts
3
Cable Jacket Color
Black
Primary Connector Type
PICO
Primary AWG
24
Shield/No Shield
No Shield
Current Rating (A)
4.0
Secondary Gender
Male
Oil/Grease Resistant
No
Connector Body Material/Color
PUR Black
Minimum Temp. (°C)
-40
Secondary Connector Type
EURO
Cordset Length (m)
3
Coupling Material/Color
Nickel Plated Brass

Primary Number of Conductors

Trunk Length (m)

No Trunk

IP Rating

IP67

Secondary Coupling Method

M12 Single Key

Cable Jacket Material

PUR

Voltage Rating (V)

125 V ac/dc

Secondary Orientation

Straight

Maximum Temp. (°C)

105

Primary Orientation

Right Angle

Secondary AWG

Feature: Hazardous Area

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PKW4M-410-MQDEC Description

Banner Engineering PKW4M-410-MQDEC is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 4-pin M8 female right-angled connector on one end and a 4-pin Euro-style M12 male connector on the other. The cable has a diameter of 4.4mm and is encased in black PVC sheathing. It is 3 feet (approximately 0.91 meters) in length and can operate within an ambient air temperature range of -40 to +105 degrees Celsius. This model is rated for a voltage of 125Vac and offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance is required.
