MQDEC2-530 Banner Cordsets
Part#:MQDEC2-530
Manufacturer:Banner
Alt. Part#:60812
Product Lifecycle:Active
In-stock parts: 6
Jun 19, 2025

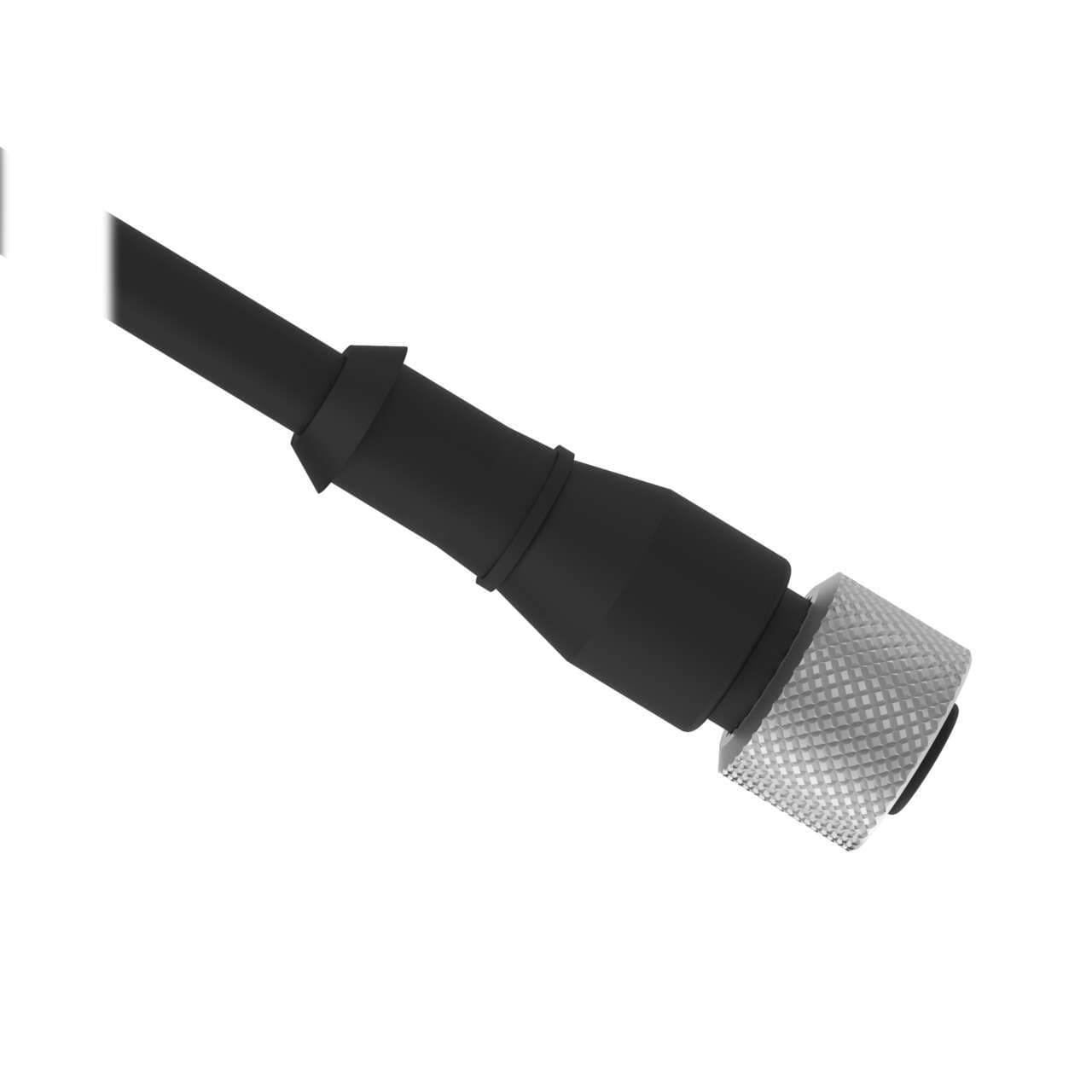

Cordset: Single Ended M12; 5-pin Straight Female Connector; 9 m (29.53 ft) 5x22 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDEC2-530 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight435.44832 g
- Country Of OriginUS
- Cable Jacket Color Black
- Current Rating (A) 4.0
- Primary AWG 22
- Shield Type Open
- Number of Contacts 5
- Primary Orientation Straight
- Cable Jacket Material PVC
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 5
- Shield/No Shield Shield
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Cordset Length (m) 9.14
- Maximum Temp. (°C) 105
- Primary Gender Female
- Outside Cable Diameter (mm) 5.6
- IP Rating IP67
- Secondary Connector Type Flying Leads
- Number of Connectors 1
- Primary Coupling Method M12 Single Key
- Trunk Length (m) No Trunk
- Voltage Rating (V) 250 V ac/dc
- Feature: Hazardous Area No
- Connector Body Material/Color PUR Black
- Primary Connector Type EURO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDEC2-530 Description
Banner Engineering MQDEC2-530 is a pre-assembled cable/cordset designed for various automation applications. It features a shield single-ended design with a 5.6mm diameter PVC cable and a chrome-plated brass coupling nut. This cable is equipped with a 5-pin Euro-style M12 female connector and bare end flying leads, ensuring compatibility with a wide range of devices. The MQDEC2-530 operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The black sheathing enhances its durability and protection, while its length of 30ft (9m) provides ample reach for various setups. This cable is rated for a voltage of 250Vac.
