MQDEC2-515RA Banner Cordsets

Name: MQDEC2-515RA
Brand: Banner

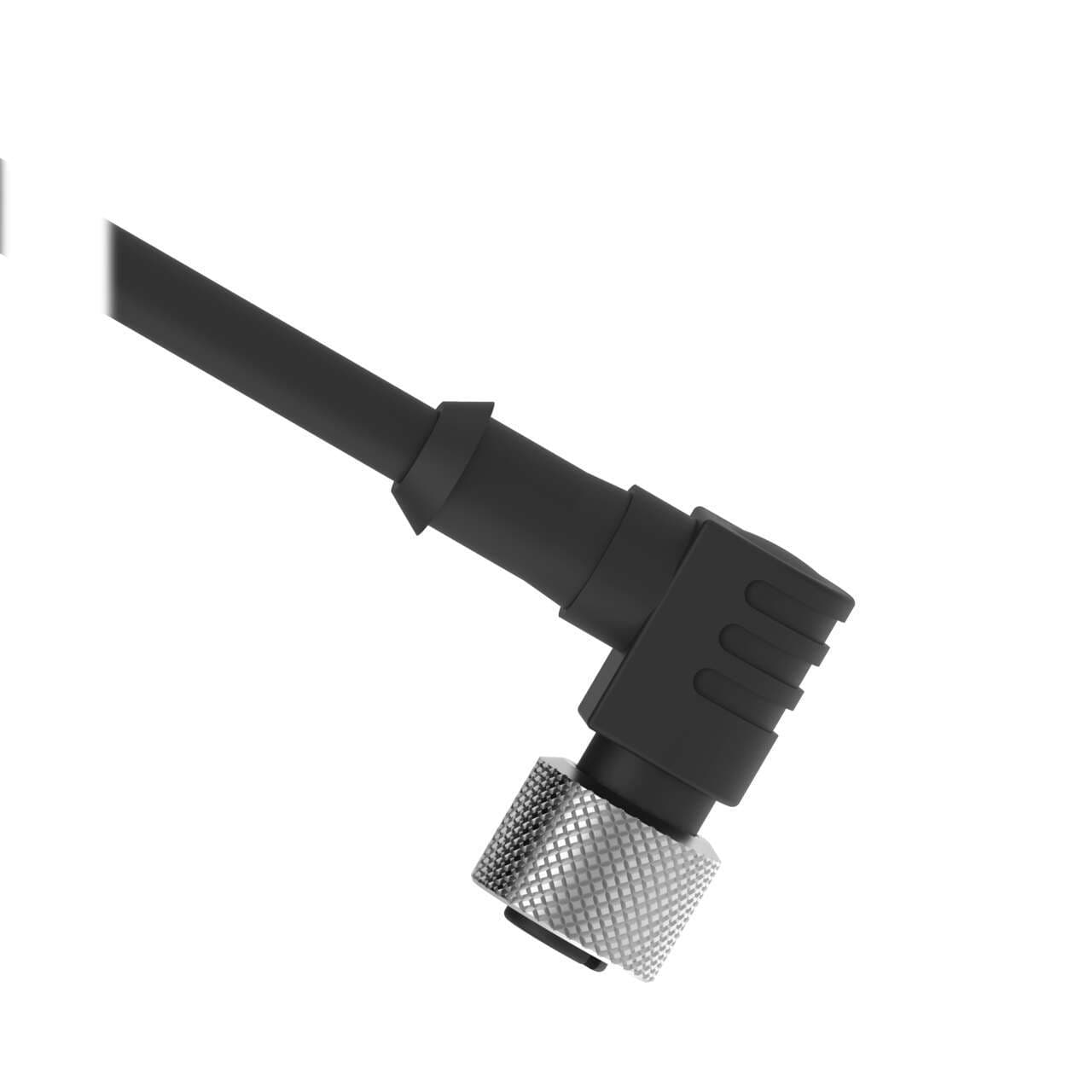

Banner MQDEC2-515RA Cordset: Single Ended M12; 5-pin Right Angle Female Connector; 5 m (16.4 ft) 5x22 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQDEC2-515RA

Manufacturer:Banner

Alt. Part#:60814

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended M12; 5-pin Right Angle Female Connector; 5 m (16.4 ft) 5x22 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDEC2-515RA Banner price in the box on the right side or send a quick quote.

Product Details

Weight244.93968 g
Country Of OriginUS
Cable Jacket Material
PVC
Primary Connector Type
EURO
Feature: Hazardous Area
No
Number of Contacts
5
Trunk Length (m)
No Trunk
Primary Orientation
Right Angle
Outside Cable Diameter (mm)
5.6
Voltage Rating (V)
250 V ac/dc
Primary AWG
22
Connector Body Material/Color
PUR Black
IP Rating
IP67
Shield Type
Open
Minimum Temp. (°C)
-40
Oil/Grease Resistant
No
Coupling Material/Color
Nickel Plated Brass
Primary Number of Conductors
5
Cable Jacket Color
Black
Primary Coupling Method
M12 Single Key

Shield/No Shield

Shield

Current Rating (A)

4.0

Maximum Temp. (°C)

105

Secondary Connector Type

Flying Leads

Cordset Length (m)

4.57

Number of Connectors

Primary Gender

Female

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQDEC2-515RA Description

Banner Engineering MQDEC2-515RA is a pre-assembled cable/cordset designed for various applications. It features a 5-pin Euro-style M12 female right-angled connector with bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 5.6mm and is encased in black sheathing made from PVC, offering durability and protection. The chrome-plated brass coupling nut enhances the cable's robustness. This model is designed to operate within an ambient air temperature range of -40 to +105°C, making it suitable for use in diverse environments. With a length of 15ft (5m) and a rated voltage of 250Vac, it provides ample reach and power handling capability. The MQDEC2-515RA is also rated for a degree of protection of IP67, indicating its resistance to dust and water ingress.
