MQDEC-420SS Banner Cordsets

Name: MQDEC-420SS
Brand: Banner
Price: 53.48 USD
Availability: InStock

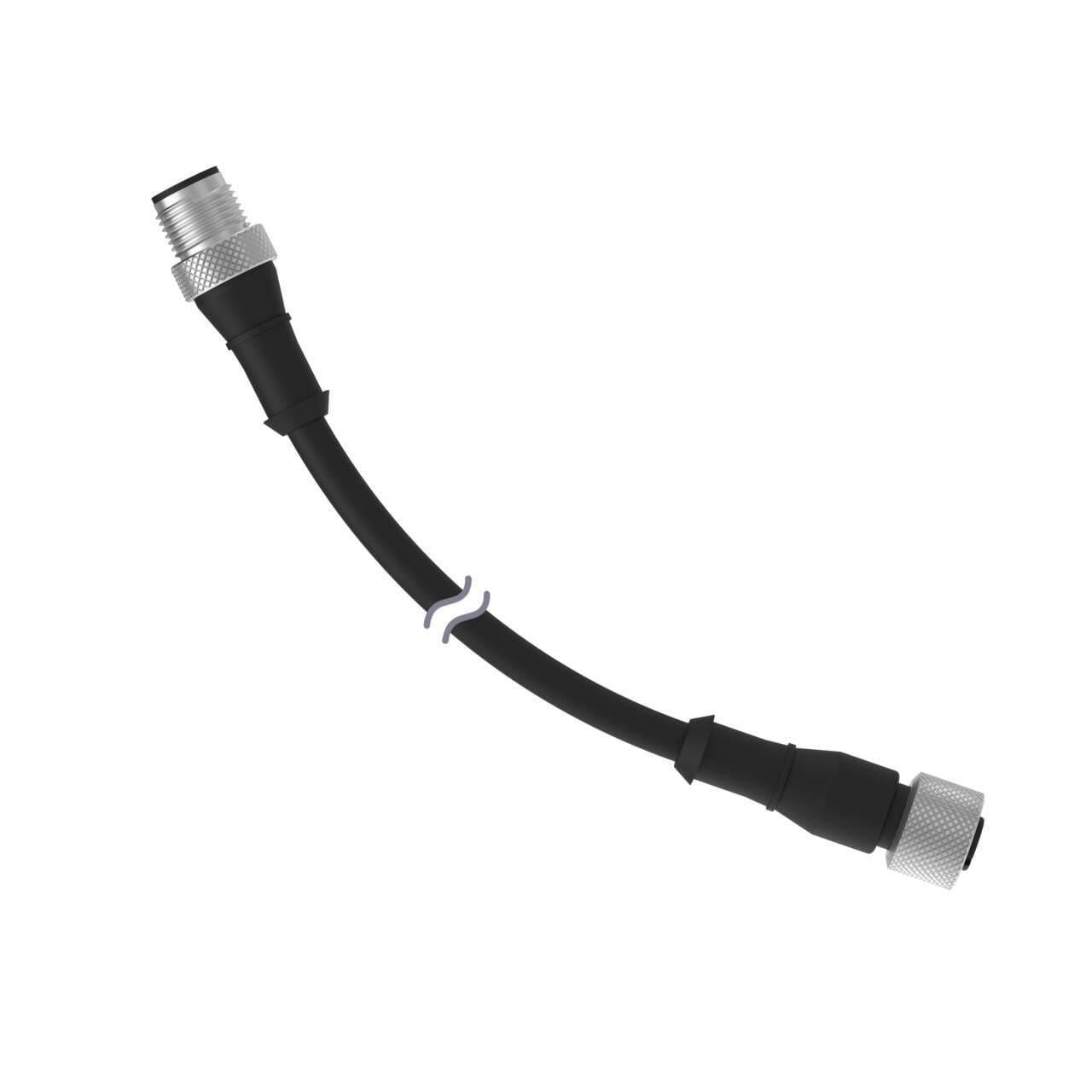

Banner MQDEC-420SS Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 6.1 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts

Part#:MQDEC-420SS

Manufacturer:Banner

Alt. Part#:47634

Product Lifecycle:Active

In-stock parts: 1

Jun 20, 2025

Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 6.1 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDEC-420SS Banner price in the box on the right side or send a quick quote.

Product Details

Weight254.01152 g
Country Of OriginUS
Outside Cable Diameter (mm)
5.9
Minimum Temp. (°C)
-40
Secondary Coupling Method
M12 Single Key
Secondary AWG
22
Cable Jacket Color
Black
IP Rating
IP67
Primary Gender
Female
Connector Body Material/Color
PUR Black
Primary Number of Conductors
5
Trunk Length (m)
No Trunk
Current Rating (A)
4.0
Secondary Connector Type
EURO
Secondary Number of Conductors
4
Maximum Temp. (°C)
105
Cordset Length (m)
6.1
Primary Coupling Method
M12 Single Key
Shield/No Shield
No Shield
Primary Connector Type
EURO

Cable Jacket Material

PVC

Feature: Hazardous Area

Secondary Gender

Male

Number of Connectors

Voltage Rating (V)

250 V ac/dc

Primary AWG

Coupling Material/Color

Nickel Plated Brass

Number of Contacts

Primary Orientation

Straight

Oil/Grease Resistant

Secondary Orientation

Straight

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQDEC-420SS Description

Banner Engineering MQDEC-420SS is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5.9mm diameter PVC cable and black sheathing. The cable is equipped with a 5-pin Euro-style M12 female connector and a 4-pin Euro-style M12 male connector, both featuring chrome-plated brass coupling nuts. This product is designed to operate within an ambient air temperature range of -40 to +105°C. It offers a degree of protection of IP67, making it suitable for environments where dust and water resistance are necessary. The MQDEC-420SS has a length of 6.1 meters and is rated for a voltage of 250Vac.
