MAR5432NX485Q Banner Measurement Sensors
Part#:MAR5432NX485Q
Manufacturer:Banner
Alt. Part#:801931
Product Lifecycle:Active
Get a quick Quote!

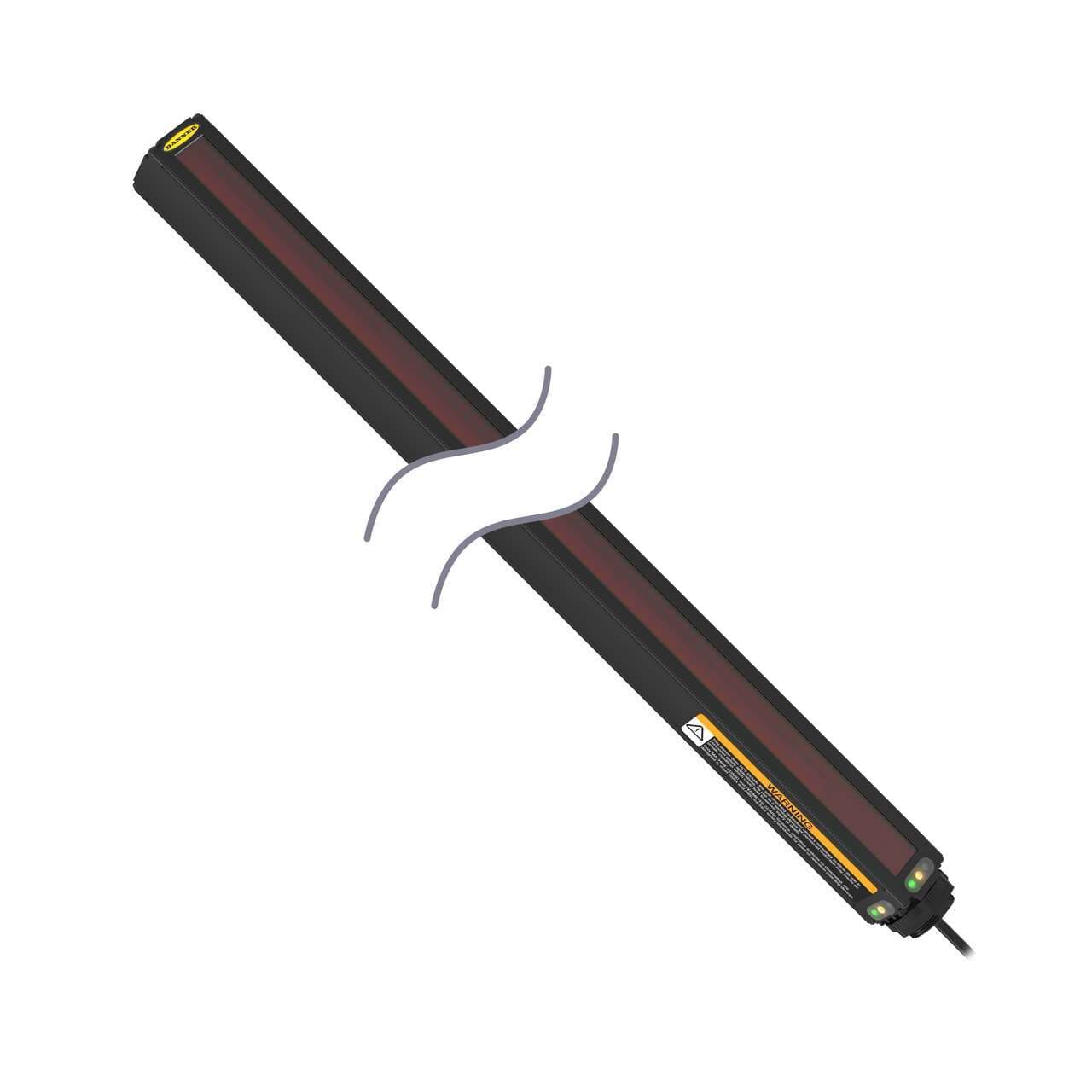

2 Piece Mini-Array Series: Receiver 3/8 in Optical Spacing; Range: 20 ft; Sensing Length 54 in; Input Voltage 16-30 V; Outputs: 2 Independent NPN; 150 mm (6 in) 8-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MAR5432NX485Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2404.0376 g
- Country Of OriginCN
- Supply voltage (DC) 16Vdc-30Vdc (24Vdc nom.)
- Dimensions 1362mm array length
- Detectable object size 12.7-19.1mm
- Main function Sensor (Edge)
- Distance 3/8" / 9.5mm beam spacing/pitch
- Communication protocol RS-485
- Sub-range name MINI-ARRAY 2-piece models
- Connection type Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector
- Degree of protection IP65 UL type 1
- Order code / Manufacturer SKU 801931
- Primary brand Banner Engineering
- Product series / family name A-GAGE series
- Functions Measuring light screen array edge/profile sensor receiver green LED (power ON) yellow LED (output state)
- Digital outputs 2 x digital outputs (PNP/NPN transistors)
- Ambient air temperature for operation -40...+70 °C
- Sensing distance 60cm...4.6m
- Resolution 3/8" / 9.5mm
- Compliant with standard(s) cURus CE
- Material Aluminium housing PVC connector
- RS-232 No
- Max Temp (°C) 70
- Sensing Mode (Detailed) Receiver
- Housing Length (mm) 1451
- Beam Spacing 9.5 mm
- Discrete Output 2 x NPN/PNP Configurable
- Power DC
- Analog Output N/A
- Max Relative Humidity 0.95
- DeviceNet No
- Minimum Object Sensitivity (mm) 12.7-19.1
- Modbus RTU No
- Number of Beams 144
- Power Supply 16-30V dc
- Device Type Two-Piece
- Min Temp (°C) -40
- IO Link No
- Emitter/Receiver Range (m) 0.6 - 4.6
- Primary Housing Material Aluminum
- Array Length (mm) 1362
- RS-485 Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MAR5432NX485Q Description
Banner Engineering MAR5432NX485Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array edge/profile with a focus on the receiver alone. This unit features a 1362mm array length and is housed in aluminum with a PVC connector, ensuring durability and connectivity. It operates with a 3/8" / 9.5mm beam spacing/pitch and is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector for easy integration. The MAR5432NX485Q utilizes an RS-485 communication protocol and requires a supply voltage of 16Vdc-30Vdc, with 24Vdc nominal. It is built to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. With a sensing distance ranging from 60cm to 4.6m and equipped with 2 x digital outputs (PNP/NPN transistor), this sensor can detect objects sized between 12.7-19.1mm, making it suitable for a variety of applications requiring precise edge or profile sensing.
Related documents MAR5432NX485Q Specs
