MAQDC-830RA Banner Cordsets
Part#:MAQDC-830RA
Manufacturer:Banner
Alt. Part#:78685
Product Lifecycle:Active
Get a quick Quote!

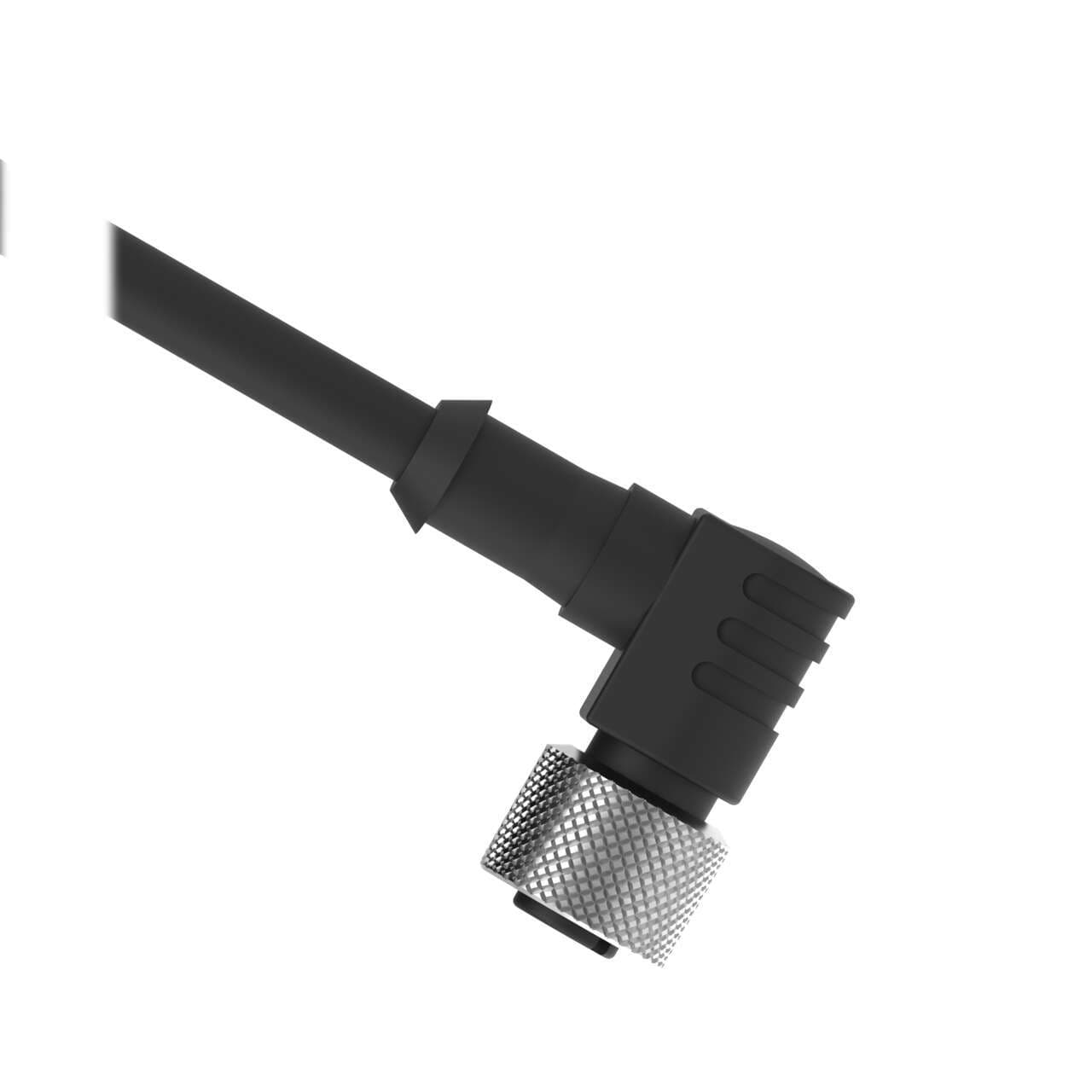

Cordset: Single Ended M12; 8-pin Right-Angle Female; 10 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MAQDC-830RA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight508.02304 g
- Country Of OriginUS
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Outside Cable Diameter (mm) 5.6
- Voltage Rating (V) 75 V ac/dc
- Feature: Hazardous Area No
- Cordset Length (m) 10
- Current Rating (A) 2.0
- Secondary Connector Type Flying Leads
- Cable Jacket Material PVC
- Shield Type Open
- Primary Orientation Right Angle
- Number of Contacts 8
- Primary Connector Type EURO
- Shield/No Shield Shield
- IP Rating IP67
- Primary AWG 24
- Maximum Temp. (°C) 105
- Oil/Grease Resistant No
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Number of Connectors 1
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 8
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MAQDC-830RA Description
Banner Engineering MAQDC-830RA is a pre-assembled cable/cordset designed with a single-ended configuration. It features black sheathing made of PVC material and measures 30ft (9.14m) in length. This cable is equipped with an 8-pin Euro-style M12 female angled connector and bare end flying leads. It has a rated voltage of 75Vdc and a cable diameter of 5.6mm. The MAQDC-830RA is capable of operating in ambient air temperatures ranging from -40 to +105°C and offers a degree of protection rated at IP67.
