MAQDC-830 Banner Cordsets
Part#:MAQDC-830
Manufacturer:Banner
Alt. Part#:72510
Product Lifecycle:Active
In-stock parts: 2
Jun 21, 2025
Cordset: Single Ended M12; 8-pin Straight Female; -10 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MAQDC-830 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight508.02304 g
- Country Of OriginTW
- Shield/No Shield Shield
- Primary Coupling Method M12 Single Key
- Number of Connectors 1
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Straight
- Cable Jacket Color Black
- Current Rating (A) 2.0
- Primary Number of Conductors 8
- Number of Contacts 8
- Secondary Connector Type Flying Leads
- Cordset Length (m) 9.14
- Voltage Rating (V) 75 V ac/dc
- Feature: Hazardous Area No
- Trunk Length (m) No Trunk
- IP Rating IP67
- Shield Type Open
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Primary AWG 24
- Outside Cable Diameter (mm) 5.6
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Cable Jacket Material PVC
- Primary Connector Type EURO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MAQDC-830 Description

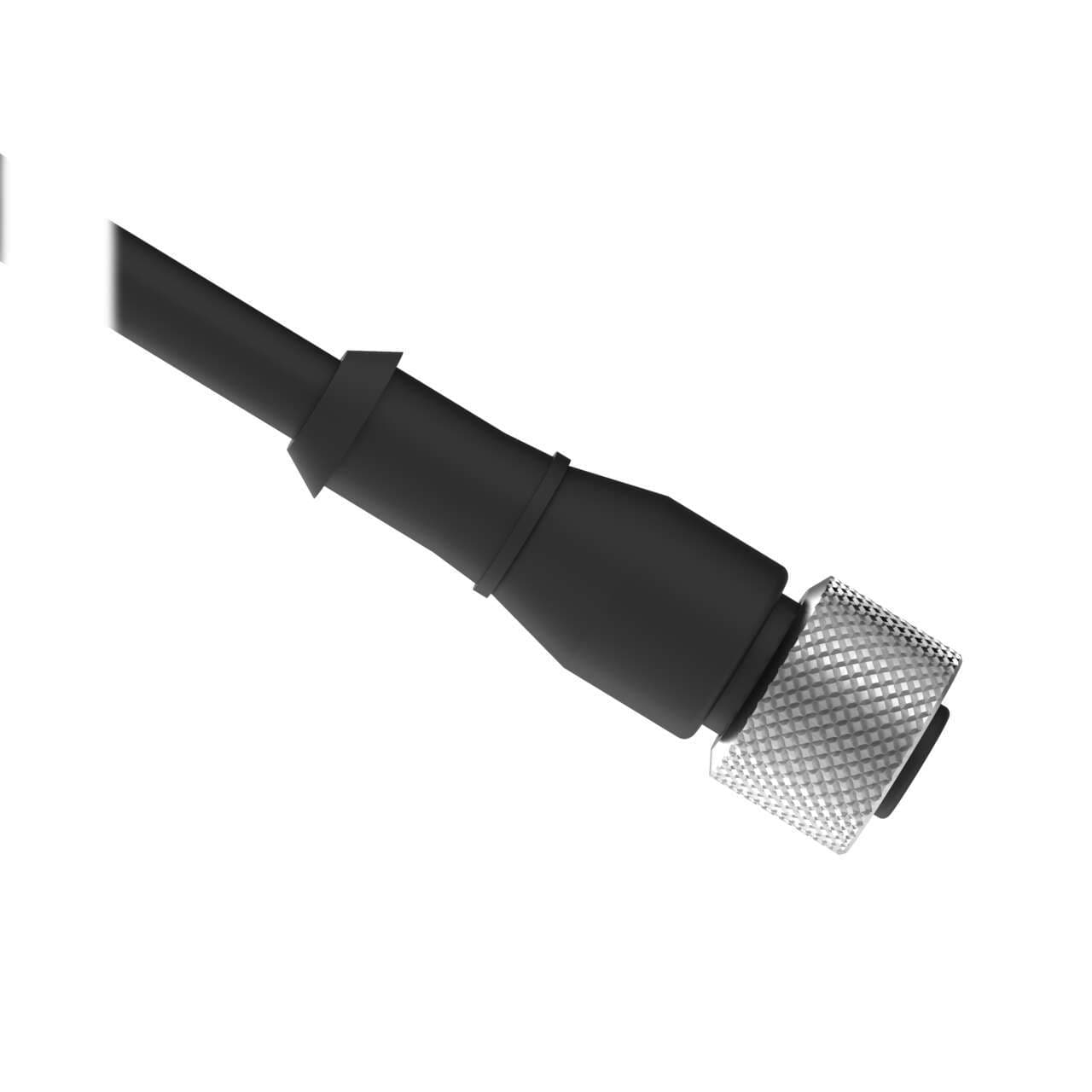

Banner Engineering MAQDC-830 is a pre-assembled cable/cordset designed with a single-ended configuration. It features black sheathing made from PVC material and measures 30ft (9.14m) in length. This cable is equipped with an 8-pin Euro-style M12 female connector and bare end flying leads. It has a rated voltage of 75Vdc and a cable diameter of 5.6mm. The MAQDC-830 is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67.
