MAQDC-5100C Banner Cordsets
Part#:MAQDC-5100C
Manufacturer:Banner
Alt. Part#:52270
Product Lifecycle:Active
Get a quick Quote!

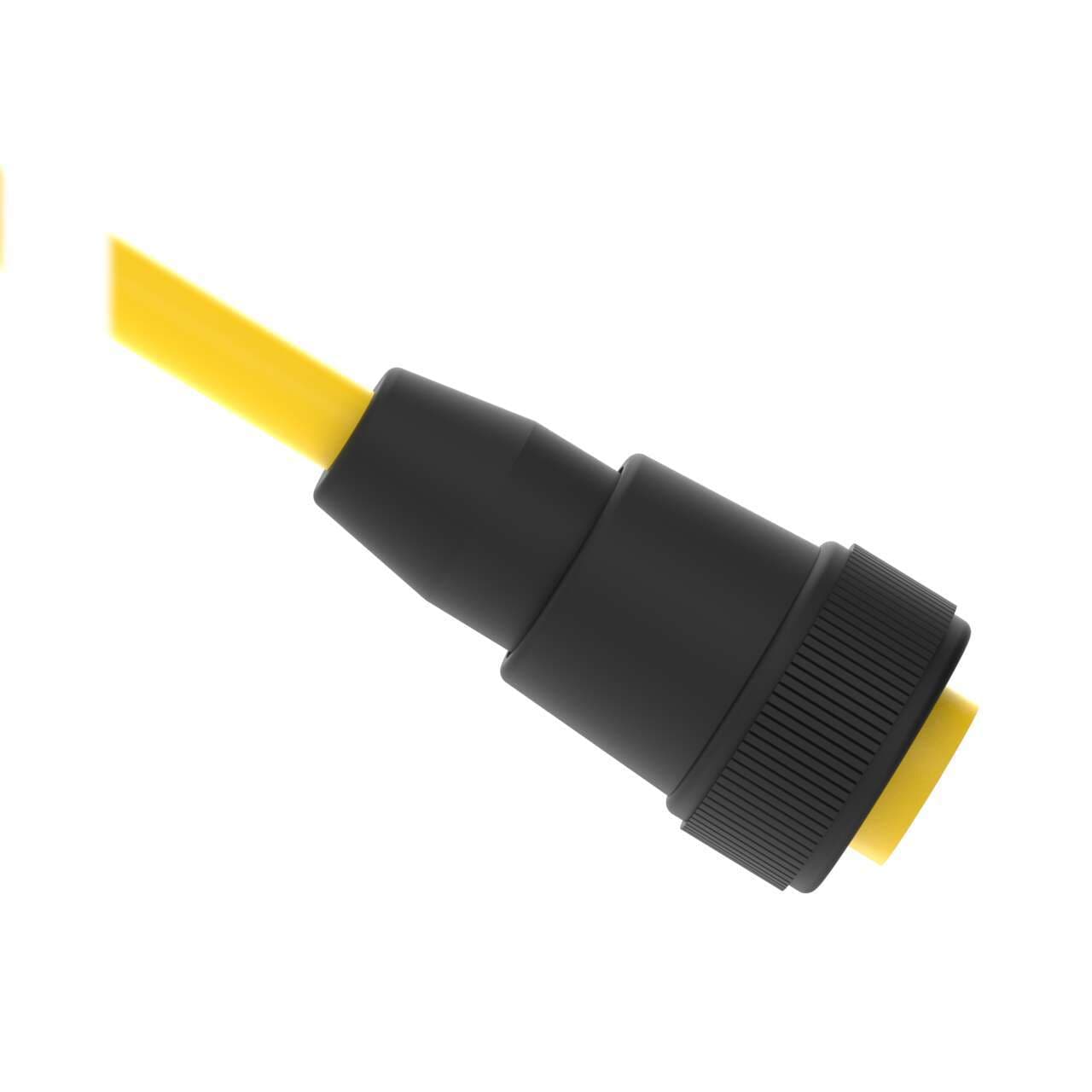

Cordset: Single Ended 7/8 in; 5-pin Straight Female Connector with Shield; 30.48 m (99.97 ft) Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MAQDC-5100C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2930.20432 g
- Country Of OriginUS
- Number of Contacts 5
- IP Rating IP67
- Trunk Length (m) No Trunk
- Primary Connector Type MINI
- Oil/Grease Resistant No
- Cable Jacket Material PVC
- Primary Coupling Method 7/8"-16
- Primary Number of Conductors 4
- Connector Body Material/Color PUR Black
- Primary Gender Female
- Feature: Hazardous Area No
- Number of Connectors 1
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 105
- Shield/No Shield Shield
- Current Rating (A) 2.0
- Cordset Length (m) 30.5
- Shield Type Pin
- Outside Cable Diameter (mm) 7
- Coupling Material/Color Nickel Plated Brass
- Primary AWG 20
- Primary Orientation Straight
- Secondary Connector Type Flying Leads
- Cable Jacket Color Yellow
- Voltage Rating (V) 75 V ac/dc
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MAQDC-5100C Description
Banner Engineering MAQDC-5100C is a pre-assembled cable/cordset designed with a single-ended configuration. It features yellow sheathing made of PVC material and measures 100ft (30.5m) in length. The cable is equipped with a 4-pin 7/8"-16 mini female connector and bare end flying leads. It has a rated voltage of 75Vdc and a cable diameter of 7mm. This product is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67.
