MAE6032Q Banner Measurement Sensors
Part#:MAE6032Q
Manufacturer:Banner
Alt. Part#:87734
Product Lifecycle:Active
Get a quick Quote!

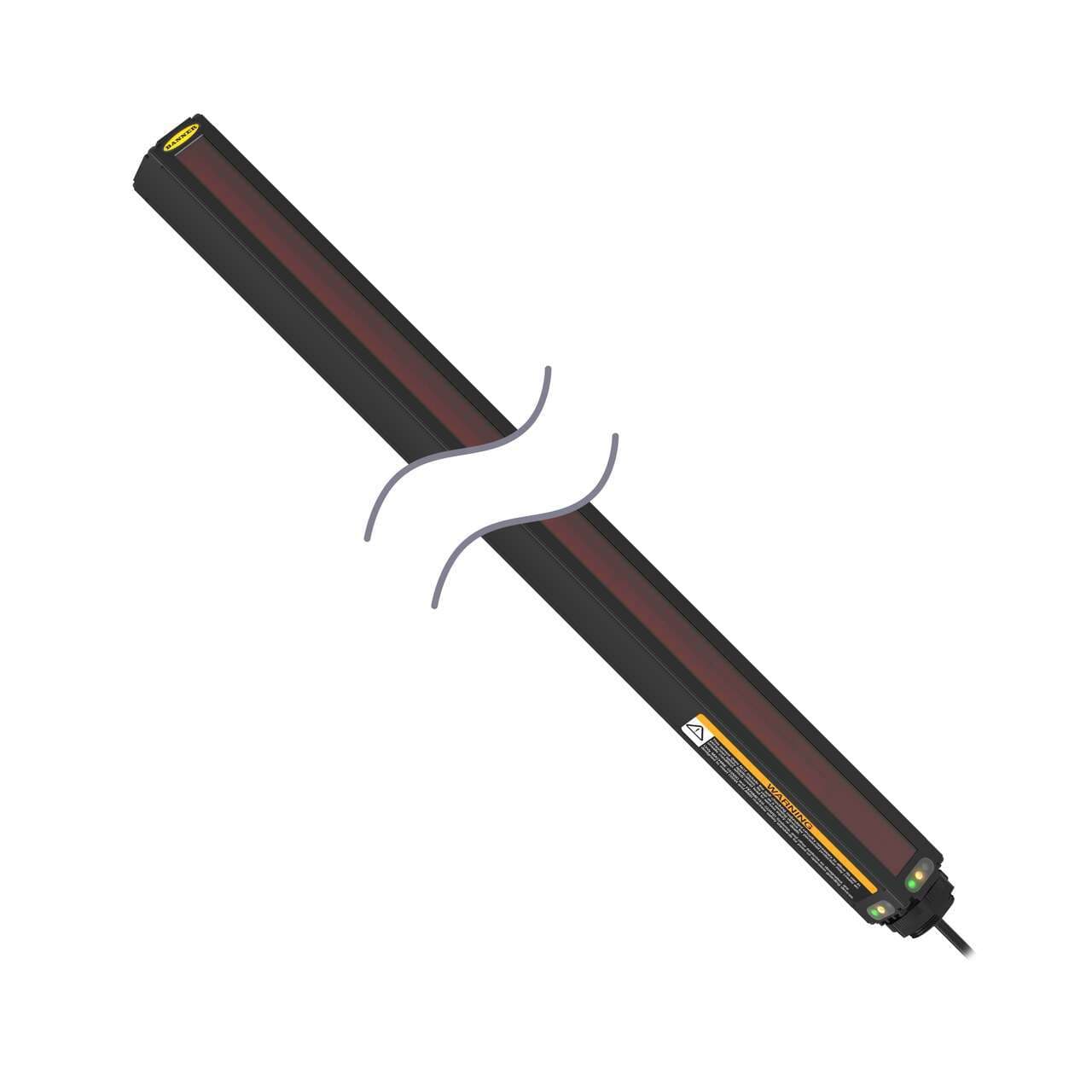

2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 60 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MAE6032Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2585.4744 g
- Country Of OriginCN
- Sub-range name MINI-ARRAY 2-piece models
- Ambient air temperature for operation -40...+70 °C
- Main function Sensor (Edge)
- Supply voltage (DC) 16Vdc-30Vdc (24Vdc nom.)
- Degree of protection IP65 UL type 1
- Primary brand Banner Engineering
- Distance 3/8" / 9.5mm beam spacing/pitch
- Resolution 3/8" / 9.5mm
- Compliant with standard(s) cURus CE
- Material Aluminium housing PVC connector
- Product series / family name A-GAGE series
- Connection type Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector
- Functions Measuring light screen array emitter red LED (status)
- Detectable object size 12.7-19.1mm
- Dimensions 1514mm array length
- Order code / Manufacturer SKU 87734
- Modbus RTU No
- Array Length (mm) 1514
- Beam Spacing 9.5 mm
- Min Temp (°C) -40
- Power Supply 16-30V dc
- IO Link No
- Discrete Output N/A
- Sensing Mode (Detailed) Emitter
- Number of Beams 160
- Emitter/Receiver Range (m) 0.6 - 4.6
- Primary Housing Material Aluminum
- Analog Output N/A
- DeviceNet No
- Max Relative Humidity 0.95
- Device Type Two-Piece
- Housing Length (mm) 1603
- RS-232 No
- Minimum Object Sensitivity (mm) 12.7-19.1
- Power DC
- RS-485 No
- Max Temp (°C) 70
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MAE6032Q Description
Banner Engineering MAE6032Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array applications, functioning as an emitter alone. This part features a 1514mm array length with a rectangular shape and is constructed with an aluminium housing and a PVC connector. It has a 3/8" / 9.5mm beam spacing/pitch and comes pre-wired with a 6" / 150mm PVC pigtail terminated with an M12 mini-style connector. The MAE6032Q operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage. It is designed to function within an ambient air temperature range of -40 to +70°C. This sensor offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. It has a sensing distance ranging from 60cm to 4.6m and a resolution of 3/8" / 9.5mm, capable of detecting object sizes between 12.7mm and 19.1mm.
Related documents MAE6032Q Specs
1-year warranty
