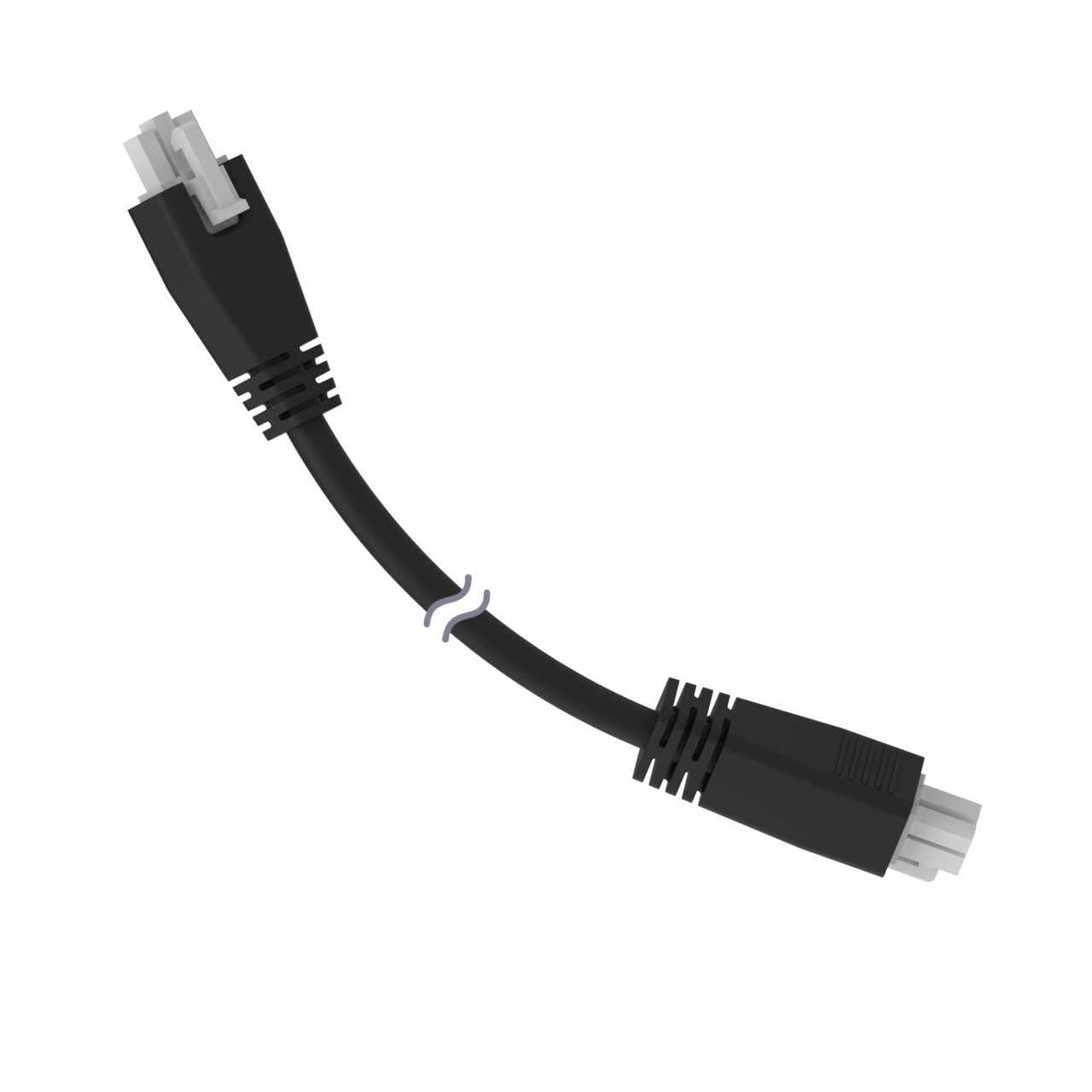

LQMAEC-306SS Banner Cordsets
Part#:LQMAEC-306SS
Manufacturer:Banner
Alt. Part#:85580
Product Lifecycle:Active
Get a quick Quote!
Cordset: Double Ended Molex; 3-pin Straight Female; 4-pin Straight Female; 1.83 m 3x18 Black PVC Jacket; PVC Black
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LQMAEC-306SS Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginTW
- Number of Connectors 2
- Shield/No Shield No Shield
- Secondary Gender Male
- Trunk Length (m) No Trunk
- Primary Number of Conductors 3
- Feature: Hazardous Area No
- Cable Jacket Material PVC
- Primary Gender Male
- Secondary AWG 18
- Number of Contacts 3
- Current Rating (A) 3.0
- Secondary Connector Type Molex
- Minimum Temp. (°C) -40
- IP Rating IP50
- Secondary Orientation Straight
- Maximum Temp. (°C) 105
- Outside Cable Diameter (mm) 6.8
- Primary Coupling Method Slide Snap
- Cable Jacket Color Black
- Coupling Material/Color Nylon
- Secondary Number of Conductors 4
- Connector Body Material/Color PVC Black
- Primary Orientation Straight
- Cordset Length (m) 1.83
- Primary Connector Type Molex
- Secondary Coupling Method Slide Snap
- Voltage Rating (V) 300 V ac/dc
- Primary AWG 18
- Oil/Grease Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LQMAEC-306SS Description
Banner Engineering LQMAEC-306SS is a continuous run cascade cordset/cable designed for automation applications, featuring a length of 1.83 meters (6 feet). It is equipped with a 3-pin MLX straight female connector on one end and a 4-pin MLX straight female connector on the other end, facilitating seamless connectivity and integration into various systems.
