LQMAC-315B Banner Cordsets
Part#:LQMAC-315B
Manufacturer:Banner
Alt. Part#:88123
Product Lifecycle:Active
Get a quick Quote!

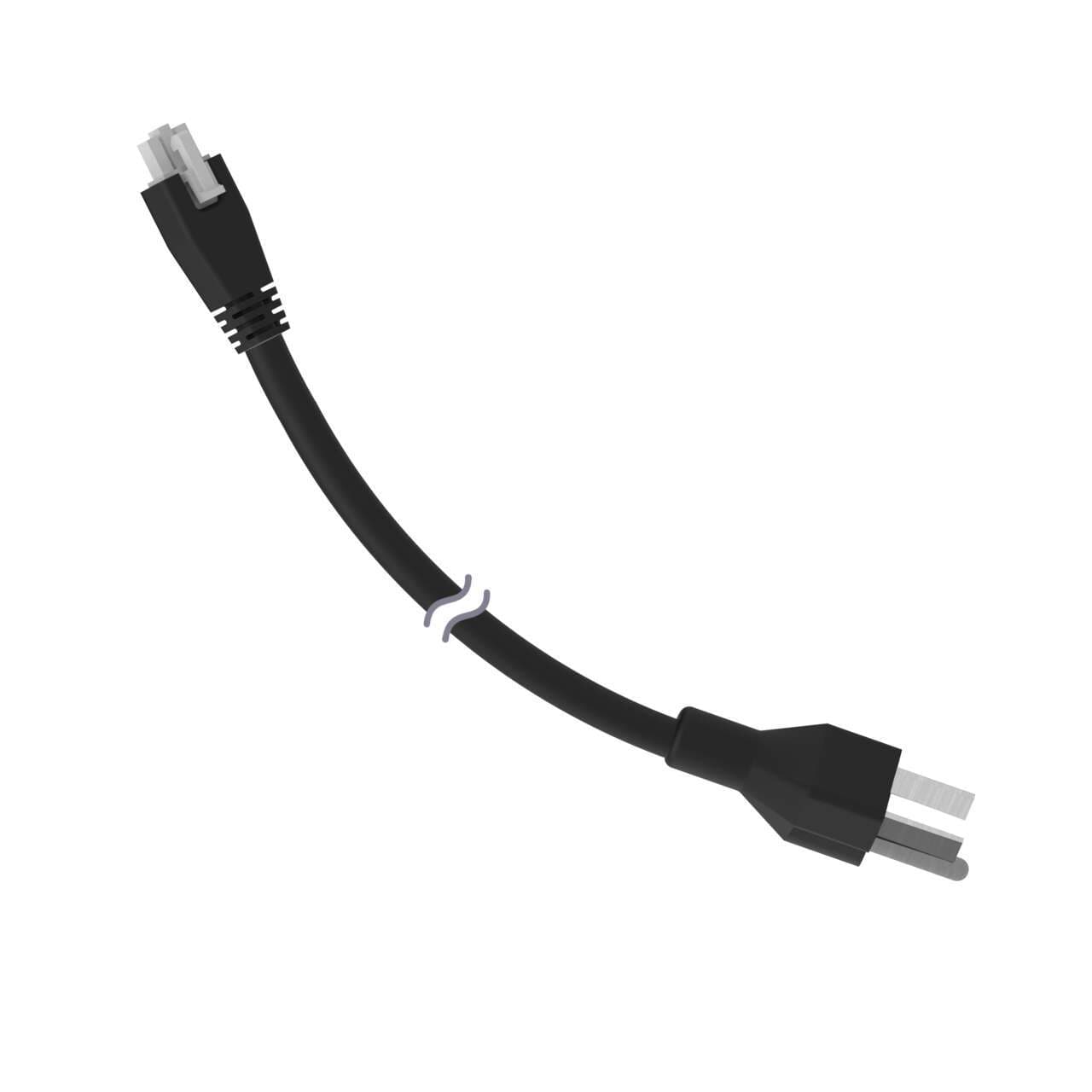

Cordset: Double Ended Molex to AC Plug; 3-pin Straight Female; 3-pin Straight Male; 4.57 m 3x18 Black PVC Jacket; PVC Black
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LQMAC-315B Banner price in the box on the right side or send a quick quote.
Product Details
- Weight323.411096 g
- Country Of OriginTW
- Outside Cable Diameter (mm) 6.8
- Minimum Temp. (°C) -40
- Secondary Gender Male
- Number of Connectors 2
- Maximum Temp. (°C) 105
- Primary Number of Conductors 3
- Cable Jacket Color Black
- Primary Coupling Method Slide Snap
- Cable Jacket Material PVC
- Current Rating (A) 3.0
- Primary AWG 18
- Number of Contacts 3
- Coupling Material/Color Nylon
- Shield/No Shield No Shield
- Voltage Rating (V) 300 V ac/dc
- Cordset Length (m) 4.5
- Primary Gender Male
- Secondary Number of Conductors 3
- Trunk Length (m) No Trunk
- IP Rating IP50
- Secondary Orientation Straight
- Connector Body Material/Color PVC Black
- Primary Connector Type Molex
- Secondary AWG 18
- Secondary Connector Type North & Central America, Japan, Taiwan
- Secondary Coupling Method Wall Plug
- Primary Orientation Straight
- Oil/Grease Resistant No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LQMAC-315B Description
Banner Engineering LQMAC-315B is a supply cable/cordset designed for automation applications, featuring a length of 4.5 meters (approximately 15 feet). It is equipped with a 3-pin MLX straight female connector and 3-pin straight male connectors, adhering to NEMA 5-15 grounded (IEC Type B) standards for electrical connections.
