LQMAC-310B Banner Cordsets
Part#:LQMAC-310B
Manufacturer:Banner
Alt. Part#:88122
Product Lifecycle:Active
In-stock parts: 3
Jun 20, 2025

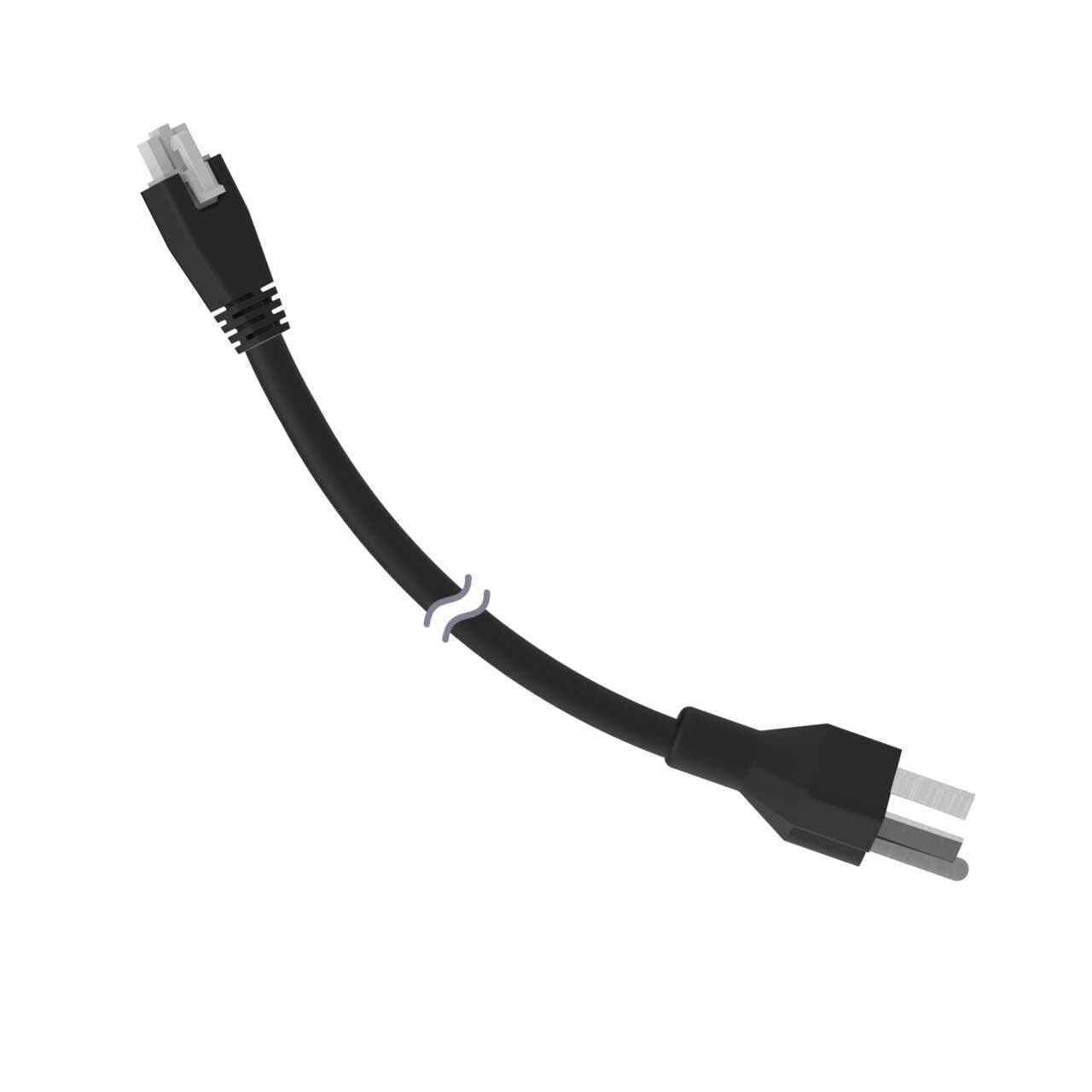

Cordset: Double Ended Molex to AC Plug; 3-pin Straight Female; 3-pin Straight Male; 3.05 m 3x18 Black PVC Jacket; PVC Black
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LQMAC-310B Banner price in the box on the right side or send a quick quote.
Product Details
- Weight226.796 g
- Country Of OriginTW
- Cable Jacket Material PVC
- Primary Orientation Straight
- Oil/Grease Resistant No
- Shield/No Shield No Shield
- Voltage Rating (V) 300 V ac/dc
- Secondary Gender Male
- Trunk Length (m) No Trunk
- Primary Coupling Method Slide Snap
- Secondary AWG 18
- Number of Connectors 2
- Maximum Temp. (°C) 105
- Secondary Coupling Method Wall Plug
- Number of Contacts 3
- Primary Connector Type Molex
- Secondary Orientation Straight
- IP Rating IP50
- Secondary Number of Conductors 3
- Connector Body Material/Color PVC Black
- Current Rating (A) 3.0
- Primary Number of Conductors 3
- Cordset Length (m) 3
- Primary Gender Male
- Feature: Hazardous Area No
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Primary AWG 18
- Outside Cable Diameter (mm) 6.8
- Coupling Material/Color Nylon
- Secondary Connector Type North & Central America, Japan, Taiwan
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LQMAC-310B Description
Banner Engineering LQMAC-310B is a supply cable/cordset designed for automation applications, featuring a length of 3 meters (approximately 10 feet). It is equipped with a 3-pin MLX straight female connector and 3-pin straight male connectors, conforming to NEMA 5-15 grounded (IEC Type B) standards.
