K50PTVAMGRY3Q Banner Pick-to-Light Sensors
Part#:K50PTVAMGRY3Q
Manufacturer:Banner
Alt. Part#:807911
Product Lifecycle:Active
Get a quick Quote!
K50 Pro Touch Series: 3-Color RGB Touch Sensor with Vibration Feedback; 12-30 V dc; Polycarbonate; IP67 IP69K; Bimodal, NO, Momentary; Multicolor; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PTVAMGRY3Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight182.797576 g
- Country Of OriginMX
- Actuation Yes
- Number of Colors / Segments 3
- Output Type Bipolar (NPN & PNP)
- Mounting Thread M30 x 1.5
- Product Size (mm) 50
- Color Option 2 Red
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Lumens Color 3 23.8
- Color 3 - Wavelength/Color Temp/Coordinates 576 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 522 nm
- Supply Voltage 12-30 V dc
- Activation Function Capacitive Touch
- Power Source DC
- Color Option 1 Green
- Cable Length (m) 2
- Color Technology RGB Configurable
- Number of Input Pins/Conductors 5
- Power DC
- Quick Disconnect Type M12 (Euro)
- Pick-to-Light Function F2
- Housing Style Base Mount - Dome Window
- Lumens Color 1 16.5
- Color 2 - Wavelength/Color Temp/Coordinates 620 nm
- Button Operation Momentary
- Modbus RTU No
- IO Link No
- Feature: Washdown Rated Yes
- I/O Block Compatible Yes
- Operation Normally Open
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Color Option 3 Yellow
- Max Current Color (mA) 150
- Storage Temp (°C) -40 to 70
- Max Output Response Time (ms) 300
- Primary Housing Color Black
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) Yes
- Max Input Response Time (ms) 40
- Input Type Bimodal (PNP/NPN)
- Environmental Rating IP67; IP69
- Feature: Audible No
- Feature: Hazardous Area No
- Vibration Feedback Yes
- Min Op. Temperature (°C) -40
- Wireless No
- Lumens Color 2 8.3
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Simultaneous Colors On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50PTVAMGRY3Q Description

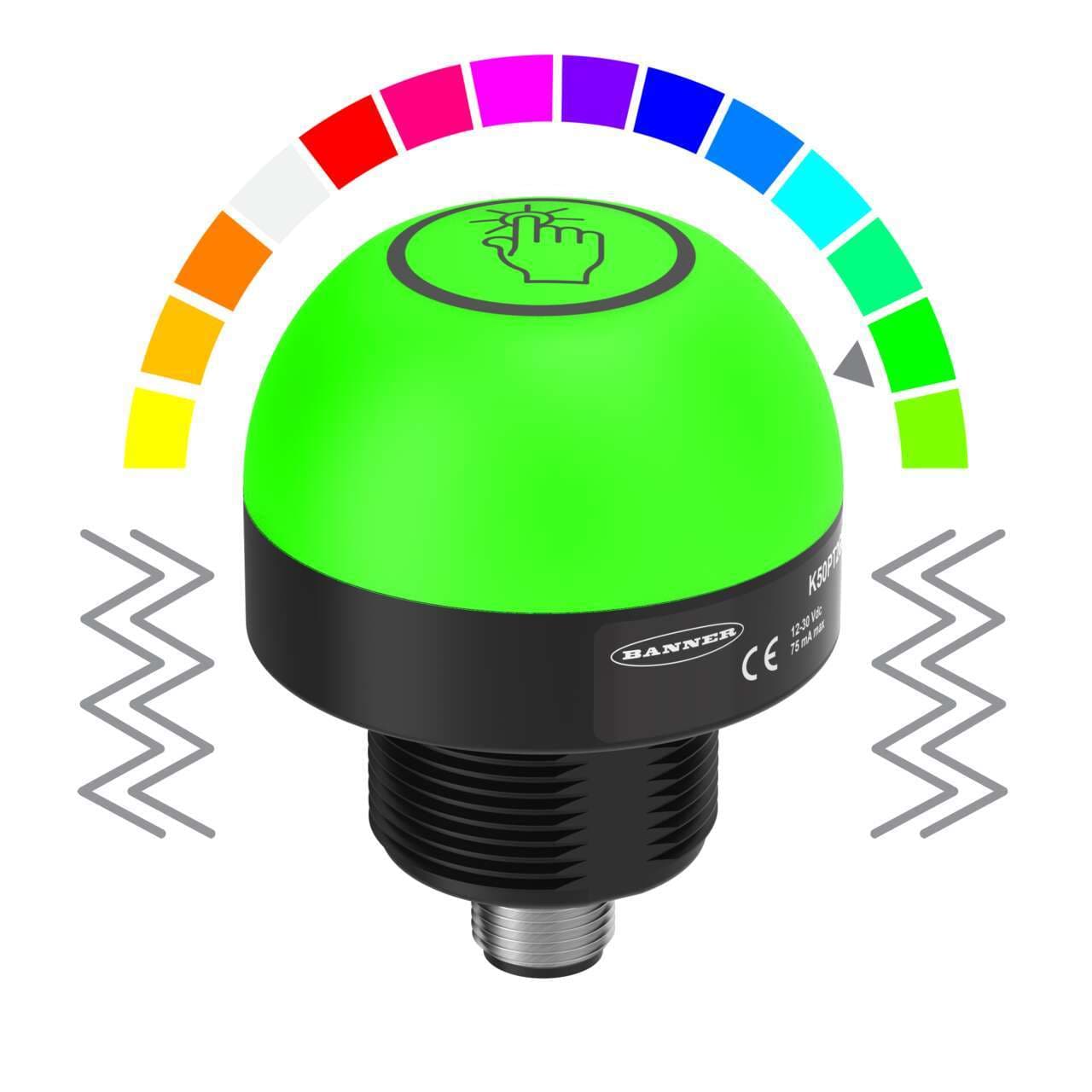

Banner Engineering K50PTVAMGRY3Q is an illuminated capacitive touch-sensitive button featuring vibration haptic feedback and 14-color RGB multicolor LED illumination. This part comes in a black housing with a dome window shape, constructed from polycarbonate. It is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The supply voltage requirement is 12Vdc to 30Vdc, with a nominal 24Vdc. It supports surface or base pole mounting with an M30 thread and has a 50mm / 2" dome diameter. The ambient air temperature for operation ranges from -40°C to +50°C. This part offers a degree of protection rated at IP67 and IP69K, operates in a latched NO (Normally Open) touch output mode, consumes 150mA of current, and includes 4 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
