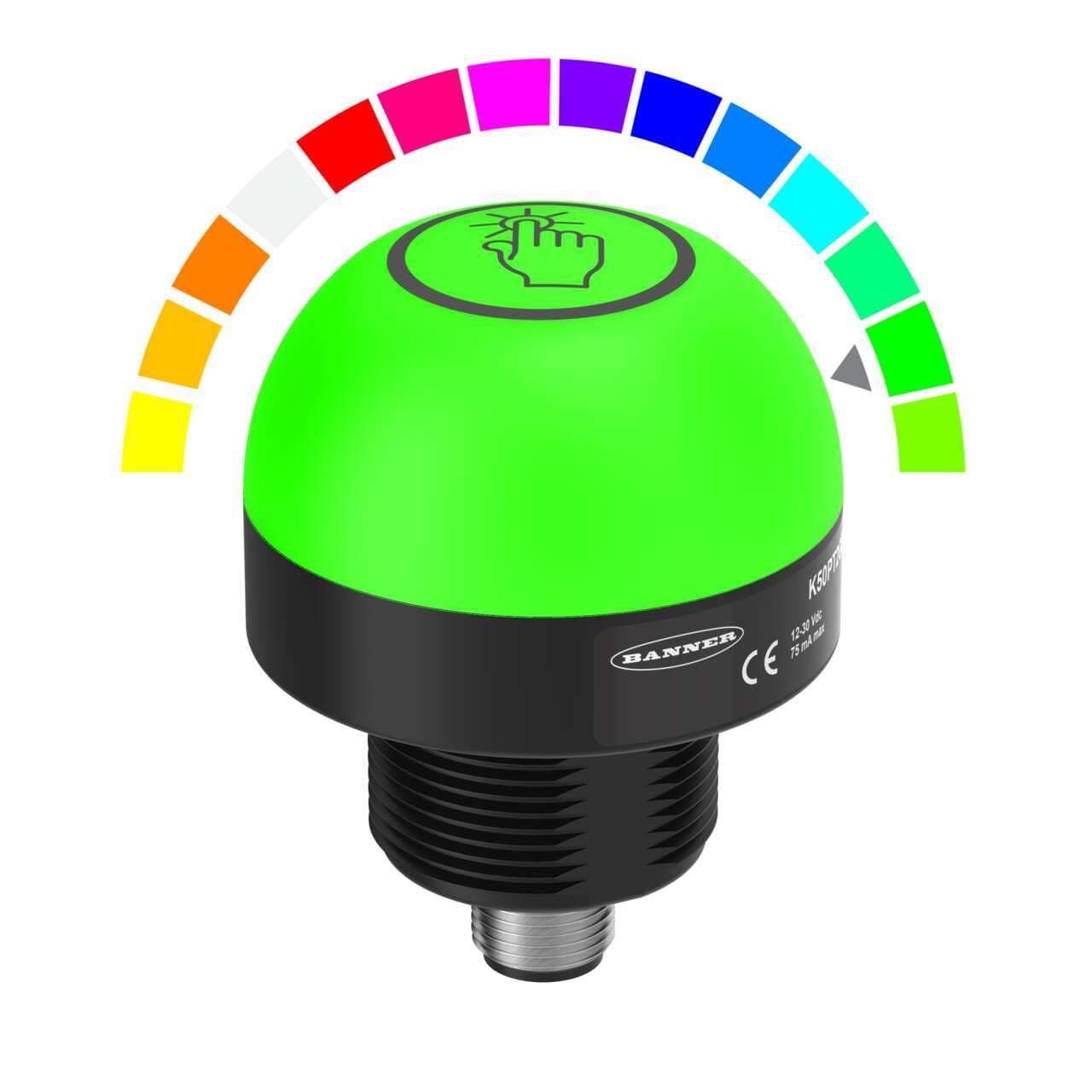

K50PTKQ Banner Pick-to-Light Sensors
Part#:K50PTKQ
Manufacturer:Banner
Alt. Part#:806180
Product Lifecycle:Active
Get a quick Quote!
K50 Pro Touch with IO-Link Series: RGB Touch Sensor; 18-30 V dc; Polycarbonate; IP67 IP69K; Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PTKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Actuation Yes
- Number of Input Pins/Conductors 4
- Color Option 1 RGB
- Feature: Audible No
- Cable Length (m) 0.15
- Pick-to-Light Function Programmable
- Product Size (mm) 50
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Chemical Resistant No
- Storage Temp (°C) -40 to 70
- Wireless No
- Output Type Communication Protocol
- Primary Housing Color Black
- IO Link Yes
- Activation Function Capacitive Touch
- Quick Disconnect Type M12 (Euro)
- Power DC
- Dimming Option Programmable
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Button Operation Programmable
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Max Current Color (mA) 115
- I/O Block Compatible Yes
- Primary Window Material Polycarbonate Diffused
- Color Input Control Communication Protocol
- Animation Option 1 Programmable
- Max Output Response Time (ms) 300
- Feature: Washdown Rated Yes
- Power Source DC
- Number of Colors / Segments Programmable
- Supply Voltage 18-30 V dc
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Housing Style Base Mount - Dome Window
- Color Technology RGB IO-Link
- Operation Programmable
- Max Op. Temperature (°C) 50
- Multi-Color Device Simultaneous Colors On
- Input Type Communication Protocol
- Feature: Hazardous Area No
- Environmental Rating IP67; IP69
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50PTKQ Description
K50 Pro Touch with IO-Link Series: RGB Touch Sensor, Voltage: 18-30 V dc; Housing: Polycarbonate, Environ. Rating: IP67 IP69K; Colors: Multicolor, Euro 4-Pin Quick-Disconnect
