K50PTKQP Banner Pick-to-Light Sensors
Part#:K50PTKQP
Manufacturer:Banner
Alt. Part#:806182
Product Lifecycle:Active
Get a quick Quote!

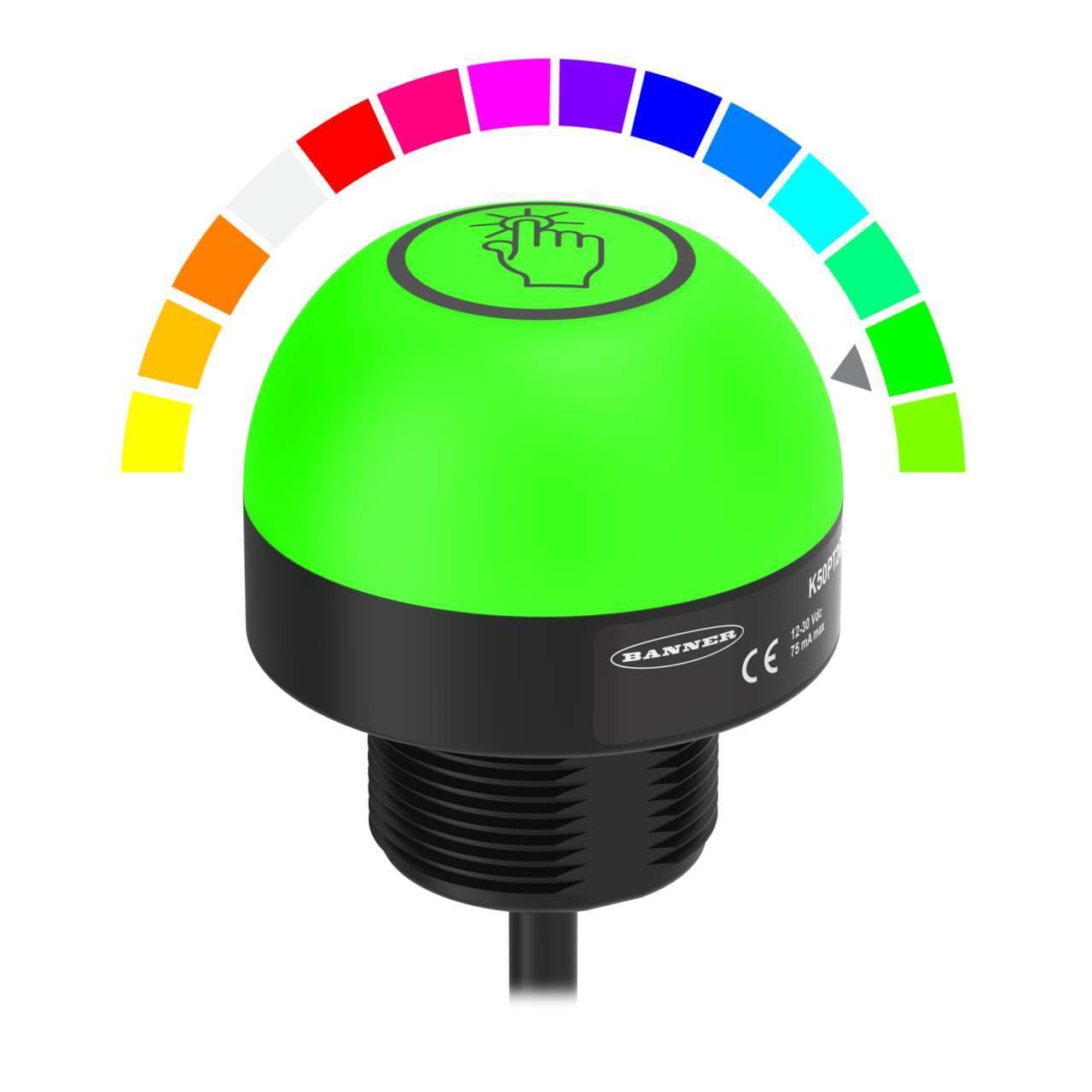

K50 Pro Touch with IO-Link Series: RGB Touch Sensor; 18-30 V dc; Polycarbonate; IP67 IP69K; Multicolor; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PTKQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Power Source DC
- Color Option 1 RGB
- Housing Style Base Mount - Dome Window
- Activation Function Capacitive Touch
- Max Current Color (mA) 115
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Operation Programmable
- Environmental Rating IP67; IP69
- Color Input Control Communication Protocol
- Dimming Option Programmable
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Power DC
- Animation Option 1 Programmable
- Number of Input Pins/Conductors 4
- Max Output Response Time (ms) 300
- Button Operation Programmable
- Number of Colors / Segments Programmable
- Color Technology RGB IO-Link
- Mounting Thread M30 x 1.5
- Pick-to-Light Function Programmable
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Actuation Yes
- Product Size (mm) 50
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Modbus RTU No
- Output Type Communication Protocol
- Primary Housing Color Black
- Supply Voltage 18-30 V dc
- Input Type Communication Protocol
- IO Link Yes
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Multi-Color Device Simultaneous Colors On
- Feature: Washdown Rated Yes
- Wireless No
- I/O Block Compatible Yes
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Feature: Chemical Resistant No
- Max Op. Temperature (°C) 50
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50PTKQP Description
K50 Pro Touch with IO-Link Series: RGB Touch Sensor, Voltage: 18-30 V dc; Housing: Polycarbonate, Environ. Rating: IP67 IP69K; Colors: Multicolor, Euro 4-pin 150mm (6in) PVC Pigtail Connector
