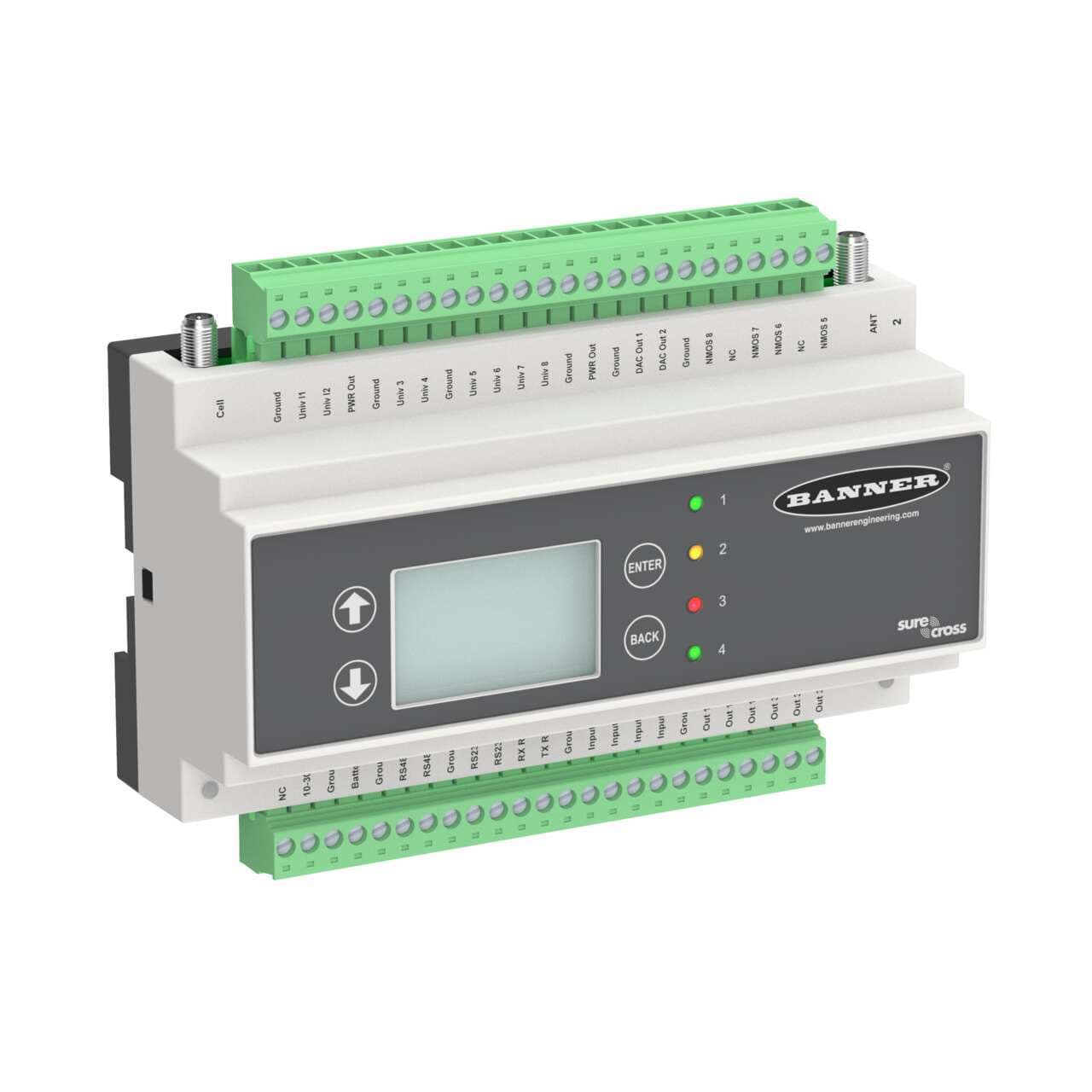

DXM1500-B1R2 Banner I/O Modules
Part#:DXM1500-B1R2
Manufacturer:Banner
Alt. Part#:807406
Product Lifecycle:Active
Get a quick Quote!
DXM1500 Controller; Multihop Radio 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM1500-B1R2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight662.24432 g
- Country Of OriginUS
- Dimension Length (mm) 150
- 1-wire Serial Interface No
- Output Details 2 Relay, 4 NMOS, 2 Analog
- Min Temp Operating Conditions -20
- EtherNet/IP Yes
- Housing Style External Terminals
- Power Supply 12-30 V dc
- Star Topology No
- RS-232 Yes
- Input Details 2 Isolated discrete and 8 Universal
- Max Temp Operating Conditions 60
- Feature: Hazardous Area No
- RS-485 Yes
- Analog Inputs Yes
- Point-to-Point Topology Yes
- Application: Temperature Input Yes
- Input/Output Analog & Discrete
- Environmental Rating (IP) IP20
- Processing Speed (MHz) 300
- Modbus/TCP Yes
- Device Type Wireless Controller with MultiHop Radio
- LCD Display Yes
- On-Board Memory (MB) 16
- Wireless Yes
- Discrete Inputs Yes
- Tree Topology Yes
- PROFINET Yes
- Discrete Outputs Yes
- Relative Humidity 95%
- Modbus RTU Yes
- Power DC
- Analog Outputs Yes
- Point-to-Multipoint Topology Yes
- Application: Indicator Light Yes
- Wireless Radio Frequency 900 MHz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM1500-B1R2 Description
Banner Engineering DXM1500-B1R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A). Additionally, it has 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM1500-B1R2 operates with a 300MHz processing speed, suitable for applications requiring a high I/O count, and features isolated inputs and a built-in relay. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports multiple communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. The controller has a memory capacity of 16MB (on-board) and supports an SD card up to 8GB. It utilizes a 900MHz ISM band 1W radio (HE5 MultiHop data radio; North America) for transmission, capable of reaching a maximum distance of 9.6km at nominal emission power.
Related documents DXM1500-B1R2 Specs
