DXM150-B2R1 Banner I/O Modules

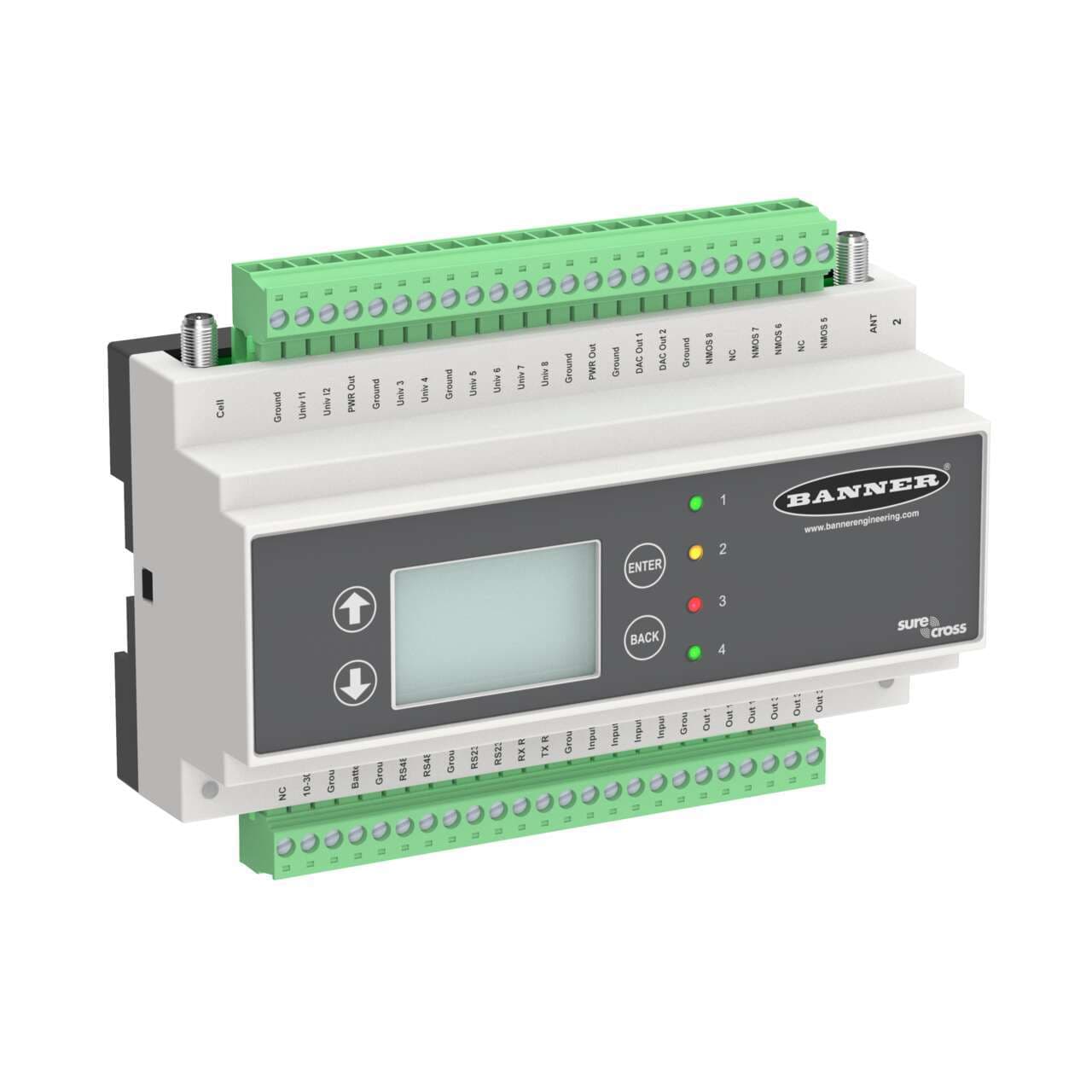

Banner Engineering DXM150-B2R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 8 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA), and digital inputs including 2 x 12-30Vdc isolated inputs and 8 x 12Vdc-30Vdc (Sink/Source/Counter) inputs, which can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM150-B2R1 operates on a 900 MHz transmission frequency with a maximum transmission distance of 9.6km. It incorporates a 100MHz processing speed suitable for high I/O count applications, utilizes FHSS (Frequency Hopping Spread Spectrum) technology, and is powered by a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). Communication protocols supported are RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP. Memory capacity includes 2MB of on-board memory and an 8GB SD card. This device is part of the DXM150-B2 series and is designed for Modbus I/O controller functions.
