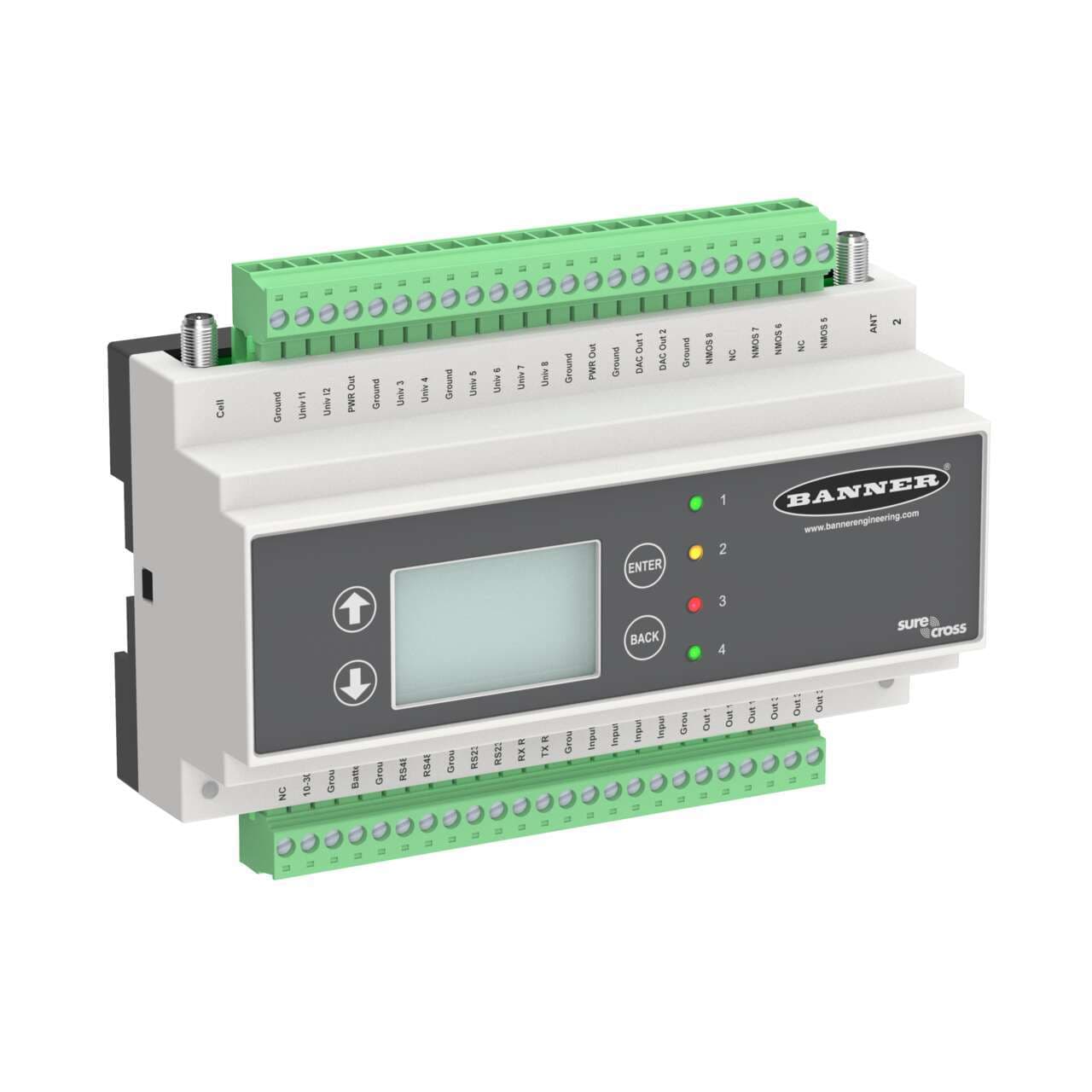

DXM150-B1R1 Banner I/O Modules
Part#:DXM150-B1R1
Manufacturer:Banner
Alt. Part#:91026
Product Lifecycle:Active
Get a quick Quote!
DXM150 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM150-B1R1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight662.24432 g
- Country Of OriginUS
- Dimension Length (mm) 150
- RS-485 Yes
- Discrete Inputs Yes
- Output Details 2 Relay, 4 NMOS, 2 Analog
- Point-to-Point Topology Yes
- 1-wire Serial Interface No
- Input Details 2 Isolated discrete and 8 Universal
- Power Supply 12-30 V dc
- Tree Topology No
- PROFINET No
- Analog Inputs Yes
- Star Topology Yes
- Application: Temperature Input Yes
- Wireless Radio Frequency 900 MHz
- Input/Output Analog & Discrete
- LCD Display Yes
- Processing Speed (MHz) 100
- Modbus RTU Yes
- Housing Style External Terminals
- Relative Humidity 95%
- Application: Indicator Light Yes
- Discrete Outputs Yes
- Point-to-Multipoint Topology Yes
- EtherNet/IP Yes
- Power DC
- Environmental Rating (IP) IP20
- On-Board Memory (MB) 2
- Modbus/TCP Yes
- Device Type Wireless Controller with Performance Gateway
- Max Temp Operating Conditions 60
- Application: Object Counting Yes
- RS-232 Yes
- Analog Outputs Yes
- Min Temp Operating Conditions -20
- Feature: Hazardous Area No
- Wireless Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM150-B1R1 Description
Banner Engineering DXM150-B1R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). It utilizes a 100MHz processing speed suitable for high I/O count applications, features isolated inputs, a built-in relay, and employs FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor and CAN support. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector, with a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.). The DXM150-B1R1 supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols, has a memory capacity of 2MB (on-board) and 8GB (SD card), and operates on a 900MHz ISM band 1W radio (PE5 performance radio; North America) capable of a maximum 9.6km transmission distance at nominal emission power. Its dimensions are H93.9mm x W156mm x D94.6mm.
Related documents DXM150-B1R1 Specs
1-year warranty
