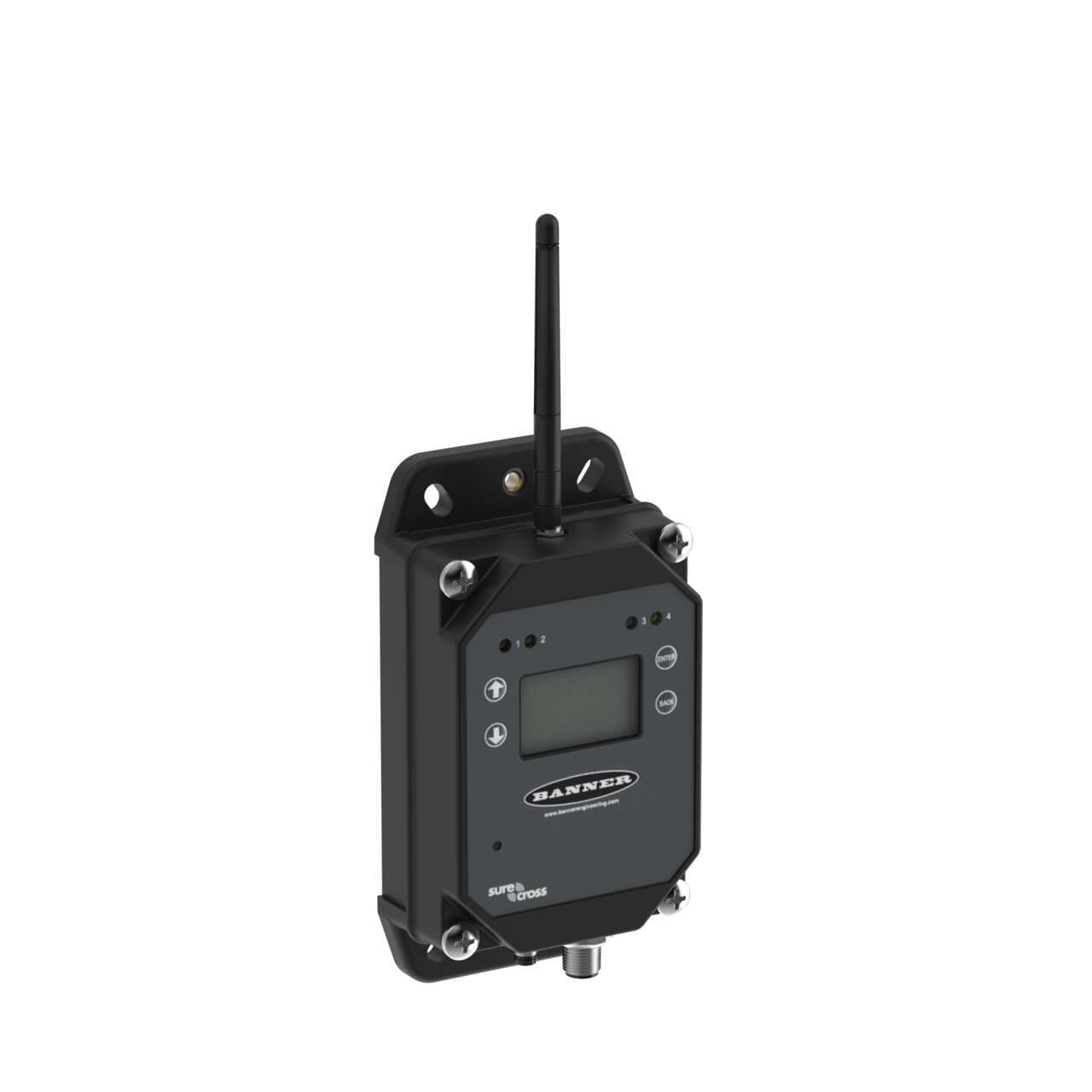

DXM1200-B1R3 Banner I/O Modules
Part#:DXM1200-B1R3
Manufacturer:Banner
Alt. Part#:805550
Product Lifecycle:Active
Get a quick Quote!
DXM1200 Controller; DX80 Performance Gateway 2.4 GHz 65 mW; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet (M8)
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM1200-B1R3 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight508.02304 g
- Country Of OriginUS
- Device Type Wireless Controller with Performance Gateway
- Point-to-Point Topology Yes
- Modbus RTU Yes
- Max Temp Operating Conditions 60
- On-Board Memory (MB) 16
- PROFINET Yes
- Power Supply 12-30 V dc
- Tree Topology No
- RS-232 No
- LCD Display Yes
- Processing Speed (MHz) 300
- Wireless Yes
- Environmental Rating (IP) IP67
- RS-485 Yes
- Feature: Hazardous Area No
- Min Temp Operating Conditions -20
- Star Topology Yes
- Wireless Radio Frequency 2.4 GHz
- Point-to-Multipoint Topology Yes
- Housing Style IP67 Internal Antenna
- Modbus/TCP Yes
- Relative Humidity 95%
- Application: Indicator Light Yes
- 1-wire Serial Interface No
- Power DC
- EtherNet/IP Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM1200-B1R3 Description
Banner Engineering DXM1200-B1R3 is a remote I/O controller designed for surface mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. The dimensions of this part are H50.9mm x W170.5mm x D90.8mm. It utilizes a transmission frequency of 2400 MHz and is part of the DXM1200-B1 series. This model features a 300MHz processing speed for efficient data aggregation of sensors and wireless networks, employing FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor for enhanced performance. Connection options include a 4-pin M8 male connector for Ethernet, a 5-pin M12 male connector, and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). It supports multiple communication protocols, including RS-485 Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. The memory capacity comprises 16MB of on-board memory and an 8GB SD card. Operating on the 2.4GHz ISM band with a 65mW radio (PE5 performance radio; worldwide), it can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DXM1200-B1R3 Specs
1-year warranty
