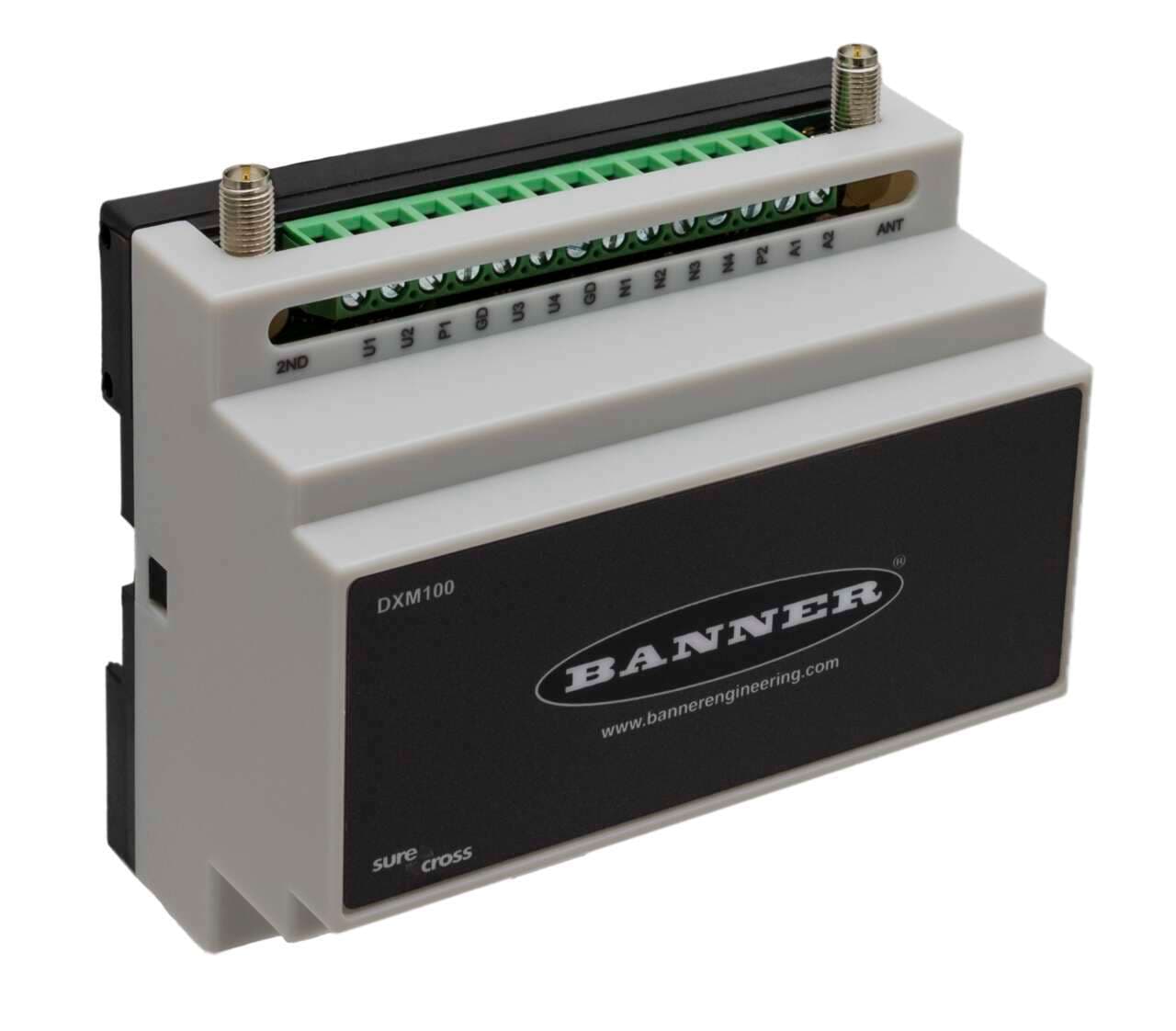

DXM100-S2R2 Banner I/O Modules
Part#:DXM100-S2R2
Manufacturer:Banner
Alt. Part#:800837
Product Lifecycle:Active
Get a quick Quote!
DXM100 Modbus Slave Device; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; RS485
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-S2R2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight385.5532 g
- Country Of OriginUS
- Application: Soil Moisture Monitoring Yes
- Housing Style External Terminals
- Discrete Outputs Yes
- Min Temp Operating Conditions -40
- Star Topology Yes
- Modbus/TCP No
- Analog Inputs Yes
- Min Operating Temperature ( °C) -40
- Tree Topology Yes
- Modbus RTU Yes
- Input/Output Analog & Discrete
- Power Supply 12-30 V dc
- EtherNet/IP No
- On-Board Memory (MB) N/A
- RS-232 Yes
- Device Type Modbus Slave Device
- Input Details 4 Universal Inputs, SDI-12 interface
- Dimension Length (mm) 100
- PROFINET No
- Analog Outputs Yes
- Environmental Rating (IP) IP20
- Max Temp Operating Conditions 60
- Point-to-Multipoint Topology Yes
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 85
- Processing Speed (MHz) N/A
- Wireless Yes
- Power DC
- Valve Control Yes
- Output Details 4 NMOS Discrete, 2 Analog, 2 DC Latching
- Point-to-Point Topology Yes
- RS-485 Yes
- Application: Object Counting Yes
- 1-wire Serial Interface No
- Wireless Radio Frequency 900 MHz
- Relative Humidity 95%
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-S2R2 Description
Banner Engineering DXM100-S2R2 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers 2 analog outputs (0-10Vdc) and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4AI (4-20mA / 0-10Vdc / 10kΩ thermistor). This device is characterized by an IP20 degree of protection and has dimensions of H61.1mm x W105.3mm x D94.7mm. It utilizes a 900 MHz transmission frequency with a maximum transmission distance of 9.6km at nominal emission power, facilitated by HE5 MultiHop data radio technology for North America. The DXM100-S2 series includes SDI-12 data collection for smart valve control and employs FHSS (Frequency Hopping Spread Spectrum) technology. Connection is made through an RP-SMA connector, and it is powered by a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.). Communication is enabled via RS-485 Modbus RTU protocol, and it has an 8GB memory capacity through an SD card.
Related documents DXM100-S2R2 Specs
