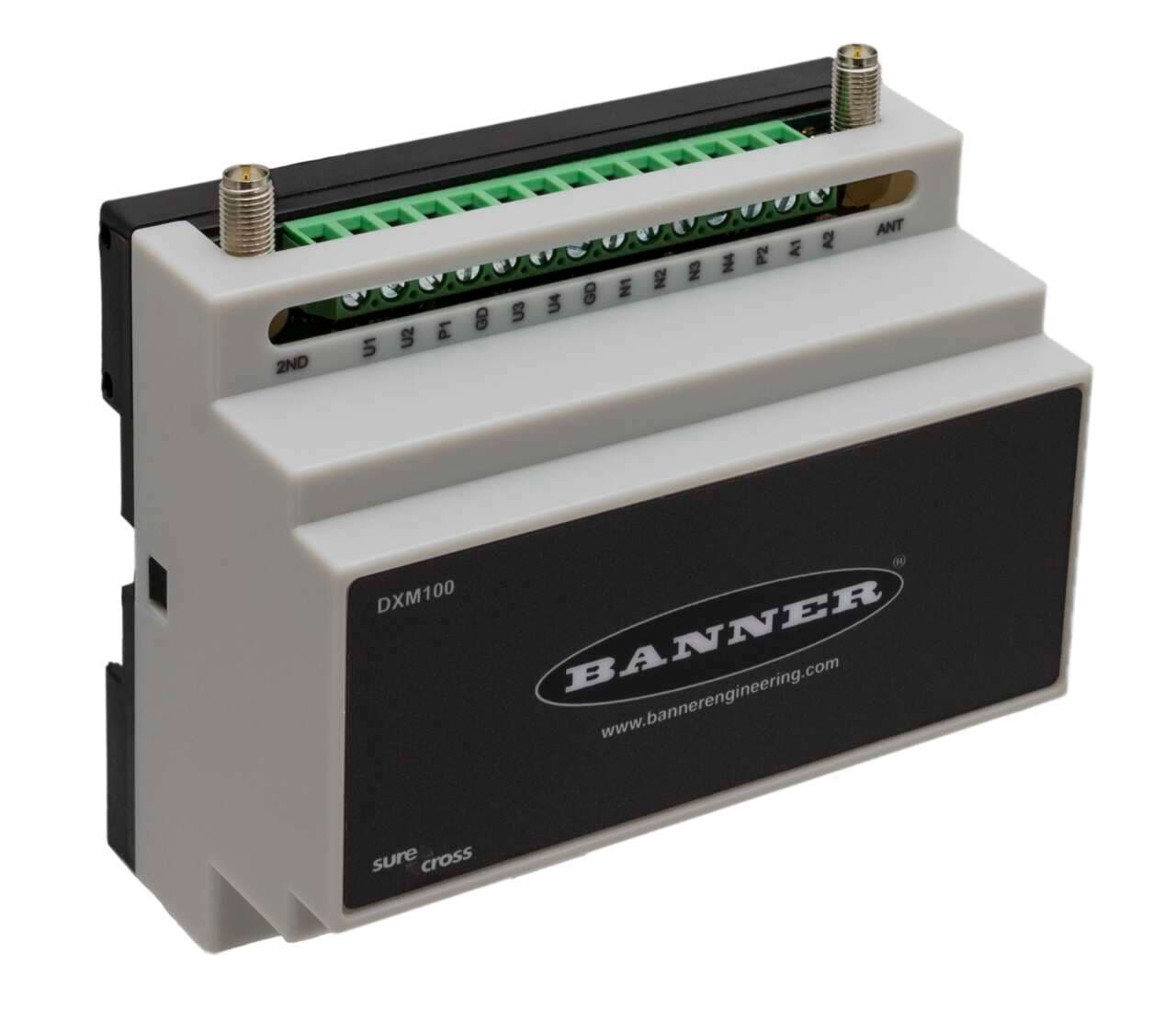

DXM100-S1R4 Banner I/O Modules
Part#:DXM100-S1R4
Manufacturer:Banner
Alt. Part#:801573
Product Lifecycle:Active
Get a quick Quote!
DXM100 Modbus Slave Device; MultiHop Radio 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; RS485
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-S1R4 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight385.5532 g
- Country Of OriginUS
- Device Type Modbus Slave Device
- Discrete Inputs Yes
- Housing Style External Terminals
- Power DC
- Input Details 4 Universal Inputs
- Analog Inputs Yes
- Point-to-Point Topology Yes
- Power Supply 12-30 V dc
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- Max Temp Operating Conditions 60
- Point-to-Multipoint Topology Yes
- Tree Topology Yes
- Star Topology Yes
- Dimension Length (mm) 100
- Processing Speed (MHz) N/A
- Feature: Hazardous Area No
- Modbus RTU Yes
- Input/Output Analog & Discrete
- Min Temp Operating Conditions -20
- EtherNet/IP No
- Wireless Yes
- Analog Outputs Yes
- Discrete Outputs Yes
- Relative Humidity 95%
- Environmental Rating (IP) IP20
- On-Board Memory (MB) N/A
- Modbus/TCP No
- 1-wire Serial Interface No
- RS-485 Yes
- Wireless Radio Frequency 2.4 GHz
- RS-232 No
- PROFINET No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-S1R4 Description
Banner Engineering DXM100-S1R4 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers 2 analog outputs (4-20mA / 0-10Vdc), ensuring compatibility with various sensors and actuators. The device provides a degree of protection rated at IP20 and measures H61.1mm x W105.3mm x D94.7mm. It includes 4 digital outputs (12Vdc-30Vdc; NMOS; 1A) and 4 digital inputs (12-30Vdc; Sink/Source/Counter), which can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor) for flexible connectivity options. The DXM100-S1R4 utilizes FHSS (Frequency Hopping Spread Spectrum) technology for secure and reliable wireless communication and features an RP-SMA connector for network connectivity. It supports a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.) and uses the RS-485 Modbus RTU communication protocol. With an 8GB memory capacity via an SD card, it accommodates substantial data logging and program storage. The device operates on a 2.4GHz ISM band 65mW radio (HE5 MultiHop data radio; worldwide) and can achieve a maximum transmission distance of 3.2km at nominal emission power, making it suitable for a wide range of industrial applications.
