DXM100-S1 Banner I/O Modules
Part#:DXM100-S1
Manufacturer:Banner
Alt. Part#:95655
Product Lifecycle:Active
Get a quick Quote!
DXM100 Modbus Slave Device; I/O Base Board Only; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; RS485
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-S1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight299.37072 g
- Country Of OriginUS
- Device Type Modbus Slave Device
- Power DC
- Power Supply 12-30 V dc
- Analog Inputs Yes
- Input Details 4 Universal Inputs
- Discrete Outputs Yes
- Analog Outputs Yes
- Housing Style External Terminals
- Environmental Rating (IP) IP20
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- Relative Humidity 95%
- Max Operating Temperature ( °C) 85
- Min Operating Temperature ( °C) -40
- Min Temp Operating Conditions -20
- Processing Speed (MHz) N/A
- Feature: Hazardous Area No
- Dimension Length (mm) 100
- EtherNet/IP No
- RS-485 Yes
- RS-232 No
- PROFINET No
- Wireless Radio Frequency N/A
- 1-wire Serial Interface No
- Max Temp Operating Conditions 60
- On-Board Memory (MB) N/A
- Wireless No
- Discrete Inputs Yes
- Modbus RTU Yes
- Input/Output Analog & Discrete
- Modbus/TCP No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-S1 Description

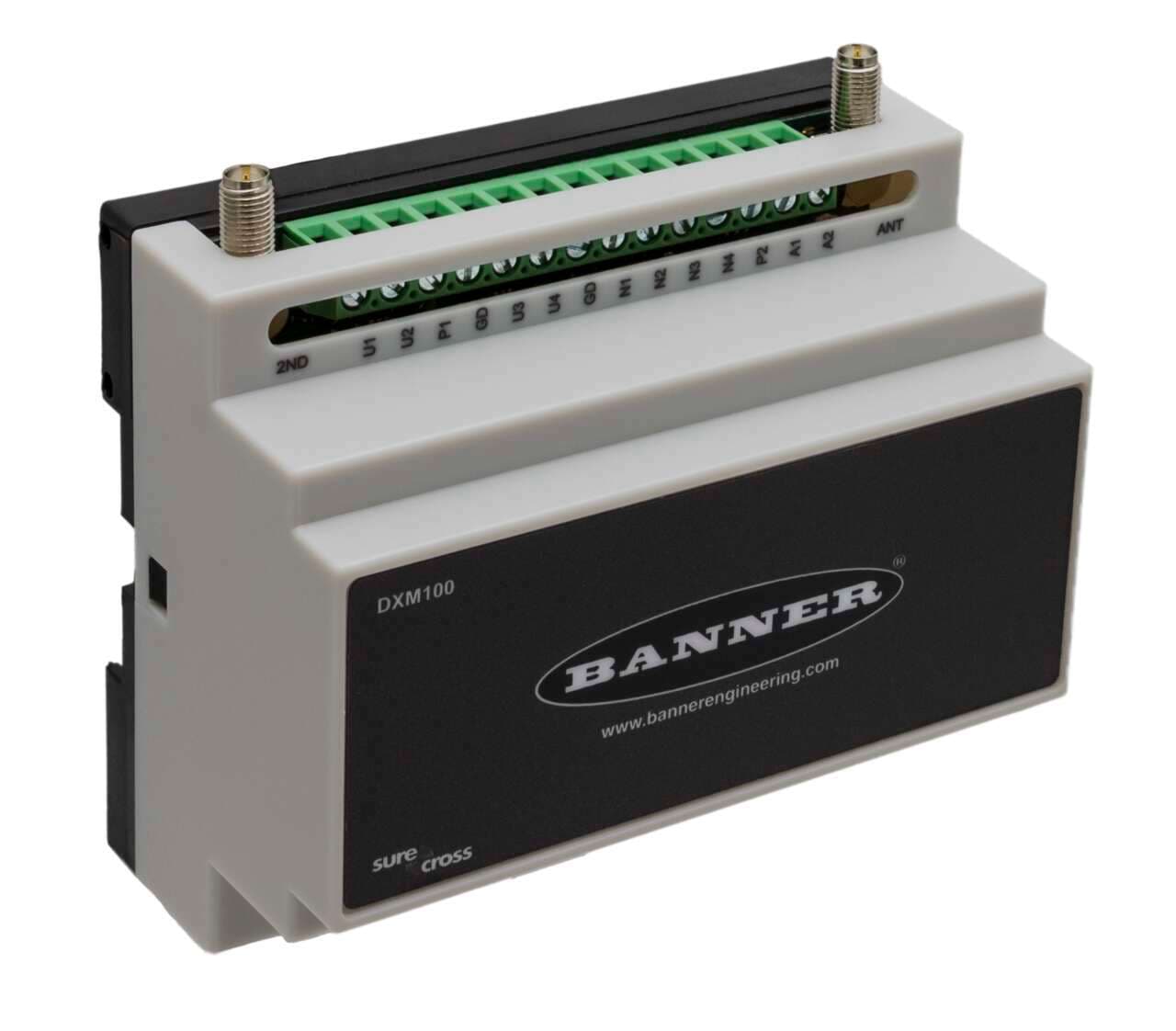

Banner Engineering DXM100-S1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (4-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-S1 supports wireless Modbus peripheral functionality, belongs to the DXM100-S1 series, and is designed as an I/O base board only. It utilizes an RP-SMA connector for connections, requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.), and communicates via RS-485 Modbus RTU. Additionally, it has a memory capacity of 8GB using an SD card.
Related documents DXM100-S1 Specs
