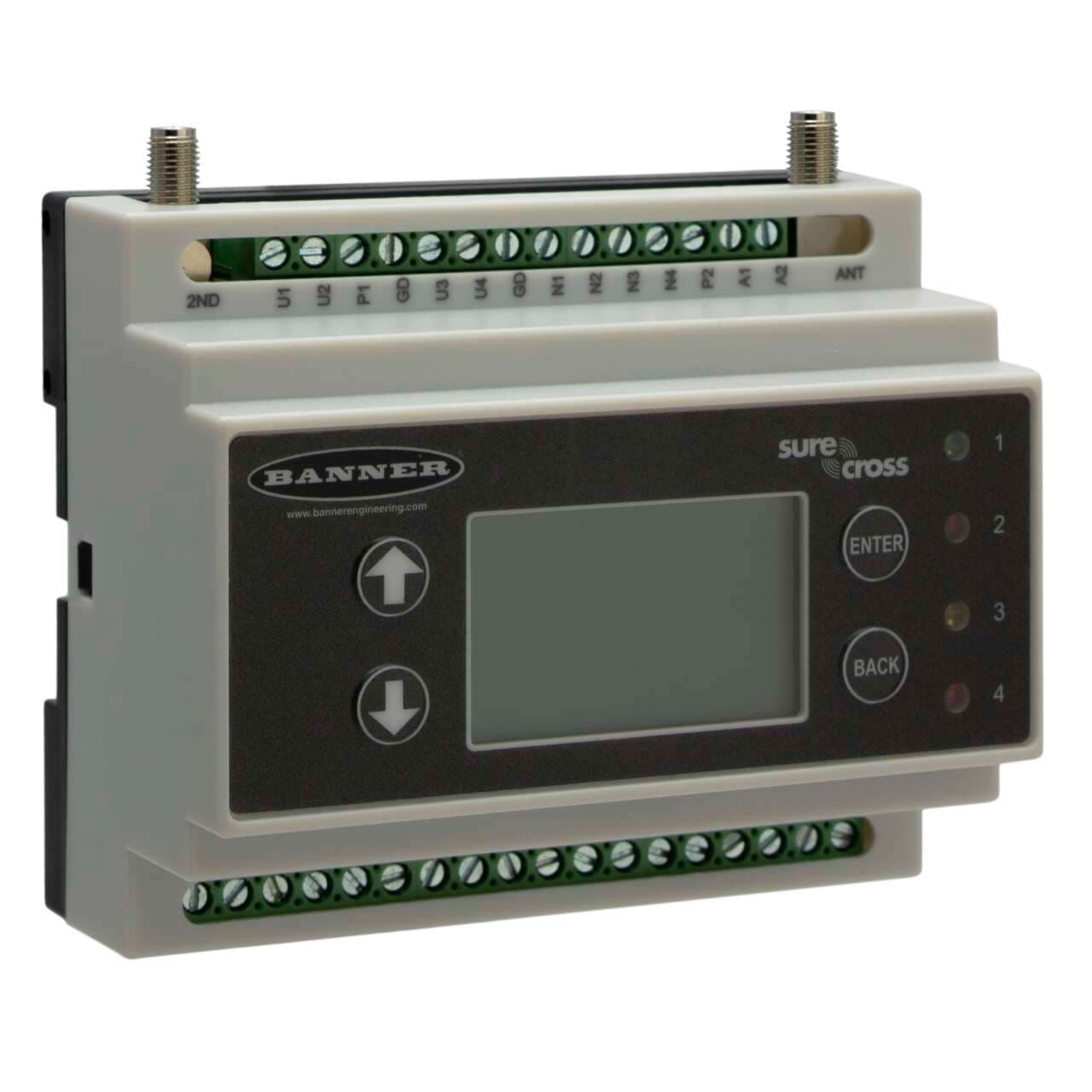

DXM100-B2R2 Banner I/O Modules
Part#:DXM100-B2R2
Manufacturer:Banner
Alt. Part#:800835
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; SAM4 Processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B2R2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight498.9512 g
- Country Of OriginUS
- Housing Style External Terminals
- Environmental Rating (IP) IP20
- Processing Speed (MHz) 100
- Discrete Inputs Yes
- Relative Humidity 95%
- Application: Object Counting Yes
- Wireless Yes
- Discrete Outputs Yes
- Max Temp Operating Conditions 60
- Star Topology Yes
- EtherNet/IP Yes
- Device Type Wireless Controller with MultiHop Radio
- Point-to-Multipoint Topology Yes
- Application: Temperature Input Yes
- Output Details 4 NMOS Discrete, 2 Analog, 2 DC Latching
- Power DC
- Min Temp Operating Conditions -20
- Analog Outputs Yes
- Max Operating Temperature ( °C) 80
- Tree Topology Yes
- Modbus/TCP Yes
- Valve Control Yes
- Input Details 4 Universal Inputs, SDI-12 interface
- Feature: Hazardous Area No
- PROFINET No
- Wireless Radio Frequency 900 MHz
- Analog Inputs Yes
- Min Operating Temperature ( °C) -20
- Dimension Length (mm) 100
- RS-232 No
- Input/Output Analog & Discrete
- LCD Display Yes
- Power Supply 12-30 V dc
- 1-wire Serial Interface No
- Application: Soil Moisture Monitoring Yes
- On-Board Memory (MB) 2
- Modbus RTU Yes
- RS-485 Yes
- Point-to-Point Topology Yes
- Application: Indicator Light Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-B2R2 Description
Banner Engineering DXM100-B2R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-B2R2 supports a transmission frequency of 900 MHz and includes functions such as a Modbus I/O controller with SDI-12 data collection, 100MHz processing speed for smart valve control, and FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP. The memory capacity is 2MB for on-board memory and 8GB for an SD card. The frequency is set at the 900MHz ISM band with a 1W radio (HE5 MultiHop data radio; North America), capable of a maximum transmission distance of 9.6km at nominal emission power.
Related documents DXM100-B2R2 Specs
