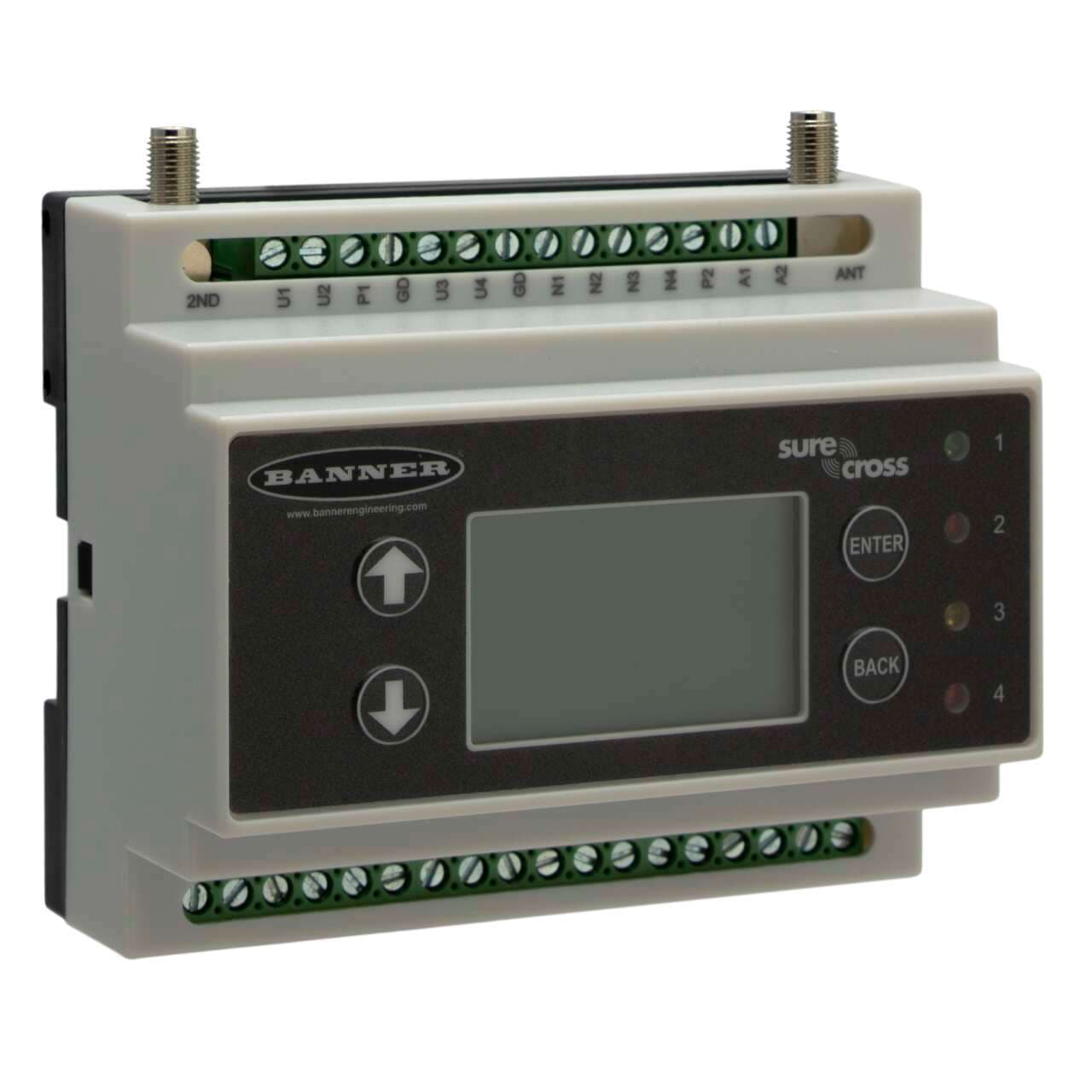

DXM100-B2R1 Banner I/O Modules
Part#:DXM100-B2R1
Manufacturer:Banner
Alt. Part#:802359
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B2R1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight503.48712 g
- Country Of OriginUS
- Device Type Wireless Controller with Performance Gateway
- Valve Control Yes
- On-Board Memory (MB) 2
- RS-485 Yes
- Discrete Inputs Yes
- Power DC
- Relative Humidity 95%
- Feature: Hazardous Area No
- Input/Output Analog & Discrete
- Environmental Rating (IP) IP20
- Processing Speed (MHz) 100
- Wireless Yes
- Housing Style External Terminals
- Max Temp Operating Conditions 60
- Application: Indicator Light Yes
- Point-to-Point Topology Yes
- EtherNet/IP Yes
- Input Details 4 Universal Inputs, SDI-12 interface
- Power Supply 12-30 V dc
- Tree Topology No
- Analog Outputs Yes
- LCD Display Yes
- Dimension Length (mm) 100
- Discrete Outputs Yes
- Min Temp Operating Conditions -20
- Application: Temperature Input Yes
- 1-wire Serial Interface No
- Analog Inputs Yes
- Point-to-Multipoint Topology Yes
- Application: Object Counting Yes
- Output Details 4 NMOS Discrete, 2 Analog, 2 DC Latching
- Star Topology Yes
- RS-232 No
- PROFINET No
- Wireless Radio Frequency 900 MHz
- Modbus RTU Yes
- Application: Soil Moisture Monitoring Yes
- Modbus/TCP Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-B2R1 Description
Banner Engineering DXM100-B2R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features 2 analog outputs (0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). It has dimensions of H61.1mm x W105.3mm x D94.7mm. The DXM100-B2R1 utilizes a 900 MHz transmission frequency with a maximum transmission distance of 9.6km. It incorporates SDI-12 data collection, a 100MHz processing speed for smart valve control, and FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity includes 2MB of on-board memory and an 8GB SD card. The frequency band is the 900MHz ISM with a 1W radio (PE5 performance radio; North America).
Related documents DXM100-B2R1 Specs
