DXM100-B2 Banner I/O Modules
Part#:DXM100-B2
Manufacturer:Banner
Alt. Part#:802378
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; I/O Base Board Only; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight476.2716 g
- Country Of OriginUS
- Power DC
- Analog Outputs Yes
- Input Details 4 Universal Inputs
- EtherNet/IP Yes
- Min Temp Operating Conditions -20
- On-Board Memory (MB) 2
- RS-232 Yes
- Housing Style External Terminals
- Application: Indicator Light Yes
- Modbus RTU Yes
- Processing Speed (MHz) 100
- Dimension Length (mm) 100
- Wireless Radio Frequency N/A
- LCD Display Yes
- Max Temp Operating Conditions 80
- Relative Humidity 95%
- PROFINET No
- Analog Inputs Yes
- Power Supply 12-30 V dc
- Discrete Inputs Yes
- Output Details 4 NMOS Discrete, 2 (0-10 V) Analog
- Input/Output Analog & Discrete
- Discrete Outputs Yes
- RS-485 Yes
- Environmental Rating (IP) IP20
- 1-wire Serial Interface No
- Device Type Wireless Controller
- Modbus/TCP Yes
- Wireless No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-B2 Description

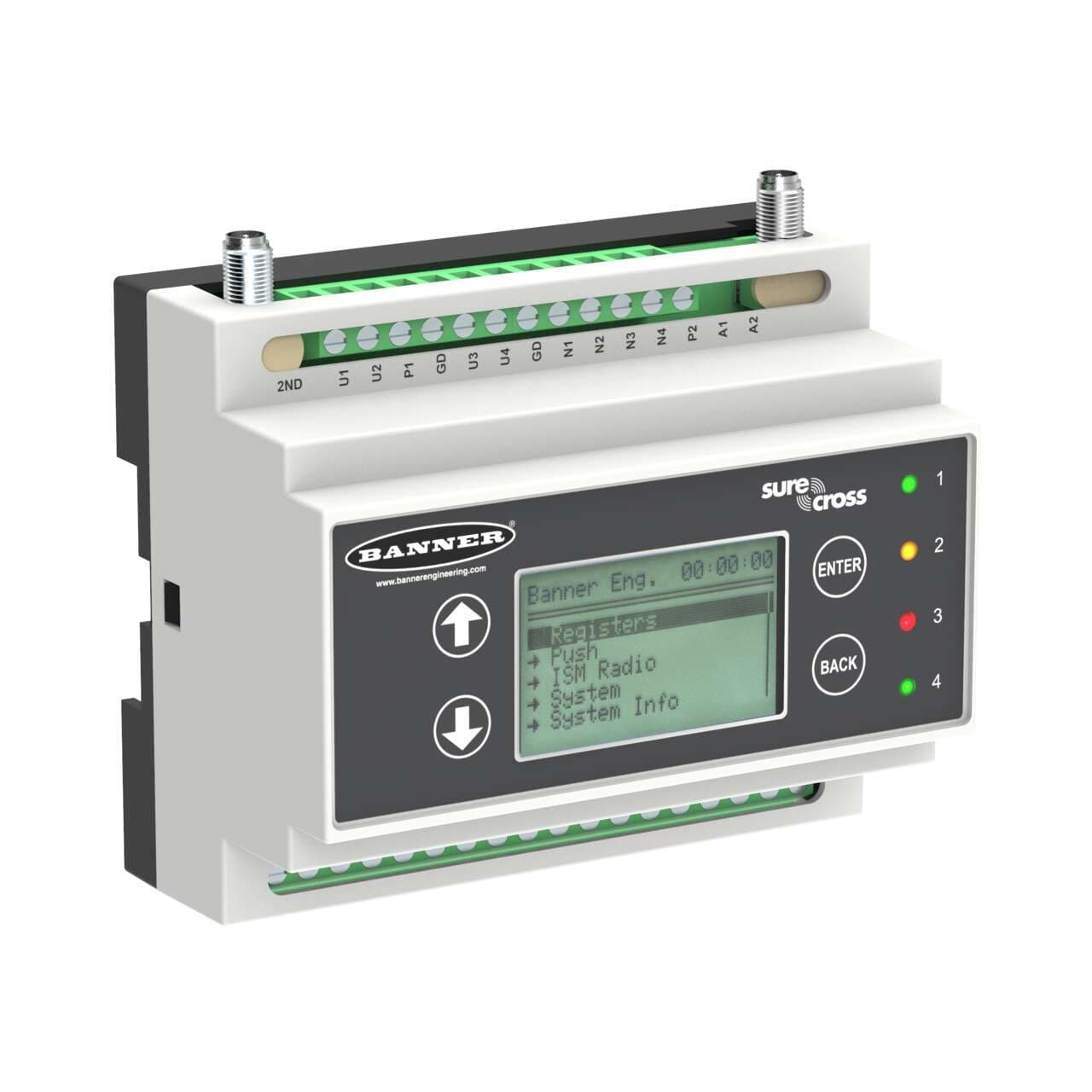

Banner Engineering DXM100-B2 is a remote I/O controller designed for DIN rail mounting, featuring a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller is equipped with 2 analog outputs (0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). It serves as a Modbus controller within the DXM100-B2 series, featuring an SDI-12 data collection I/O base board with a 100MHz processing speed, powered by a SAM4 processor. The DXM100-B2 provides connectivity through an RJ45 connector (Ethernet) and an RP-SMA connector, supporting a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.). It utilizes RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity includes 2MB of on-board memory and an expandable 8GB via SD card. Dimensions are H61.1mm x W105.3mm x D94.7mm.
Related documents DXM100-B2 Specs
