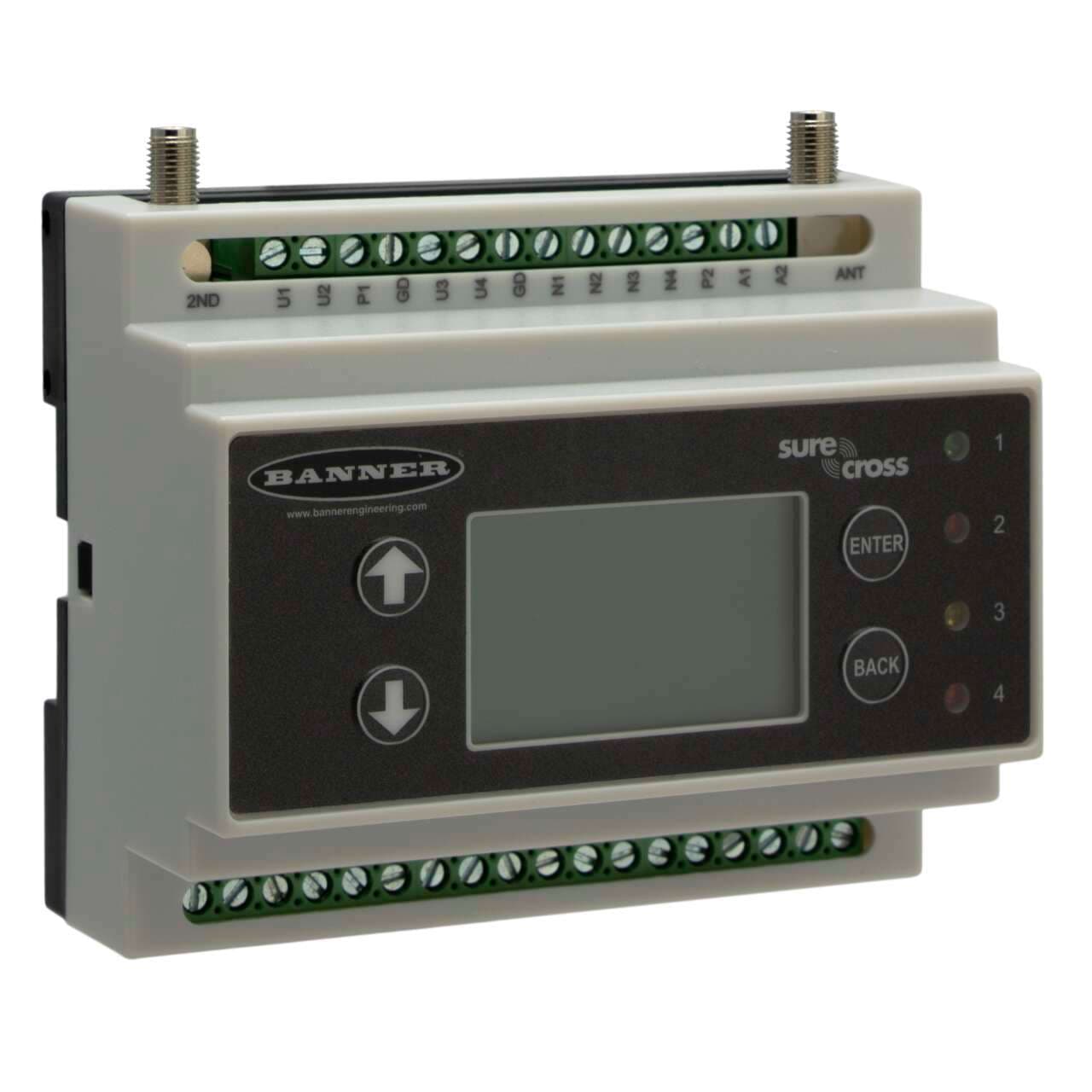

DXM100-B1R4 Banner I/O Modules
Part#:DXM100-B1R4
Manufacturer:Banner
Alt. Part#:800138
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; MultiHop Radio 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B1R4 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight498.9512 g
- Country Of OriginUS
- Power DC
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- Point-to-Point Topology Yes
- EtherNet/IP Yes
- Analog Inputs Yes
- Relative Humidity 95%
- Processing Speed (MHz) 100
- RS-232 Yes
- Analog Outputs Yes
- Min Temp Operating Conditions -20
- Tree Topology Yes
- Modbus RTU Yes
- Housing Style External Terminals
- Max Temp Operating Conditions 60
- PROFINET No
- Feature: Hazardous Area No
- Device Type Wireless Controller with MultiHop Radio
- LCD Display Yes
- On-Board Memory (MB) 2
- Wireless Yes
- Input/Output Analog & Discrete
- Power Supply 12-30 V dc
- Point-to-Multipoint Topology Yes
- Application: Indicator Light Yes
- Dimension Length (mm) 100
- RS-485 Yes
- Discrete Outputs Yes
- Environmental Rating (IP) IP20
- Application: Object Counting Yes
- Modbus/TCP Yes
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 80
- Star Topology Yes
- Wireless Radio Frequency 2.4 GHz
- Input Details 4 Universal Inputs
- Min Operating Temperature ( °C) -20
- Application: Temperature Input Yes
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-B1R4 Description
Banner Engineering DXM100-B1R4 is a Remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller has dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (4-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-B1R4 features a 100MHz processing speed, supports data aggregation of sensors, and utilizes wireless networks with FHSS (Frequency Hopping Spread Spectrum) technology and a SAM4 processor CAN. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP. The memory capacity is 2MB for on-board memory and up to 8GB with an SD card. Operating on a 2.4GHz ISM band with a 65mW radio (HE5 MultiHop data radio; worldwide), it can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DXM100-B1R4 Specs
