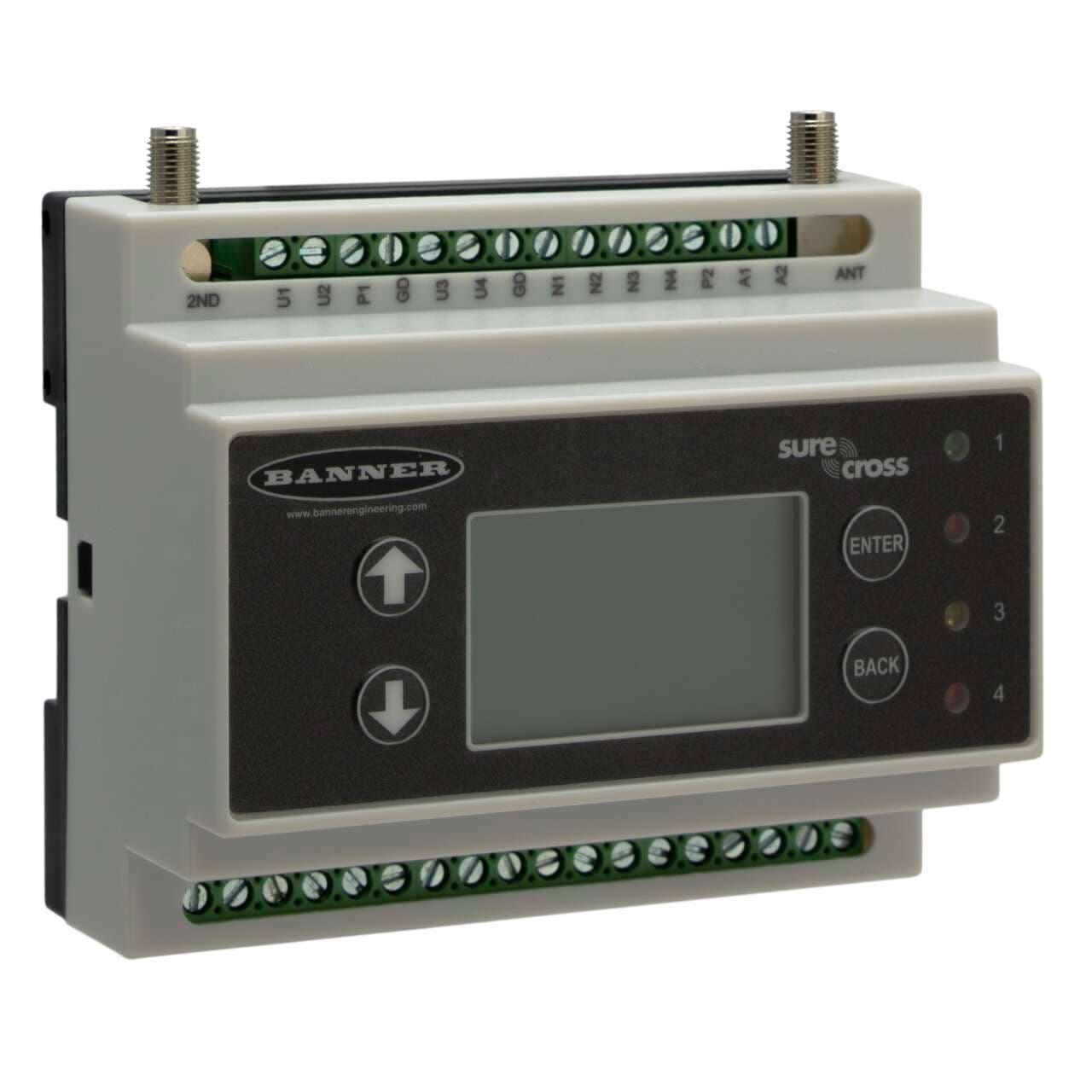

DXM100-B1R2 Banner I/O Modules
Part#:DXM100-B1R2
Manufacturer:Banner
Alt. Part#:95652
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B1R2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight498.9512 g
- Country Of OriginUS
- Housing Style External Terminals
- Max Operating Temperature ( °C) 80
- Application: Object Counting Yes
- Discrete Outputs Yes
- Min Temp Operating Conditions -20
- Dimension Length (mm) 100
- Modbus RTU Yes
- Input Details 4 Universal Inputs
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- Tree Topology Yes
- Input/Output Analog & Discrete
- Min Operating Temperature ( °C) -20
- Feature: Hazardous Area No
- Power DC
- Max Temp Operating Conditions 60
- Processing Speed (MHz) 100
- 1-wire Serial Interface No
- Discrete Inputs Yes
- LCD Display Yes
- Application: Temperature Input Yes
- Wireless Yes
- Environmental Rating (IP) IP20
- Point-to-Point Topology Yes
- RS-485 Yes
- Analog Inputs Yes
- Relative Humidity 95%
- PROFINET No
- Analog Outputs Yes
- Power Supply 12-30 V dc
- Star Topology Yes
- EtherNet/IP Yes
- Device Type Wireless Controller with MultiHop Radio
- Point-to-Multipoint Topology Yes
- On-Board Memory (MB) 2
- Wireless Radio Frequency 900 MHz
- Modbus/TCP Yes
- RS-232 Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-B1R2 Description
Banner Engineering DXM100-B1R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (4-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-B1R2 operates with a 900 MHz transmission frequency and includes functions as a Modbus I/O controller within the DXM100-B1 series. Its design incorporates a 100MHz processing speed for data aggregation of sensors and wireless networks, utilizing FHSS (Frequency Hopping Spread Spectrum) technology and a SAM4 processor CAN. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.), and it supports communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP. Memory capacity is provided by 2MB of on-board memory and an 8GB SD card. The frequency is set at the 900MHz ISM band with a 1W radio (HE5 MultiHop data radio; North America), capable of a maximum 9.6km transmission distance at nominal emission power.
Related documents DXM100-B1R2 Specs
1-year warranty
