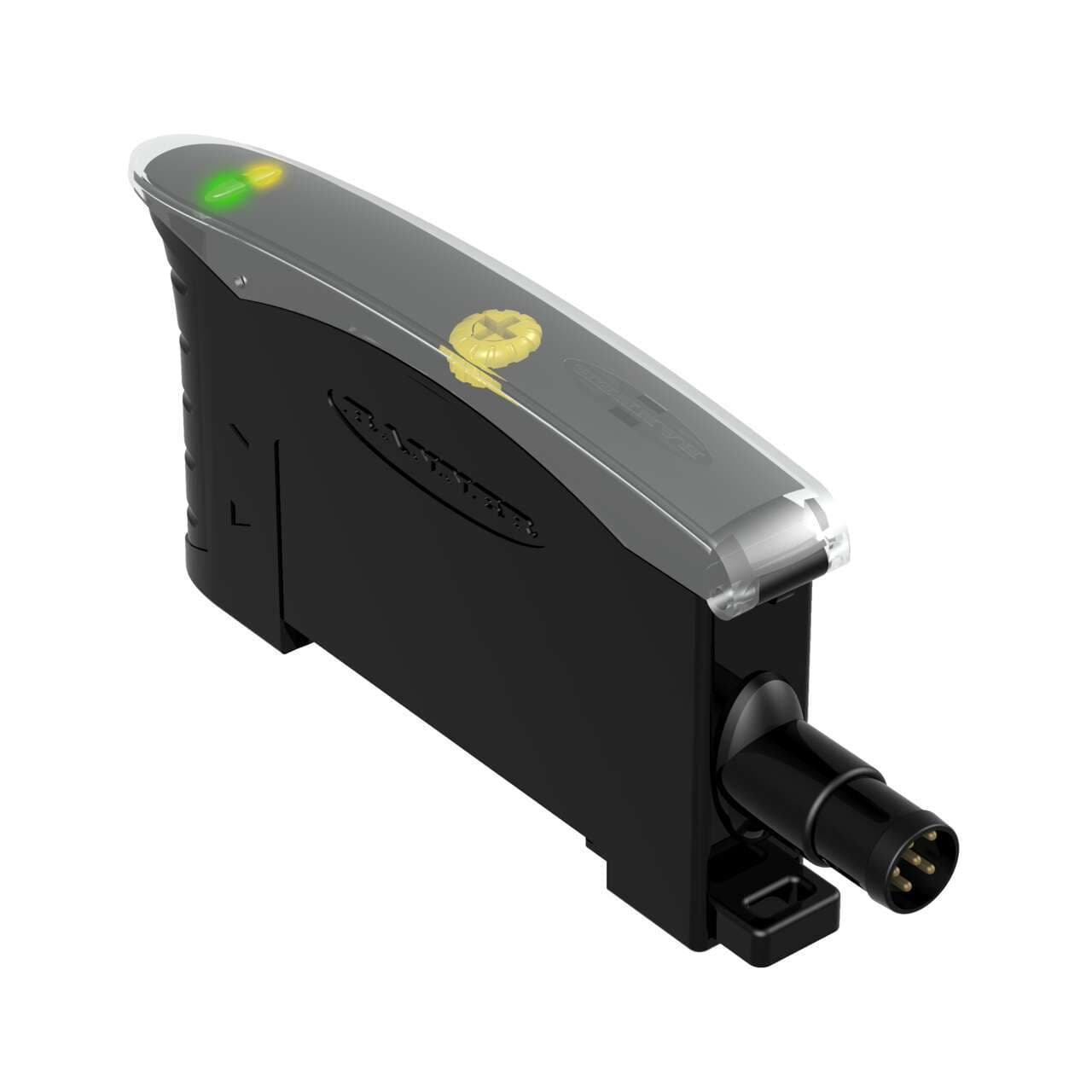

D10AFPQ5 Banner Sensor Accessories
Part#:D10AFPQ5
Manufacturer:Banner
Alt. Part#:74181
Product Lifecycle:Active
Get a quick Quote!
D10 AFPQ5 QD 4-PIN M12 RED
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the D10AFPQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight72.57472 g
- Country Of OriginCN
- Shape Rectangular
- Degree of protection IP50 NEMA 1
- Display LED 4 digits display
- Light Color Visible red
- Digital outputs 1 x digital output (NPN/PNP transistor)
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Response time 500ms / 0.5 s
- Material thermoplastic housing Polycarbonate cover
- Contents mounting bracket M3 hardware
- Main function Amplifier for sensor
- Sub-range name D10 series
- Product series / family name Fiber optic amplifiers
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) potentiometer adjustment
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Mounting mode DIN rail mounting
- Compliant with standard(s) cURus CE
- Order code / Manufacturer SKU 74181
- Net Depth (mm) 35.9 mm
- Ambient air temperature for operation -20...+55 °C
- Net Height (mm) 68.1 mm
- Technical compatibility with plastic fiber optic cable
- Net Width (mm) 10.5 mm
- Housing Style DIN Rail
- NEMA Rating NEMA 1
- Power Supply/Supply Voltage 10-30 V dc
- Minimum response time (ms) .5
- Input/Output Discrete
- Max Op. Temperature (°C) 55
- Indicator Display Type Indicator LEDs
- Connection Integral QD
- Number of Pins 4
- Special Feature: Remote Teach No
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Max Op. Relative Humidity (%) 90% @ 55°C
- Housing Material Thermoplastic
- Fiber Type Plastic and Glass
- Crosstalk Avoidance Yes
- Feature: Audible No
- Intrinsically Safe No
- Feature: Hazardous Area No
- Color LED - Amplifiers Red
- Repeatability (µs) 95
- Delay at Power-up (ms) 100
- Output Bipolar (NPN & PNP)
- Adjustments Potentiometer
- Power DC
- IP Rating IP50
- Feature: Timing (Hold/Delay) Yes
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -20
- Special Feature: Bussable Power No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
D10AFPQ5 Description
Banner Engineering D10AFPQ5 is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It has a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover, ensuring durability. The device operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits visible red light and has a response time of 500ms / 0.5 s. This model includes 1 x digital output (NPN/PNP transistor) and is characterized by its rectangular shape. It is part of the D10 series and is designed for high-performance fiber optic sensor amplification, featuring potentiometer adjustment for precise control. The D10AFPQ5 comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity and supports a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). Its net depth and height are 36 mm and 69 mm, respectively.
Related documents D10AFPQ5 Specs
