D10AFPGYQ Banner Electronic Components
Part#:D10AFPGYQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

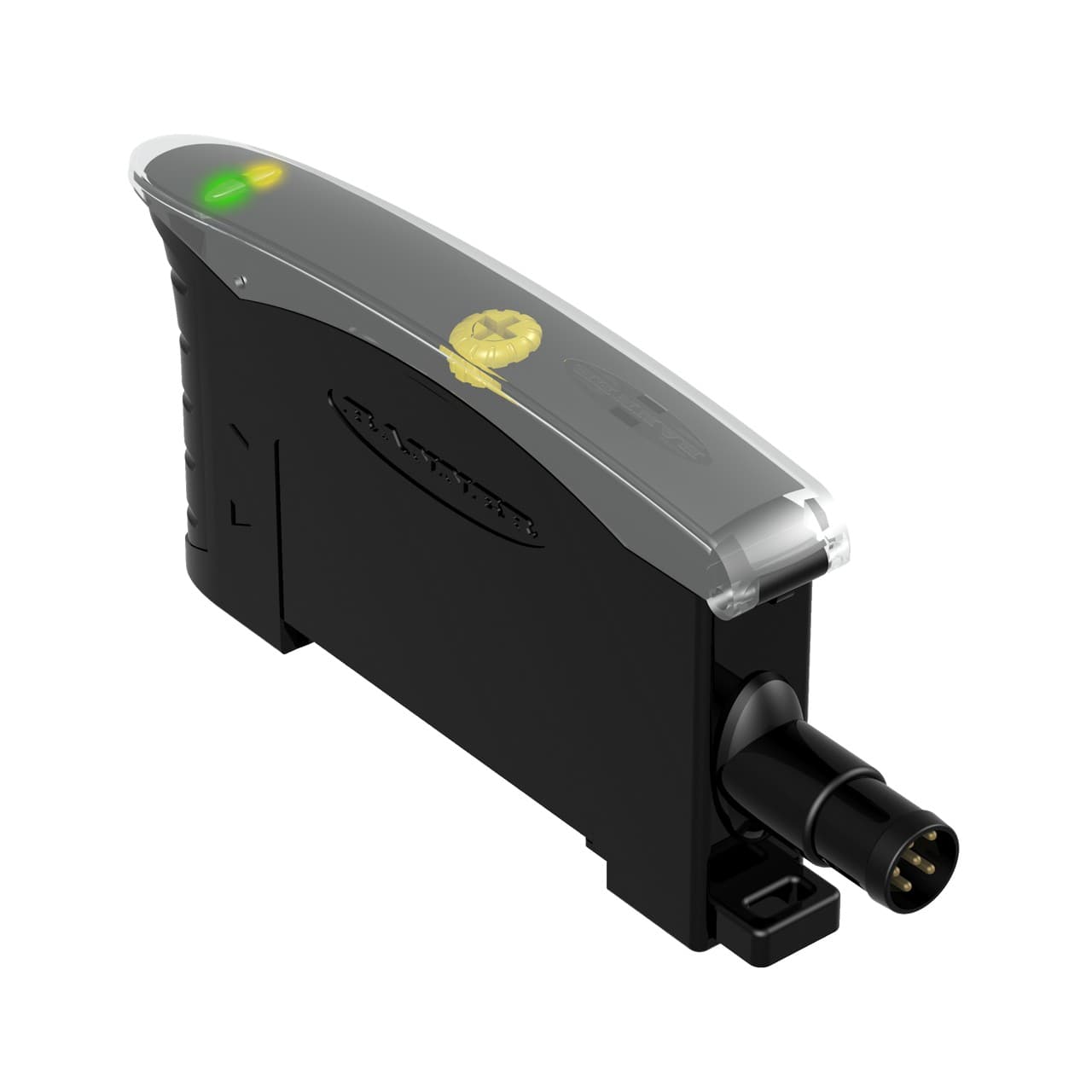

Banner Engineering D10AFPGYQ is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It has a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible green light and has a response time of 200ms / 0.2 s. The D10AFPGYQ includes 1 x digital output (NPN/PNP transistor) and is shaped rectangularly. It is part of the D10 series and is characterized by high-performance fiber optic sensor amplifier functions with potentiometer adjustment for precise control. The connection is facilitated by a pre-equipped 4-pin Pico-style M8 connector, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The net depth and height of the part are 36 mm and 69 mm, respectively.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the D10AFPGYQ Banner price in the box on the right side or send a quick quote.
Product Details
- Sub-range name D10 series
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) potentiometer adjustment
- Mounting mode DIN rail mounting
- Ambient air temperature for operation -20...+55 °C
- Net Height (mm) 68.1 mm
- Display LED 4 digits display
- Shape Rectangular
- Digital outputs 1 x digital output (NPN/PNP transistor)
- Degree of protection IP50 NEMA 1
- Compliant with standard(s) cURus CE
- Net Depth (mm) 35.9 mm
- Main function Amplifier for sensor
- Light Color Visible green
- Response time 200ms / 0.2 s
- Contents mounting bracket M3 hardware
- Technical compatibility with plastic fiber optic cable
- Primary brand Banner Engineering
- Net Width (mm) 10.5 mm
- Product series / family name Fiber optic amplifiers
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-equipped with 4-pin Pico-style M8 connector
- Material thermoplastic housing Polycarbonate cover
- Order code / Manufacturer SKU 73125
- Output Bipolar (NPN & PNP)
- Connection Integral QD
- Max Op. Relative Humidity (%) 90% @ 55°C
- Power Supply/Supply Voltage 10-30 V dc
- IO Link No
- Quick Disconnect Type M8 (Pico)
- Number of Pins 4
- Special Feature: Bussable Power No
- Application: Object Counting Yes
- Housing Style DIN Rail
- Output Type (Specific) Single Discrete
- Intrinsically Safe No
- Feature: Hazardous Area No
- Input/Output Discrete
- NEMA Rating NEMA 1
- Indicator Display Type Indicator LEDs
- Color LED - Amplifiers Green
- Min Op. Temperature (°C) -20
- Feature: Timing (Hold/Delay) Yes
- Primary Housing Material Thermoplastic
- IP Rating IP50
- Adjustments Potentiometer
- Feature: Audible No
- Fiber Type Plastic and Glass
- Max Op. Temperature (°C) 55
- Crosstalk Avoidance Yes
- Housing Material Thermoplastic
- Power DC
- Special Feature: Remote Teach No
- Minimum response time (ms) .2
- Repeatability (µs) 50
- Delay at Power-up (ms) 100
