CSB-M1253.3M1281.6 Banner Splitters
Part#:CSB-M1253.3M1281.6
Manufacturer:Banner
Alt. Part#:802912
Product Lifecycle:Active
Get a quick Quote!
M12 QD Splitter Cordset; 5-pin Male Straight Trunk; 1 m (3.3 ft); 8-pin Female Straight Branches (2); 0.5 m (1.64 ft); Black PUR Splitter Junction; Yellow PVC Cable Jacket
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSB-M1253.3M1281.6 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight149.68536 g
- Country Of OriginTW
- Outside Cable Diameter (mm) 6
- Current Rating (A) 4.0
- Splitter Branches: Connector Type M12F, M12F
- Shield/No Shield No Shield
- Primary AWG 22
- Splitter Branches Length (m) 0.5, 0.5
- Cable Jacket Color Black
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Number of Contacts 5
- IP Rating IP67
- Splitter Branches: Orientation Straight, Straight
- Coupling Material/Color Nickel Plated Brass
- Primary Gender Male
- Splitter Function Parallel
- Trunk Length (m) 1
- Minimum Temp. (°C) -40
- Splitter Branches: AWG 22, 22
- Oil/Grease Resistant No
- Number of Connectors 3
- Primary Connector Type EURO
- Splitter Branches: Number of Conductors 8, 8
- Connector Body Material/Color PUR Black
- Primary Number of Conductors 8
- Cordset Length (m) 1.5
- Primary Coupling Method M12 Single Key
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
- Cable Jacket Material PVC
- Voltage Rating (V) 250 V ac/300 V dc
- Splitter Cable Diameter 6, 6
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CSB-M1253.3M1281.6 Description

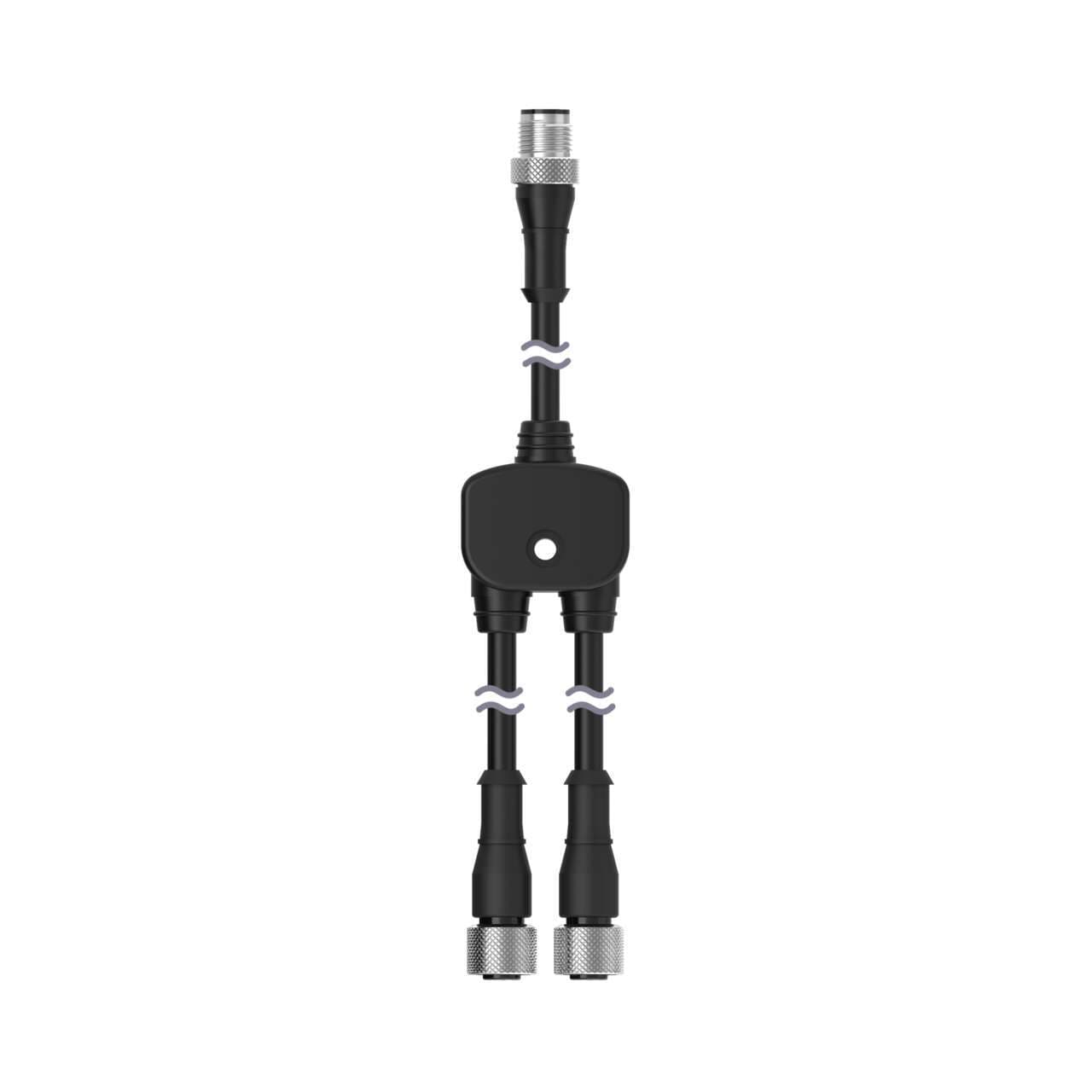

Banner Engineering CSB-M1253.3M1281.6 is a Y-shaped splitter cable designed for splitting connections. It features a 5-pin Euro-style M12 male quick disconnect (QD) connector on a 3-foot (approximately 1 meter) trunk. The splitter branches out into two segments, each equipped with an 8-pin Euro-style M12 female quick disconnect (QD) connector, with each branch measuring 50 centimeters in length.
