CSB-M1251FM1251M Banner Splitters

Banner CSB-M1251FM1251M Splitter M12F to M12M and M12M connectors; 5-pin, Non-Shielded, IP68, AWG 22; Black PVC Cord, Straight Connectors; Trunk: 0.3 m; Branches: 0.3 m
Banner

Part#:CSB-M1251FM1251M

Manufacturer:Banner

Alt. Part#:805287

Product Lifecycle:Active

Get a quick Quote!

Splitter M12F to M12M and M12M connectors; 5-pin, Non-Shielded, IP68, AWG 22; Black PVC Cord, Straight Connectors; Trunk: 0.3 m; Branches: 0.3 m

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-M1251FM1251M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight90.7184 g
  • Country Of OriginTW
  • Cordset Length (m)
    0.6
  • Minimum Temp. (°C)
    -40
  • Number of Connectors
    3
  • IP Rating
    IP67
  • Splitter Branches: Orientation
    Straight, Straight
  • Outside Cable Diameter (mm)
    5.9
  • Current Rating (A)
    4.0
  • Splitter Branches: Connector Type
    M12M, M12M
  • Primary Gender
    Female
  • Splitter Branches: AWG
    22, 22
  • Shield/No Shield
    No Shield
  • Primary Coupling Method
    M12 Single Key
  • Splitter Branches: Number of Conductors
    5, 5
  • Cable Jacket Material
    PVC
  • Primary Connector Type
    EURO
  • Feature: Hazardous Area
    No
  • Connector Body Material/Color
    PUR Black
  • Maximum Temp. (°C)
    105
  • Splitter Cable Diameter
    5.9, 5.9
  • Oil/Grease Resistant
    No
  • Cable Jacket Color
    Black
  • Coupling Material/Color
    Nickel Plated Brass
  • Primary Number of Conductors
    5
  • Splitter Function
    Parallel
  • Number of Contacts
    5
  • Primary Orientation
    Straight
  • Splitter Branches Length (m)
    0.3, 0.3
  • Trunk Length (m)
    0.3
  • Voltage Rating (V)
    250 V ac/300 V dc
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Primary AWG
    22

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

CSB-M1251FM1251M Description

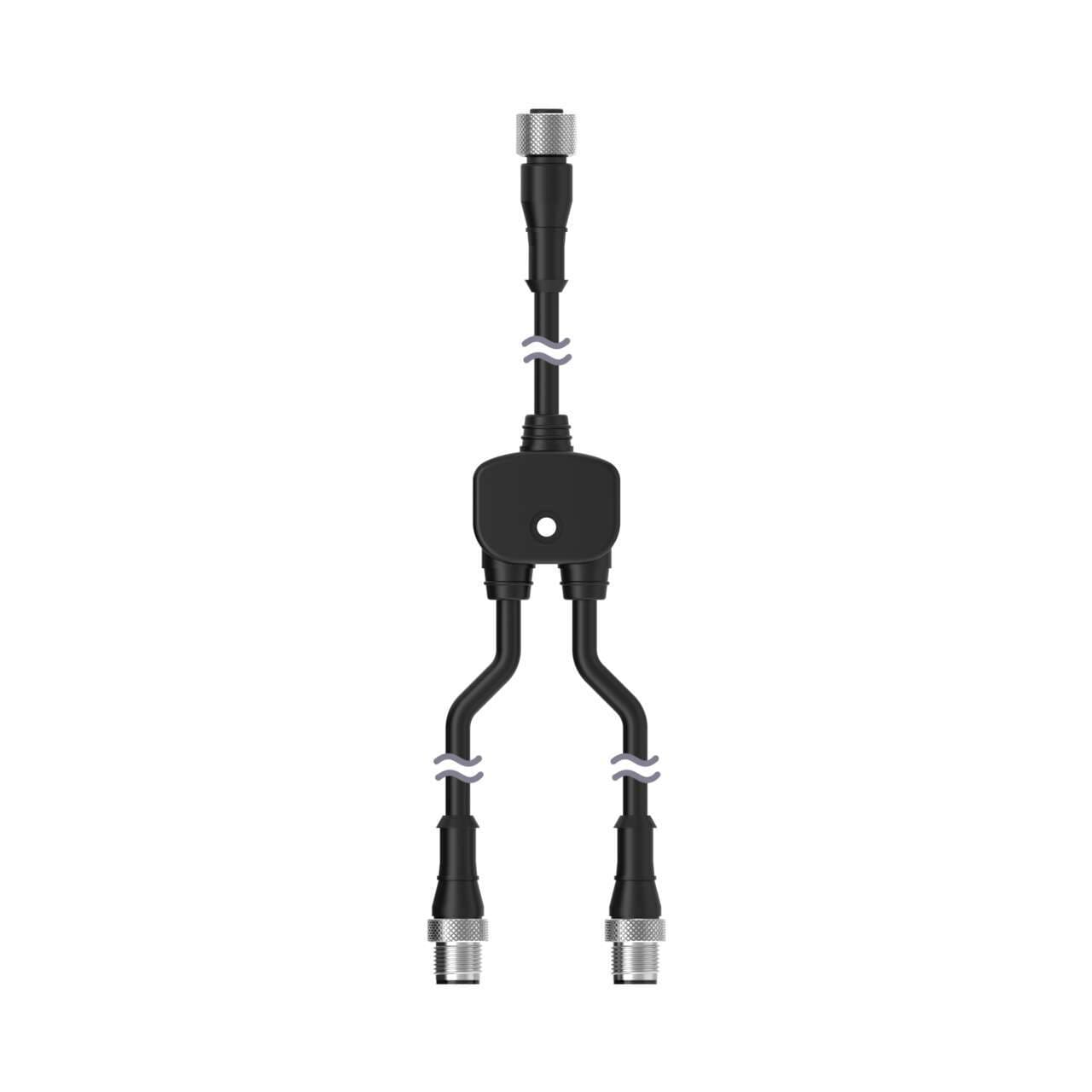

Banner Engineering CSB-M1251FM1251M is a Y-shaped splitter connector designed for various automation applications. It features a PVC cable with a black housing and is equipped with a 5-pin Euro-style M12 female connector on a 1ft / 30cm trunk, and two 5-pin Euro-style M12 male connectors on 1ft / 30cm branches. The splitter operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for challenging environments. It supports a rated voltage of 250Vac and 30Vdc, with a cable diameter of 5.9mm.
