CSB-M1248M1241 Banner Splitters
Part#:CSB-M1248M1241
Manufacturer:Banner
Alt. Part#:75274
Product Lifecycle:Active
Get a quick Quote!
Splitter Cable; 4-pin M12 Male Trunk 2.5 m (8 ft); Two 4-pin M12 0.3 m (1 ft) Female Branches; Black
About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CSB-M1248M1241 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight181.4368 g
- Country Of OriginTW
- Cordset Length (m) 2.8
- Primary Orientation Straight
- Splitter Function Parallel
- Shield/No Shield No Shield
- Primary Gender Male
- Splitter Branches Length (m) 0.3, 0.3
- Trunk Length (m) 2.5
- Primary Coupling Method M12 Single Key
- Splitter Branches: Number of Conductors 4, 4
- Connector Body Material/Color PUR Black
- Current Rating (A) 4.0
- Splitter Branches: AWG 22, 22
- Cable Jacket Material PVC
- Voltage Rating (V) 250 V ac/300 V dc
- Splitter Branches: Connector Type M12F, M12F
- Cable Jacket Color Black
- IP Rating IP67
- Primary AWG 22
- Oil/Grease Resistant No
- Number of Contacts 4
- Maximum Temp. (°C) 105
- Splitter Cable Diameter 5.5, 5.5
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 4
- Feature: Hazardous Area No
- Outside Cable Diameter (mm) 5.5
- Primary Connector Type EURO
- Splitter Branches: Orientation Straight, Straight
- Number of Connectors 3
- Minimum Temp. (°C) -40
- Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CSB-M1248M1241 Description

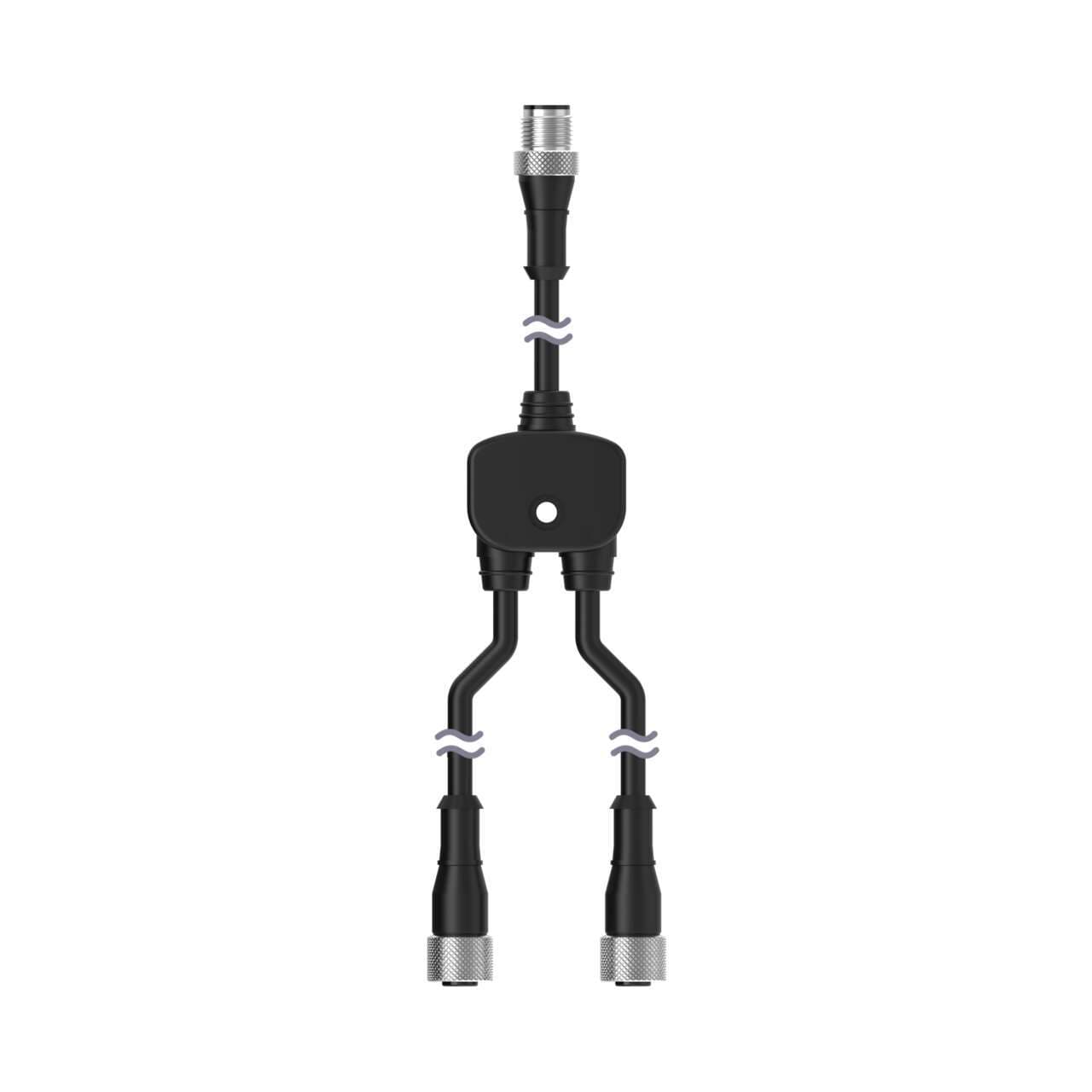

Banner Engineering CSB-M1248M1241 is a Y-shaped splitter cable designed for splitting a single signal into two. It features a 4-pin Euro-style M12 male connector on an 8ft / 2.5m trunk and two 4-pin Euro-style M12 female connectors on 1ft / 30cm branches. This configuration allows for flexible connectivity options in various automation applications.
