Supplementary Protectors

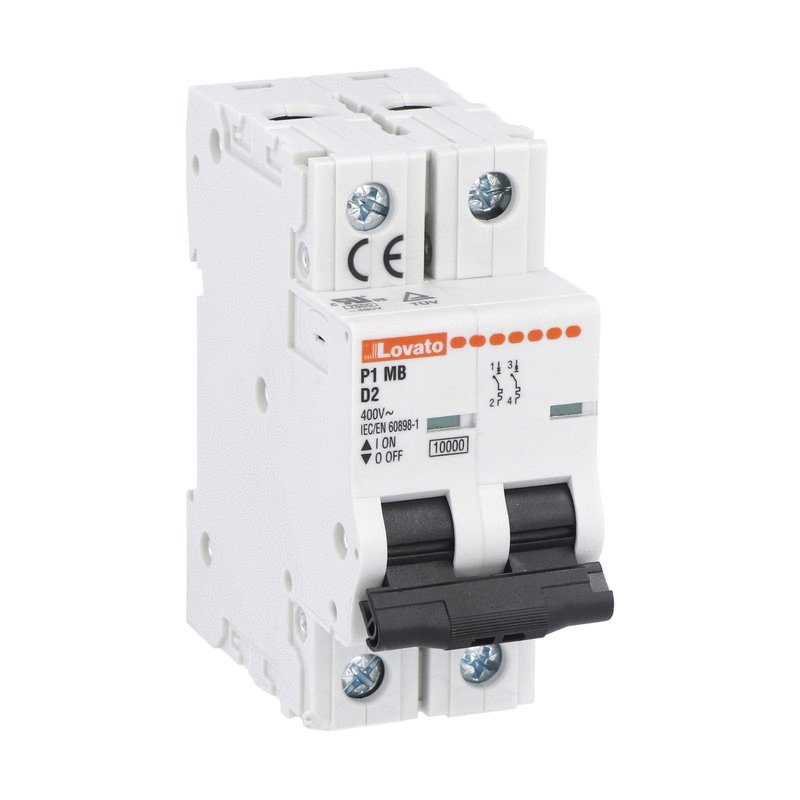

P1MB2PD08

P1MB2PD08 Lovato - Miniature circuit breaker, 2P - 10kA. 2 modules, characteristic D, 8A

Lovato Electric

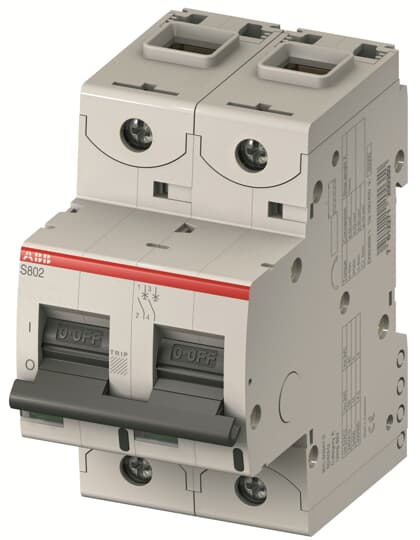

S802S-C80

Circuit Breaker, High Performance, 2 pole, 80 A, 690 VAC, C Curve, IEC

ABB Control

FAZ-Z13/1N

Supplementary protector, 1 pole + neutral, 13 A, Z trip curve, 277/480 VAC, UL 1077

Eaton

3DU12R

Supplementary Protector 12A, 3 Pole, 277V AC, D Trip, UL1077

Altech Corp.

P1MBUH3PC15

P1MBUH3PC15 Lovato - Miniature circuit breaker, 3P - 10kA. 3 modules, characteristic C, 15A

Lovato Electric

2CCS864001R0257

ABB 2CCS864001R0257 is a Miniature Circuit Breaker (MCB) designed for screw-clamp connections. It features a rated current of 25A and a rated voltage of 500Vdc for DC applications. The MCB has a net height of 8 kV and a rated impulse voltage (Uimp) of 106 mm, indicating its capacity to withstand voltage spikes. It is a 4-pole (4P) device, ensuring multi-phase protection with a net width of 82.5 mm. This product is designed for DIN rail mounting, facilitating easy installation in electrical panels. The rated insulation voltage (Ui) is 690 V, and it has a control voltage for AC circuits. The MCB is built to endure up to 10,000 operations, highlighting its durability for repetitive use. It also specifies the number of Normally Closed (NC) circuits at 690 V, indicating its capability in circuit protection. The product does not explicitly list analog outputs but mentions a secondary current characteristic of K, which may refer to specific operational or installation parameters.

ABB Control

FAZ-S16/1N

Supplementary protector, 1 pole + neutral, 16 A, S trip curve, 277/480 VAC, UL 1077

Eaton

2DU30R

Supplementary Protector 30A, 2 Pole, 277V AC, D Trip, UL1077

Altech Corp.

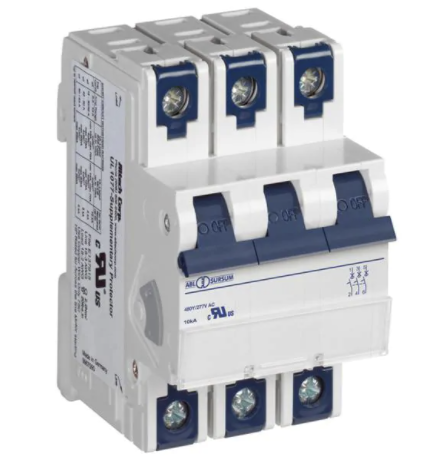

3C4UR

Supplementary Protector 4A, 3 Pole, 480Y/277V AC, C Trip, UL1077

Altech Corp.

2CCS864001R0321

ABB 2CCS864001R0321 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections. It features a rated current of 32A and a rated voltage of 500Vdc for DC applications. The MCB has a net height of 106 mm, a net width of 82.5 mm, and accommodates a 4-pole (4P) configuration. It is designed for DIN rail mounting and has a rated insulation voltage (Ui) of 690V, with a rated impulse voltage (Uimp) of 8 kV. The control voltage operates on AC, and the device is capable of 10,000 operations. It includes protection functions with a supply voltage rating of 690V and a maximum temperature limit of 25 kA.

ABB Control

FAZ-B0.5/1N

Supplementary protector, 1 pole + neutral, 0.5 A, B trip curve, 277/480 VAC, UL 1077

Eaton

FAZ-S50/2

Supplementary protector, 2 pole, 50 A, S trip curve, 277/480 VAC, UL 1077

Eaton

L8-10/1/D

Sprecher + Schuh L8-10/1/D - Supplementary Protectors, CURVE-D, 10A, 1-POLE, UL1077/ NFPA79/ CSA/ CE

Sprecher + Schuh

1CU3R

Supplementary Protector 3A, 1 Pole, 277V AC, C Trip, UL1077

Altech Corp.

P1MB1NC20

P1MB1NC20 Lovato - Miniature circuit breaker, 1P+N - 6kA. 2 modules, characteristic C, 20A

Lovato Electric

1100-SP1NB2U63

Supplementary protector, 1 pole + neutral, 63 A, B trip curve, 277 VAC, UL 1077

c3controls

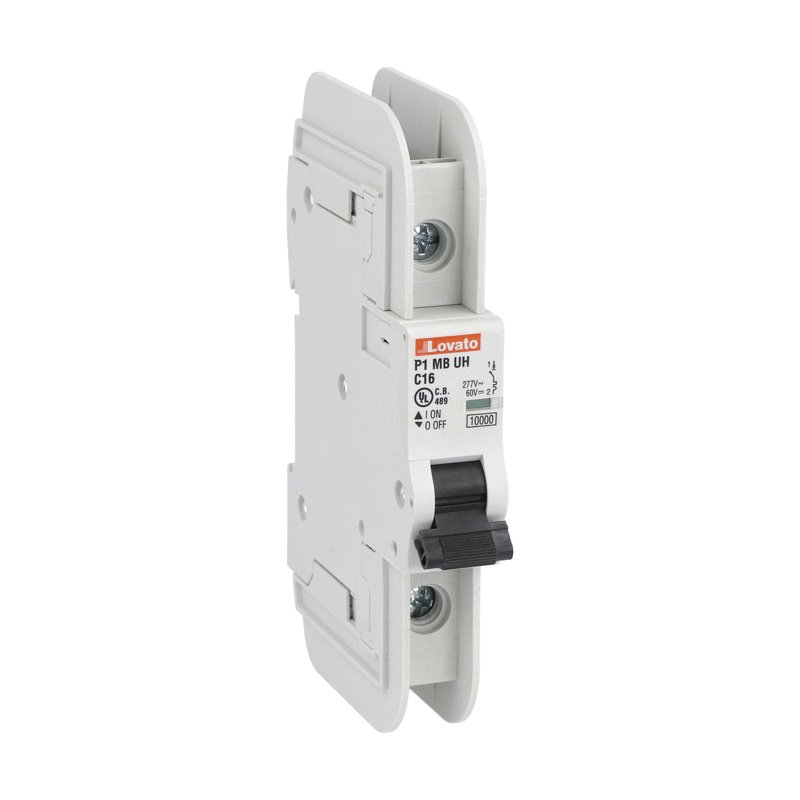

P1MBUH1PC25

P1MBUH1PC25 Lovato - Miniature circuit breaker, 1P - 10kA. 1 module, characteristic C, 25A

Lovato Electric

2CU5R

Supplementary Protector 5A, 2 Pole, 277V AC, C Trip, UL1077

Altech Corp.

P1MBUL1PD35

P1MBUL1PD35 Lovato - Miniature circuit breaker, 1P - 10kA. 1 module, characteristic D, 35A

Lovato Electric

2CDS251001R0158

ABB 2CDS251001R0158 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections. It features a rated current of 0.5A and supports a rated voltage of 72Vdc for DC applications, and 230V for AC phase-to-phase connections. This MCB is UL1077 compliant, indicating adherence to specific safety standards. It is designed for mounting on a DIN rail, facilitating easy installation and maintenance. The breaker is capable of withstanding a rated impulse voltage (Uimp) of 4 kV and has a rated insulation voltage (Ui) of 69 mm. Its mechanical endurance is rated at 20,000 operations, with a control voltage for AC circuits. The device has a net height of 88 mm, a net width accommodating a 1-pole (1P) configuration at 17.5 mm, and a supply voltage durability of 6000 operations. It is designed to operate efficiently up to a maximum temperature associated with a 6 kA interrupting capacity.

ABB Control
