Supplementary Protectors

P1MB2PD50

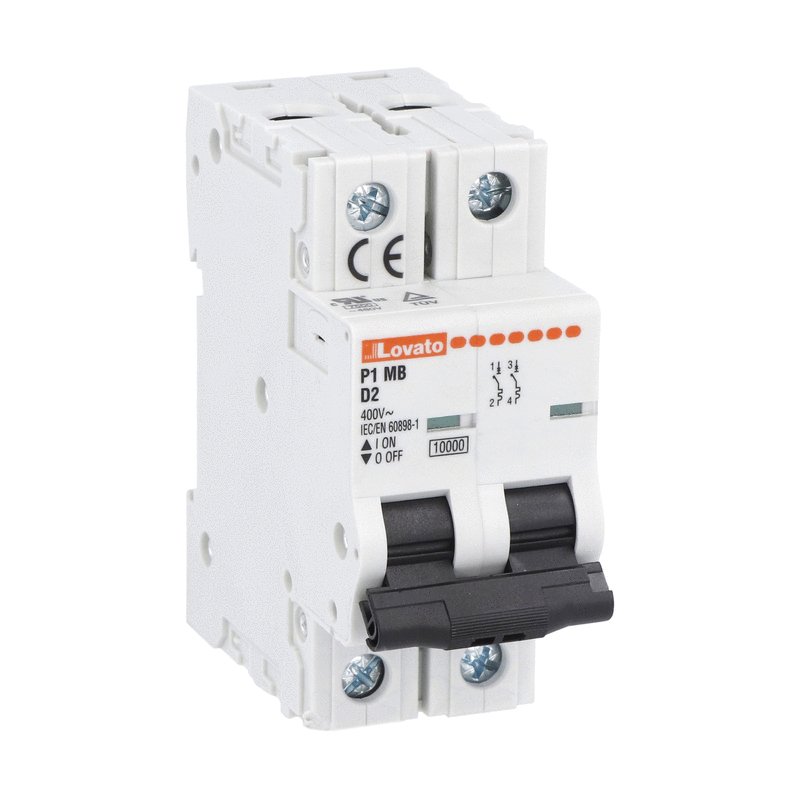

P1MB2PD50 Lovato - Miniature circuit breaker, 2P - 10kA. 2 modules, characteristic D, 50A

Lovato Electric

2CCS884001R0104

ABB 2CCS884001R0104 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections. It features a rated current of 10A and a rated voltage of 500Vdc. The MCB has a net height of 106 mm, a net width for a 4-pole (4P) configuration of 82.5 mm, and a rated impulse voltage (Uimp) of 8 kV. It is designed for DIN rail mounting and has a rated insulation voltage (Ui) of 500 V. The control voltage (AC) is specified at 440 V, and it is built to withstand up to 10,000 operations. The breaker offers protection functions with a maximum temperature limit of 15 kA and includes a secondary current rating of C.

ABB Control

FAZ-D7/1N

Supplementary protector, 1 pole + neutral, 7 A, D trip curve, 277/480 VAC, UL 1077

Eaton

2CCS882001R0135

ABB 2CCS882001R0135 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections. It features a rated current of 13A and a rated voltage of 250Vdc. The device has a net height of 8 kV and a rated impulse voltage (Uimp) of 54 mm, with a net width for 2-poles (2P) configuration measuring 82.5 mm. It is designed for DIN rail mounting and has a rated insulation voltage (Ui) of 500 V. The control voltage (AC) is specified for 440 V applications, and it supports up to 10,000 operations. The MCB is characterized by a secondary current classification of B and offers protection functions with a maximum temperature tolerance of 15 kA.

ABB Control

L8-13/1/C

Sprecher + Schuh L8-13/1/C - Supplementary Protectors, CURVE-C, 13A, 1-POLE, UL1077/ NFPA79/ CSA/ CE

Sprecher + Schuh

3D12UR

Supplementary Protector 12A, 3 Pole, 480Y/277V AC, D Trip, UL1077

Altech Corp.

2CDS274427R0427

ABB 2CDS274427R0427 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 10A. It complies with UL1077 standards, featuring a 4-pole (4P) design. The MCB has a rated impulse voltage (Uimp) of 4 kV and a rated insulation voltage (Ui) of 400 V. It is designed for DIN rail mounting and supports a control voltage for AC operations. The supply voltage is rated for 6000 operations, and it has a durability of 20000 operations for its analog outputs. The net dimensions include a height of 70.5 mm and a width of 69 mm, with a communication protocol width of 100 mm.

ABB Control

2CDS253103R0044

ABB 2CDS253103R0044 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 4A. It complies with UL1077 standards, featuring a 4-pole (3P+N) design suitable for DIN rail mounting. The MCB has a rated impulse voltage (Uimp) of 4 kV, a rated insulation voltage (Ui) of 440 V, and a rated voltage (AC) phase-to-phase of 230 V. Its net dimensions include a height of 70.5 mm and a width of 69 mm, with a control voltage for AC operations. The supply voltage supports up to 6000 operations, and it is designed for a maximum temperature of 6 kA. The breaker also includes analog outputs for 20,000 operations and a secondary current classification of C.

ABB Control

L8-6/2/D

Sprecher + Schuh L8-6/2/D - Supplementary Protectors, CURVE-D, 6A, 2-POLE, UL1077/ NFPA79/ CSA/ CE

Sprecher + Schuh

2CDS253001R0258

ABB 2CDS253001R0258 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 1.6A. It complies with UL1077 standards, featuring a 3-pole (3P) design suitable for DIN rail mounting. The MCB has a rated impulse voltage (Uimp) of 4 kV, a rated insulation voltage (Ui) of 440 V, and supports a control voltage (AC) for operations. Its dimensions include a net height of 88 mm, a net width of 52.5 mm, and a depth of 69 mm. The device is engineered for up to 6000 operations with a supply voltage and can handle 20,000 operations for analog outputs. It is designed to withstand a maximum temperature associated with a short-circuit breaking capacity of 6 kA.

ABB Control

L8-6/2/C

Sprecher + Schuh L8-6/2/C - Supplementary Protectors, CURVE-C, 6A, 2-POLE, UL1077/ NFPA79/ CSA/ CE

Sprecher + Schuh

2CDS251103R0011

ABB 2CDS251103R0011 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections. It has a rated current of 1A and supports a rated voltage of 72Vdc for DC applications, and a phase-to-phase rated voltage of 230V for AC applications. This MCB is UL1077 compliant, indicating adherence to specific safety standards. It features a 2-pole (1P+N) configuration and is designed for DIN rail mounting. The rated insulation voltage (Ui) is 69mm, and it has a rated impulse voltage (Uimp) of 4kV, ensuring protection against voltage spikes. The net dimensions include a height of 88mm, a width of 35mm, and it is designed to withstand up to 6000 operations, with the analog outputs rated for 20,000 operations. The control voltage operates on AC, and it has a maximum temperature tolerance associated with a breaking capacity of 6kA.

ABB Control

2CCS861001R0825

ABB 2CCS861001R0825 is a Miniature Circuit Breaker (MCB) designed for screw-clamp connections. It features a rated current of 100A and a rated voltage of 125Vdc for DC applications, with a phase-to-phase rated voltage of 230V for AC applications. This 1-pole (1P) MCB has a net height of 82.5 mm and a net width that accommodates DIN rail mounting. It is specified with a rated impulse voltage (Uimp) of 8 kV, a rated insulation voltage (Ui) of 690V, and a control voltage for AC. The MCB is designed for up to 10,000 operations and offers protection functions with a maximum temperature limit of 25 kA. The secondary current classification is B.

ABB Control

2CDS253103R0407

ABB 2CDS253103R0407 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 8A. It complies with UL1077 standards and features a 4-pole (3P+N) design. The MCB has a rated impulse voltage (Uimp) of 4 kV and a rated insulation voltage (Ui) of 440 V. Its net height and width are 70.5 mm and 69 mm, respectively, indicating its compact size for DIN rail mounting. The control voltage operates on AC, and it is designed for up to 6000 operations, with a rated voltage (AC) phase-to-phase of 230 V. The device supports a maximum of 20,000 operations for its analog outputs and can handle a secondary current designated as 'K'. It is capable of interrupting currents up to 6 kA and operates efficiently up to a maximum temperature.

ABB Control

2CDS253103R0504

ABB 2CDS253103R0504 is a Miniature Circuit Breaker (MCB) designed with screw-clamp connections and a rated current of 50A. It complies with UL1077 standards and features a 4-pole (3P+N) design. The MCB has a rated impulse voltage (Uimp) of 4 kV, a net height of 70.5 mm, and a net width of 69 mm. It is suitable for DIN rail mounting and has a control voltage for AC circuits. The supply voltage is rated for 6000 operations, and it can handle a rated voltage (AC) of 230 V phase-to-phase with a secondary current classification of C. The MCB is designed to withstand a maximum temperature of 6 kA and has a rated insulation voltage (Ui) of 440 V. It is capable of 20,000 operations and includes a number of Normally Closed (NC) circuits.

ABB Control

P1MBUH1PD04

P1MBUH1PD04 Lovato - Miniature circuit breaker, 1P - 10kA. 1 module, characteristic D, 4A

Lovato Electric

FAZ-B13/1

Supplementary protector, 1 pole, 13 A, B trip curve, 277/480 VAC, UL 1077

Eaton

P2MB3PC080

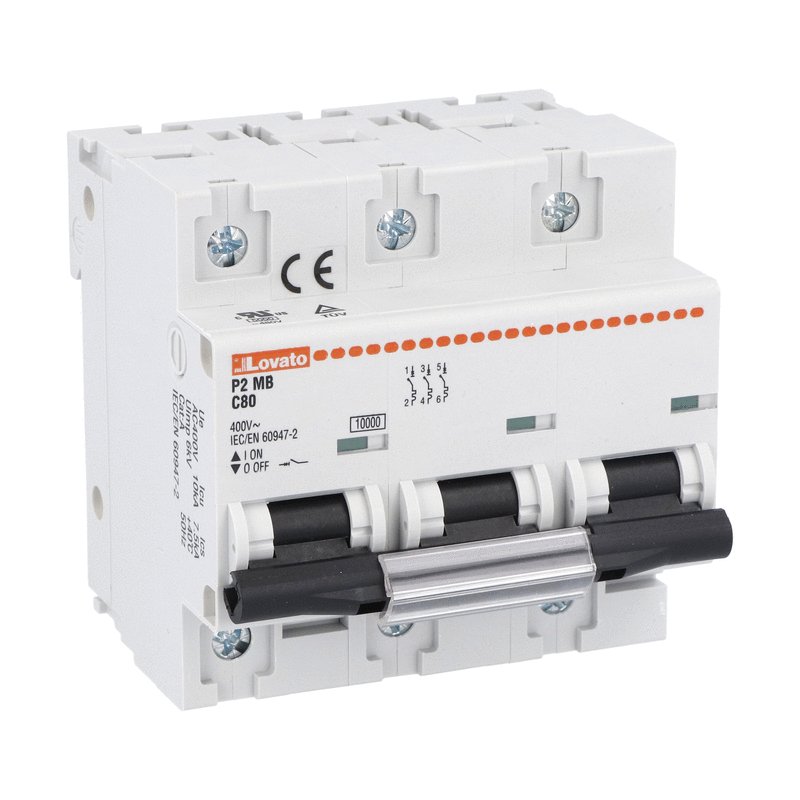

P2MB3PC080 Lovato - Miniature circuit breaker, 1P, 2P, 3P and 4P - 10kA, characteristic C, 80A

Lovato Electric

P1MB1PC50

P1MB1PC50 Lovato - Miniature circuit breaker, 1P - 10kA. 1 module, characteristic C, 50A

Lovato Electric

FAZ-Z5/3N

Supplementary protector, 3 pole + neutral, 5 A, Z trip curve, 277/480 VAC, UL 1077

Eaton
