Signal Towers

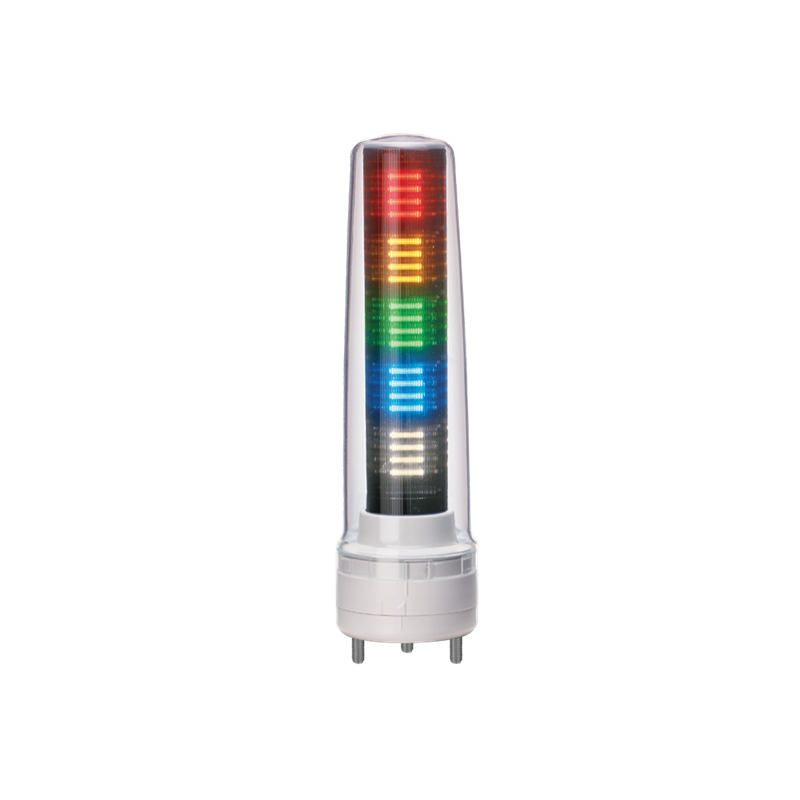

LS7-502WH-RYGBC

70mm, 5-Tier Signal Tower. Off-white, direct mount body. Red, Amber, Green, Blue, White LED

Patlite

TL50HGYBQ

Banner Engineering TL50HGYBQ is a tower light from the Core high-intensity series, featuring a monolithic design with 3-tiers and a 3-color G+Y+B (Green, Yellow, Blue) color pattern for LED illumination. This product is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm / 2" diameter and is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The housing is black, and it operates on a supply voltage of 24Vac or a DC range of 18Vdc-30Vdc (24Vdc nominal). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -40°C to +50°C. This tower light offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating, and has a cylindrical shape. It consumes 100mA of current and includes 3 digital inputs (18-30Vdc / 24Vac; PNP/NPN) for color control.

Banner

LR5-101WJBW-B

50mm diameter UL CE IP65 DC 12V, Direct Mount/Cable, Flashing/Buzzer, Off-white

Patlite

TL70GYBRAQ

TL70 Tower Light; Black Housing: 4-Color Audible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: Bimodal; Colors: Green Yellow Blue Red; 8-pin M12 Integral QD

Banner

XVC4M55S

Schneider Electric XVC4M55S is a pre-assembled and pre-cabled flashing tower light with a diameter of 40mm, featuring a buzzer that can emit both continuous and intermittent tones. This monolithic tower light is part of the XVC4 sub-range and is designed for both horizontal and vertical mounting. It offers a 5-tier lighting system with the capability to display steady or flashing lights in red, orange, green, blue, and clear (ROGBC) colors. The XVC4M55S operates on a control voltage of 100-240 Vac and has a supply voltage range of 100-240 V AC. It is cylindrical in shape and provides a degree of protection rated at IP54 for general use and IP23 when mounted on a vertical surface.

Schneider Electric

TL50HYRALS2CP-19821

TL50H Tower Light Micro-based, Gray Housing: 2-Color Flash and Sealed Pulsed (0.5Hz) Loud Audible Indicator; Voltage: 18-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Yellow Red; 0.8 m (32 in) Integral Cable

Banner

TL50WGYCQ8

TL50 Tower Light, Gray Housing: 3-Color Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: White Green Yellow; 8-pin M12 Integral QD

Banner

TL50BLZGR2B1AOS3

Banner Engineering TL50BLZGR2B1AOS3 is a monolithic tower light from the Universal Voltage series, featuring a 1.6Hz pulsed sound and a 3-tier, 3-color (Green, Red, Blue) LED illumination pattern. This sealed omni-directional audible tower/stack light is constructed with polycarbonate windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm diameter and comes pre-wired with a 2m long, 5-wire cable terminated with bare end flying leads for easy installation. The housing is black, and it operates on a supply voltage of 100Vac to 240Vac (120Vac/220Vac/230Vac; 50Hz/60Hz), suitable for a wide range of applications. It can be mounted via surface or base pole with an M30 thread. Designed to function in ambient air temperatures ranging from -20°C to +50°C, it offers a high degree of protection with an IP67 NEMA 13 rating. The shape is cylindrical, and it has a current consumption of 55mA. For control, it features 3 digital inputs for color control and 1 digital input for alarm input, all accommodating 100-240Vac.

Banner

LS7-302DBWC-RYGNN+FB207

Continuous light, direct mount, 8-pin M12 connector, Buzzer IP65, Non-buzzer IP66 & 67, 4-hole mount. Dark gray body. Custom LED color configurations are available on order with special prices, quantities and lead time- please inquire with Patlite.

Patlite

LR6-102WCBW-Y

60mm diameter UL CE IP65 24V DC, 1/2" NPT socket and M30 external threads, M12 QD, Flashing/Buzzer, Off-white body, LED Unit: Amber

Patlite

LR5-102PJBW-G

50mm diameter UL CE IP65 24V DC, Pole Mount/Cable, Flashing/Buzzer, Off-white

Patlite

LKEH-312FE-RYB+FC014

LED Light and Horn, 32 pre-recorded sounds. Red, Amber, Blue LED.

Patlite

TL70YB2R2GQ

Banner Engineering TL70YB2R2GQ is a modular tower light designed for signaling and visualization in industrial environments. This part of the Modular series features a 4-tier design with a 4-color Y+B2+R2+G LED illumination pattern. The tower light is constructed with polycarbonate windows and segments, along with a polycarbonate housing, ensuring durability. It has a diameter of 70mm / 2-3/4" and comes pre-equipped with a 5-pin M12 Euro-style QD connector for easy installation. The housing color is black, and it operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc being nominal. It supports surface or base pole mounting with an M30 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. The TL70YB2R2GQ offers an IP65 degree of protection against dust and water ingress, has a cylindrical shape, and consumes 420mA of current. It also features 4 digital inputs (12-30Vdc; PNP/NPN) for color control.

Banner

TL50CGYRCQ

Banner Engineering TL50CGYRCQ is a monolithic tower light from the Compact series, featuring a 3-tier, 3-color (Green, Yellow, Red) LED illumination pattern. This compact tower or stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm / 2" diameter and is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The housing is gray, and it operates on a supply voltage of 24Vac or a DC range of 18Vdc to 30Vdc (24Vdc nominal). Designed for versatile mounting, it supports surface or base pole mounting with an M30 thread. The TL50CGYRCQ can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating. Its cylindrical shape is designed for straightforward integration into various applications, and it has a current consumption of 135mA. Additionally, it features 3 digital inputs (18-30Vdc / 24Vac; PNP/NPN) for color control, enhancing its functionality in automation environments.

Banner

TL50GBRA

TL50 Tower Light: 3-Color Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP50; Input: Bimodal; Colors: Green Blue Red; 2 m (6.5 ft) Integral Cable

Banner

LR6-102PJNU-C

60mm diameter UL CE IP65 24V DC, Pole Mount/Cable, No Flashing/Buzzer, Silver

Patlite

TL50BGYRALSQ

TL50 Tower Light: 4-Color Sealed Loud Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Blue Green Yellow Red; M12 Integral QD

Banner

TL50C10AKQ

TL50 Pro Tower Light with IO-Link Audible, Compact Black Housing: 10 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Integral QD

Banner

TL50BLGYR-86614

Beacon Tower Light: 3-Color Indicator; Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Green Yellow Red; Deutsch 4-pin 220 mm (8.7 in) Pigtail QD; Mounted on standpipe

Banner

WLS27XR850DSQ

WLS27 Work Light Strip; Diffused Window; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Red; 4-pin M12 Integral QD

Banner
