Signal Towers

TL70ROGQ

Banner Engineering TL70ROGQ is a modular tower light designed for signaling applications, featuring a 3-tier, 3-color (Red, Orange, Green) LED illumination pattern. This part of the Modular series has a cylindrical shape with a diameter of 70mm (2-3/4 inches) and is constructed with polycarbonate windows, segments, and housing in black. It is equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for connectivity and supports a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The TL70ROGQ offers surface or base pole mounting options using an M30 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. It features an IP65 degree of protection, ensuring durability in various environmental conditions. Additionally, it includes 3 digital inputs (12-30Vdc; PNP/NPN) for color control.

Banner

LS7-502DBWC-RYGBC+FB207

Continuous light, direct mount, 8-pin M12 connector, Buzzer IP65, Non-buzzer IP66 & 67, 4-hole mount. Dark gray body. Custom LED color configurations are available on order with special prices, quantities and lead time- please inquire with Patlite.

Patlite

WME-102D-R

1-tier Wall mount signal tower, 24V DC, continuous only, no flashing, no alarm.  Off-white body.  LED module:  Red

Patlite

TL501AOSIKQ

TL50 Pro Tower Light with IO-Link Sealed Omnidirectional Audible with Volume Adjust, Standard Black Housing: 1 Lighted Segment; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Integral QD

Banner

TL70BOGRALQ

Banner Engineering TL70BOGRALQ

Banner

TL50P4AOSICQP

TL50 Pro Tower Light with Sealed Omnidirectional Audible Indicator w/ Intensity Adjust, Gray Housing: 4 Lighted Segments; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Banner

TL70BGYRALCQ

TL70 Tower Light, Gray Housing: 4-Color Loud Audible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: Bimodal; Colors: Blue Green Yellow Red; 8-pin M12 Integral QD

Banner

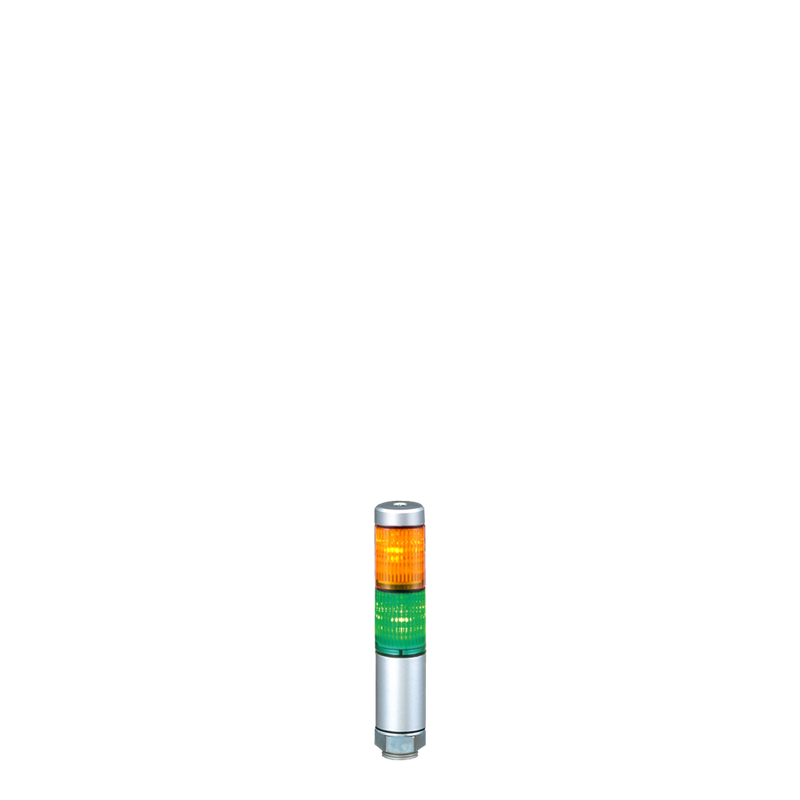

MPS-202-YG

30mm 2-Tier LED Signal Tower, 24V AC/DC, Direct Mount, Short Silver Body, LED: Amber, Green

Patlite

TL50HGBYAOS

Banner Engineering TL50HGBYAOS is a tower light from the Core high-intensity series, featuring a monolithic design with continuous sound and 3-tiers 3-color G+B+Y color pattern LED illumination. It is constructed with polycarbonate (PC) windows and segments, and ABS base and covers, ensuring durability. This model has a diameter of 50mm / 2 inches and comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for easy installation. The housing is black, and it operates on a supply voltage of 24Vac or 18Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options, including surface or base pole with an M30 thread. Designed for a wide range of operating temperatures from -20°C to +50°C, it boasts an IP67, NEMA 13, UL type 13 degree of protection, making it suitable for challenging environments. The shape is cylindrical, with a current consumption of 100mA. It includes 3 x digital inputs for color control and 1 x digital input for alarm input, both supporting 18-30Vdc / 24Vac; PNP/NPN.

Banner

WLS27CY850DSQ-93355

WLS27 Work Light Strip; Diffused Window; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Yellow; Cascadable; 4-pin M12 Integral QD; Lowered power

Banner

TL50HGRBAOSQ

Banner Engineering TL50HGRBAOSQ is a tower light from the Core high-intensity series featuring a monolithic design with continuous sound and 3-tiers 3-color G+R+B color pattern LED illumination. This sealed omni-directional audible high-brightness tower/stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a diameter of 50mm / 2 inches and comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is black, and it supports a supply voltage of 24Vac and a DC range of 18Vdc-30Vdc (24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it operates within an ambient air temperature range of -20°C to +50°C. This product offers a degree of protection rated at IP67, NEMA 13, UL type 13, and has a cylindrical shape. It consumes 100mA of current and includes 3 x digital inputs for color control and 1 x digital input for alarm input, all supporting 18-30Vdc / 24Vac; PNP/NPN.

Banner

TL70RGRQ

TL70 Tower Light; Black Housing: 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: Bimodal; Colors: Red Green Red; 5-pin M12 Integral QD

Banner

TL50GYRACQP

Banner Engineering TL50GYRACQP is a tower light from the Core series featuring a monolithic design with continuous sound and 3-tiers 3-color G+Y+R color pattern LED illumination. It functions as an audible tower or stack light, constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. This product has a diameter of 50mm / 2 inches and comes pre-wired with a 6-inch / 15cm pigtail terminated with a 5-pin M12 Euro-style QD connector. The housing color is gray, and it supports a supply voltage of 24Vac and a DC range of 18Vdc-30Vdc (24Vdc nominal). It offers surface or base pole mounting with an M30 thread and can operate in ambient air temperatures ranging from -20°C to +50°C. The TL50GYRACQP is rated with a degree of protection of IP50 NEMA 13 UL type 13, has a cylindrical shape, and consumes 45mA of current. It includes 3 x digital inputs for color control and 1 x digital input for alarm, all supporting 18-30Vdc / 24Vac; PNP/NPN.

Banner

LR6-102WCBW-B

60mm diameter UL CE IP65 24V DC, 1/2" NPT socket and M30 external threads, M12 QD, Flashing/Buzzer, Off-white body, LED Unit: Blue

Patlite

TL50YALSQP-809768

TL50 Tower Light: 1-Color Sealed Loud Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67; Input: Bimodal; Colors: Yellow; 150 mm (6 in) 4-pin M12 PVC Pigtail QD; Yellow and Alarm tied together

Banner

TL15A1Q

Banner TL15A1Q - TL15 Series: In-Line Audible Segment; Voltage: 12-30 V dc; Housing: PVC; IP67; Input: PNP; Audible: Pin 1; Male-Female 5-pin M12 Integral QD

Banner

TL50PBL2AOS

TL50 Pro Tower Light with Sealed Omnidirectional Audible, Beacon Black Housing: 2 Lighted Segments; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 2 m (6.5 ft) Integral Cable

Banner

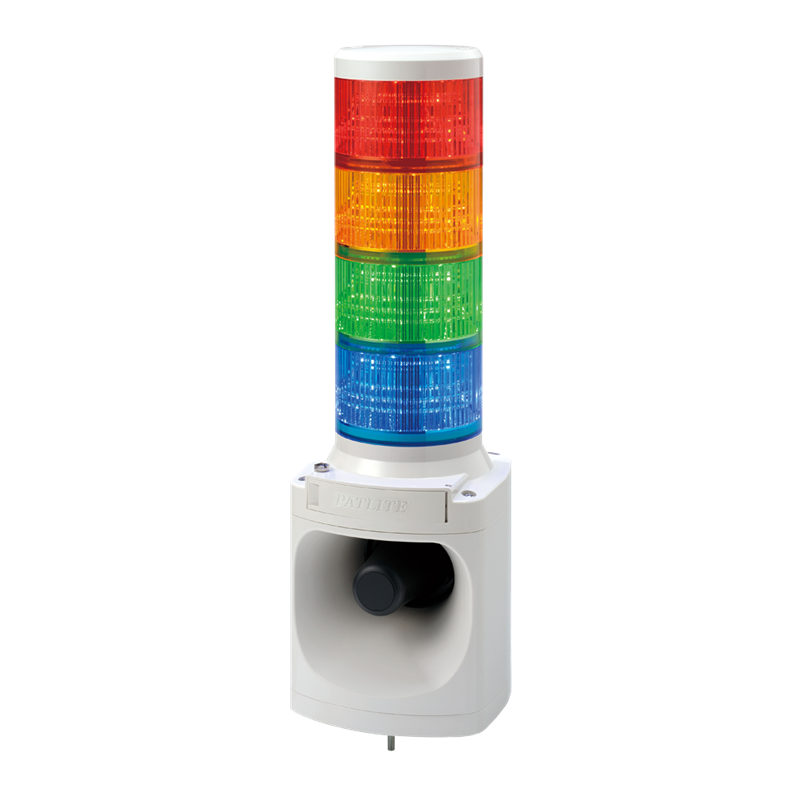

LKEH-412FV-RYGB-FV011

Combination Alarm with 4-tier Signal Tower and 105dB Horn, Programmable MP3 Alarms, 120V AC, Red, Amber, Green and Blue LED Modules

Patlite

TL70ZBGYRA

TL70 Tower Light, Black Housing: 4-Color Audible Indicator; Voltage: 100-240 V ac; Environmental Rating: IP65; Colors: Blue Green Yellow Red; Supports 1-6 Modules; 2 m (6.5 ft) Integral Cable

Banner

TL70GRYWAQ

Banner Engineering TL70GRYWAQ is a tower light from the Modular series, designed with a multitone 4-tiers 4-color G+R+Y+W (Green, Red, Yellow, White) color pattern LED illumination. It features audible tower or stack light functions and is constructed with polycarbonate (PC) windows, segments, and housing. This model has a diameter of 70mm / 2-3/4" and comes pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The housing color is black, and it operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. It offers a surface or base pole mounting mode with an M30 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. The TL70GRYWAQ is IP65 rated for protection and has a cylindrical shape. Its current consumption is 420mA, and it includes 4 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital input (12-30Vdc; PNP/NPN) for alarm input.

Banner
