Signal Beacons

800626405

Sprecher + Schuh 800626405 - IDS M22 panel mount LED multi colour beacon 24 V AC/DC clear, black

Sprecher + Schuh

910026405

Sprecher + Schuh 910026405 - PC7DF LED multifunctional module 24 V AC/DC green, black

Sprecher + Schuh

S18LOXXPQ

S18 EZ-LIGHT - 18 mm - IP67; Single Color: Orange; 10-30 V dc PNP Input; 4-pin M12 QD

Banner

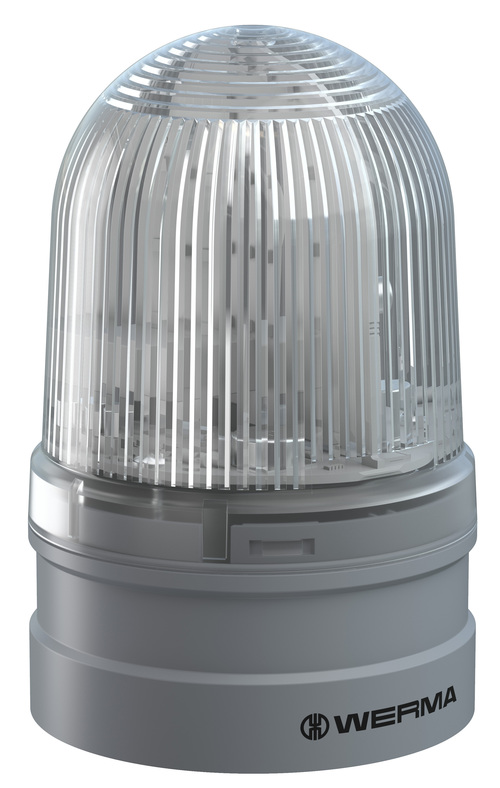

261.430.70

Midi TriColour 12/24VAC/DC RD/YE/GN

Werma

TL50BLZG2Y2R2ALS4C

Banner Engineering TL50BLZG2Y2R2ALS4C

Banner

TL70ZRAP

Banner Engineering TL70ZRAP is a beacon from the Modular Universal Voltage Series, featuring a 1-tier 1-color red LED illumination designed for signaling applications. This programmable audible beacon light supports WAV/MP3 formats, ensuring customizable alerts. It is constructed with polycarbonate (PC) windows, segments, and housing, ensuring durability. The beacon has a diameter of 70mm / 2-3/4" and comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for easy installation. The housing color is black, and it operates on a supply voltage of 100Vac-240Vac (120Vac / 220Vac / 230Vac), making it versatile for various electrical systems. It offers surface or base pole M30 thread mounting options, and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. With an IP65 degree of protection, this cylindrical beacon is safeguarded against dust and low-pressure water jets from any direction. It also features 1 x digital input for color control and 1 x digital input for alarm input, both supporting 100-240Vac.

Banner

SF10-M1JN-B

100mm, Multi-function Signal Beacon, Blue, 12-24V DC

Patlite

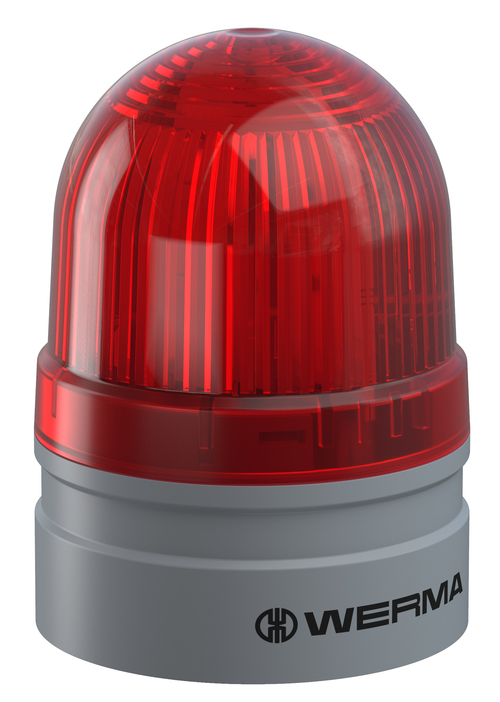

260.120.60

Mini TwinFLASH 115-230VAC RD

Werma

TL50BLZR2AOS4I

Banner Engineering TL50BLZR2AOS4I is a beacon from the Universal voltage beacon series, featuring a 1-tier, 1-color red flashing LED illumination with an adjustable intensity staccato sound design for audible alerts. This sealed omni-directional beacon light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. It has a 50mm / 2" diameter and is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. The black housing beacon operates on a supply voltage of 100Vac-240Vac (120Vac / 220Vac / 230Vac; 50Hz/60Hz), suitable for a wide range of applications. It offers flexible mounting options, including surface or base pole with an M30 thread. Designed to operate in ambient air temperatures ranging from -20°C to +50°C, it boasts an IP67 and NEMA 13 degree of protection for reliable performance in various environments. The cylindrical beacon has a current consumption of 55mA and includes 1 x digital input for color control and 1 x digital input for alarm input, both supporting 100Vac-240Vac.

Banner

S18LRXXPQ

S18 EZ-LIGHT - 18 mm - IP67; Single Color: Red; 10-30 V dc PNP Input; 4-pin M12 QD

Banner

S18DLHGQ

S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: Green; Input: PNP; 4-pin M12 Integral QD

Banner

K50LDGXXA230-808261

Banner Engineering K50LDGXXA230-808261, part of the EZ-LIGHT series, is a pilot light designed for clear visibility with its daylight-visible 2-color G/R color pattern LED illumination. This unit features a black housing with a round shape, excluding a window, and is constructed with a polycarbonate (PC) diffused window and PC base for durability. It is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector, facilitating easy and secure connections. The pilot light operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on the surface, base, or pole flush using an M30 thread in a 30mm hole. With a body diameter of 50mm / 2", it is designed to operate within an ambient air temperature range of -40°C to +50°C. This model boasts an IP67 degree of protection, ensuring it is dust-tight and can withstand temporary immersion in water. It consumes 80mA of current and includes 2 x digital inputs (12-30Vdc; PNP) for color control.

Banner

S18LGRBPQP

S18 EZ-LIGHT - 18 mm - IP67; Three Color: Green Red Blue; 10-30 V dc PNP Input; 150 mm (6 in) 4-pin M12 Pigtail QD

Banner

S18DLGRXPQP

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 6 in 4-pin M12 Pigtail QD

Banner

RT-120E-B+FC015

Rotating warning light with 8-channel alarm with 32 pre-programmed sounds. Blue

Patlite

760005313

Sprecher + Schuh 760005313 - VLB Flashing beacon module 230-240 V AC blue

Sprecher + Schuh

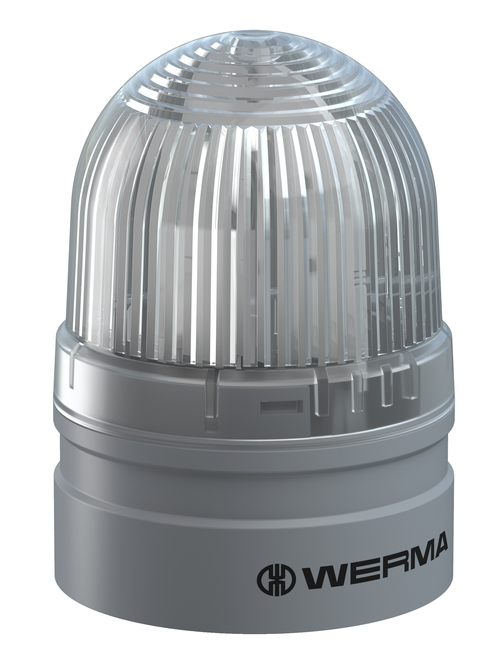

260.410.74

Mini TwinLIGHT 12VAC/DC CL

Werma

SL15-M1KTN-Y

150mm, Flashing Signal Beacon, 12-24V DC, 2-Screw Mount with Terminal Block, Amber

Patlite

TL50BLR2ALS3Q

Banner Engineering TL50BLR2ALS3Q is a beacon from the Beacon series featuring a 1.6Hz pulsed loud sound and 1-tier 1-color Red flashing LED illumination. It is designed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. This beacon has a diameter of 50mm / 2" and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 24Vac or 18Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options including surface or base pole with an M30 thread. The beacon operates efficiently in ambient air temperatures ranging from -20°C to +50°C and is protected by an IP67 NEMA 13 rating, indicating a high degree of protection against dust and water. Its cylindrical shape is complemented by a current consumption of 125mA. Additionally, it features 1 x digital input for color control and 1 x digital input for alarm input, both supporting 18-30Vdc / 24Vac; PNP/NPN.

Banner

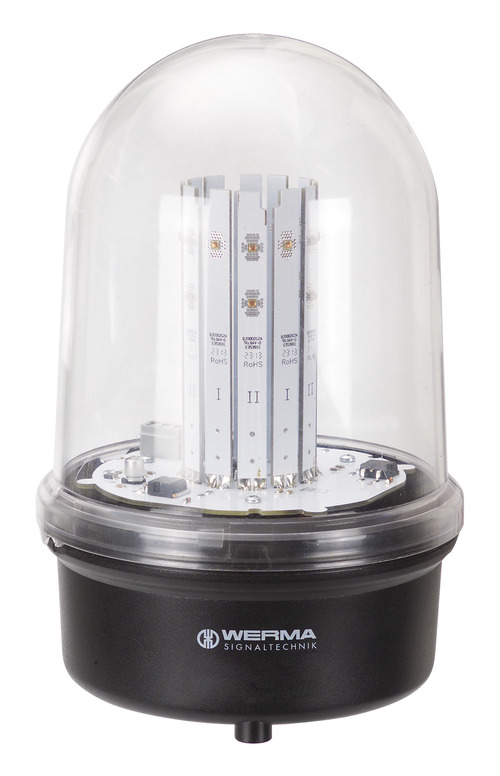

280.470.55

LED Obstruction light BM 24VDC RD

Werma
