Pushbuttons

A22NL-BGM-TGA-G002-GC

Omron A22NL-BGM-TGA-G002-GC - Assm, FG,Plas Bzl, Gren, 1 NC

Omron

XB7NH81

Schneider Electric XB7NH81 is a monolithic flush push-button designed for various automation applications. This part of the XB7 sub-range features a plastic body with a round shape and offers a degree of protection rated at IP65, NEMA 3, and NEMA 12, ensuring its suitability for use in environments requiring dust and water resistance. It has a mechanical durability of 300,000 operations at no load and comes with 1 Normally Open (NO) auxiliary contact. The push-button has a diameter of 22 mm, a net height of 29 mm, a net depth of 51.5 mm, and a net width of 29 mm. It is designed to withstand a rated impulse voltage (Uimp) of 4 kV. For protection, it includes short-circuit protection by a 4A gG cartridge fuse. The control circuit's rated current is 0.6 A at 120Vac (AC-14), 0.3 A at 240Vac (AC-14), 0.22 A at 125Vdc (DC-13), and 0.1 A at 250Vdc (DC-13). It features screw-clamp type terminals and supports a push-to-release stay-put (maintained/latched) operating mode.

Schneider Electric

A22NN-BNM-NRA-G100-NN

Omron A22NN-BNM-NRA-G100-NN - Assm, Flt, Plas Bzl, Red, 1NO

Omron

D7M-LF6PN5WX10

Sprecher + Schuh D7M-LF6PN5WX10 - D7 22mm Push Button, Illuminated, Metal, Flush Momentary, Blue, 120V AC Clear LED, Plastic Latch, 1NO Standard, UL Type 4/13, IP66

Sprecher + Schuh

A16LTRMT22S

Omron A16LTRMT22S - PB Scrwless Clp 220VAC DPDT

Omron

A22NN-MGM-NAA-G002-NN

Omron A22NN-MGM-NAA-G002-NN - Assm, FG, BM Bzl, Blue, 1 NC

Omron

D7M-FA9

Sprecher + Schuh D7M-FA9 - D7 22mm Push Button, Non-Illuminated, Metal, Flush Maintained, No Cap, Operator Only, UL Type 4/13, IP66

Sprecher + Schuh

XB6EDV5JP

Schneider Electric XB6EDV5JP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component is part of the XB6 range and features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for easy installation and has a rectangular shape. With an IP65 degree of protection, it is well-suited for use in areas where dust and water resistance are necessary. The pilot light has a diameter of 16 mm and operates at a supply voltage of 12 V DC. It emits a yellow light and is equipped with fast-on (insulated) and solder pins terminals for versatile connection options.

Schneider Electric

A22NZ-3MM-01CA

Omron A22NZ-3MM-01CA - 3 POS Key Right Brushed

Omron

D7M-F110MX10

Sprecher + Schuh D7M-F110MX10 - D7 22mm Push Button, Non-Illuminated, Metal, Flush Momentary, White REVERSE, Metal Latch, 1NO Standard, UL Type 4/13, IP66

Sprecher + Schuh

9001SKR8P35LGGH25

Schneider Electric 9001SKR8P35LGGH25 is an illuminated mushroom corrosion-resistant push-button with a screw-in head, belonging to the 9001SK sub-range. This push-button is designed with a plastic material and has a round shape. It features a rated impulse voltage (Uimp) of 2.5 kV and offers chemical resistance against corrosion. The degree of protection provided includes IP66, NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. The dimensions of the mushroom head are 30 mm in diameter and 40 mm, with an additional measurement provided in inches: 1.18 in for the mushroom head and 1-5/8" / 1.625 in. It operates with a supply voltage of 24 V, both AC and DC, and has 2 Normally Closed (NC) auxiliary contacts. The rated operating voltage (Ue) is 600 V, and the light color is green. The control circuit rated current is (Ith) 10 A at 240Vac (AC-15), 3 A at 125Vdc (DC-13), and 0.55 A. It features screw-clamp type terminals and operates in a 3-position spring-return (impulse/momentary) mode.

Schneider Electric

CSW30-SS2PBS

WEG CSW30-SS2PBS - PUSHBUTTON STATION CSW30-SS2PBS, Pushbuttons 30mm

WEG

A22NN-BNA-NWA-G202-NN

Omron A22NN-BNA-NWA-G202-NN - Assm, Flt, Plas Bzl, Whte, 2 N

Omron

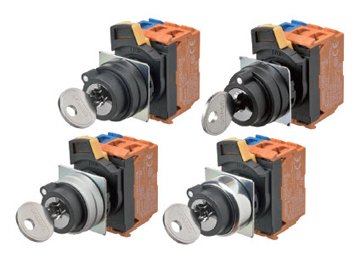

A22NK-3MM-01DA-G202

A22NK - 22 mm Keyed Selector Switch

Omron

D7D-F111X01

Sprecher + Schuh D7D-F111X01 - D7D 22mm Push Button, Non-Illuminated, Monolithic, Flush Momentary, White R, 1NC Standard, UL Type 4/4X/13, IP66

Sprecher + Schuh

D7P-MM42PX11

Sprecher + Schuh D7P-MM42PX11 - D7 22mm Push Button, Non-Illuminated, Plastic, Mushroom Momentary 40mm, Black, Plastic Latch, 1NO 1NC Standard, UL Type 4/4X/13, IP66

Sprecher + Schuh

A3PA-90D11-24AO

Omron A3PA-90D11-24AO - Lighted PB,Orange,Sq.24V

Omron

D7P-U3F3F34PX21

Sprecher + Schuh D7P-U3F3F34PX21 - D7 22mm Multifuction, Non-Illuminated, Plastic, 3 Position Flush Flush, Green Red Green, Plastic Latch, 2NO 1NC Standard, UL Type 4/4X, IP66

Sprecher + Schuh

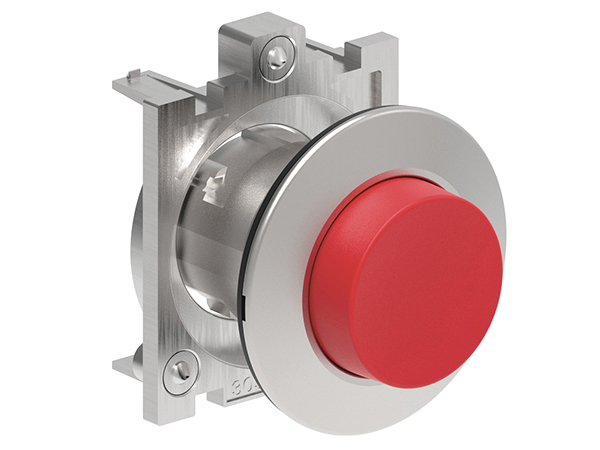

LPFQ204

LPFQ204 Lovato - Push-Push button actuator dia: 30mm Platinum series flat metal, extended. Push ON-Push OFF, red

Lovato Electric

A22NL-MPM-TWA-G002-WC

Omron A22NL-MPM-TWA-G002-WC - Assm, Prj, BM Bzl, Whte, 1 NC

Omron
